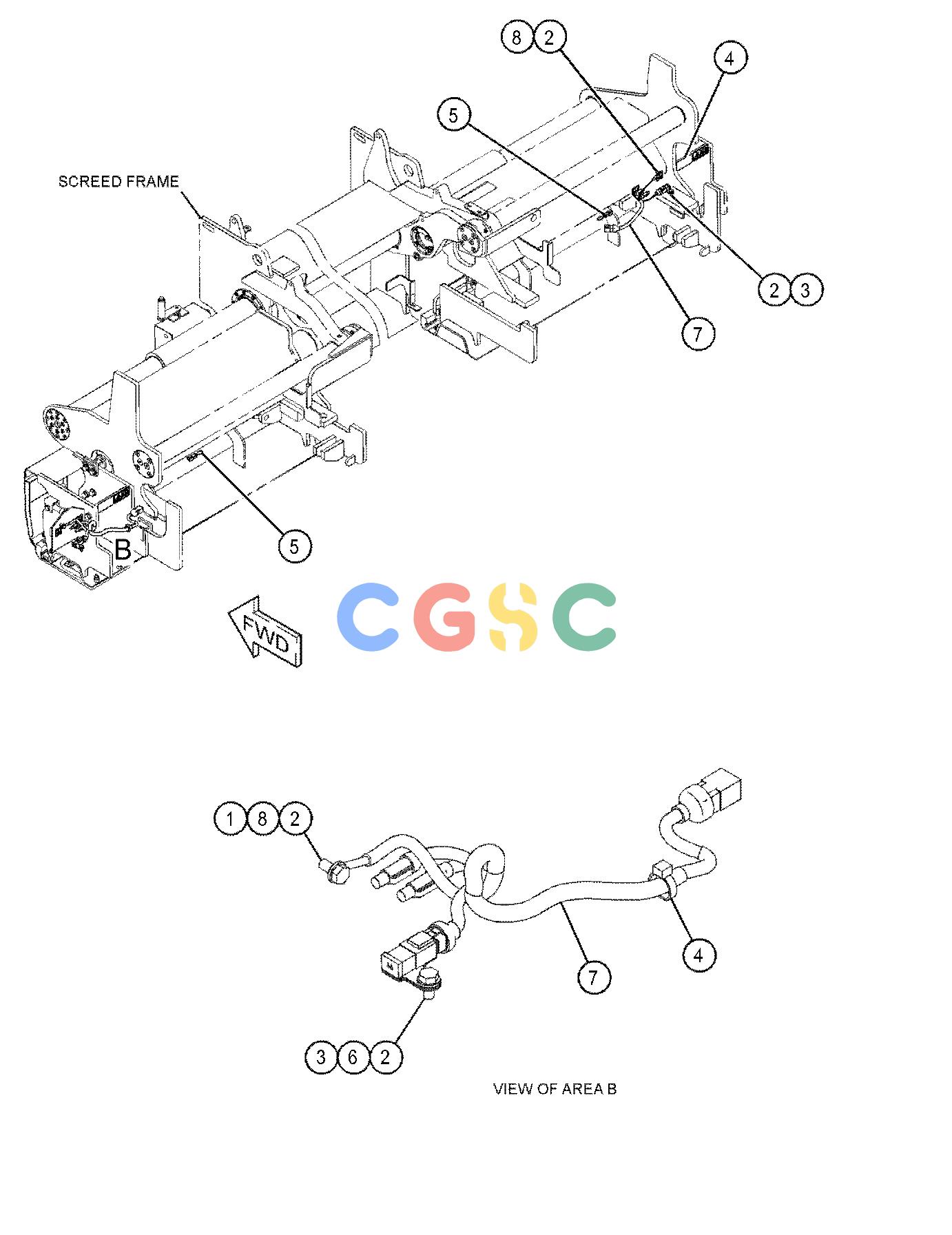

卡特零件查询（AP-655D） 359-1029: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4D-1326 | [2] | LOCKWASHER(EXTERNAL TOOTH) | |
| 2. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 3. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 4. | 7K-1181 | [1] | STRAP-CABLE | |
| 5. | 352-0684 | [2] | RECEPTACLE AS | |
| | | | (EACH INCLUDES) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 6. | 130-5300 | [4] | CLIP | |
| 7. | 393-7441Y | [2] | HARNESS AS-HEATER | |
| 8. | 7P-1695 | [2] | WASHER(10.5X19X3-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
