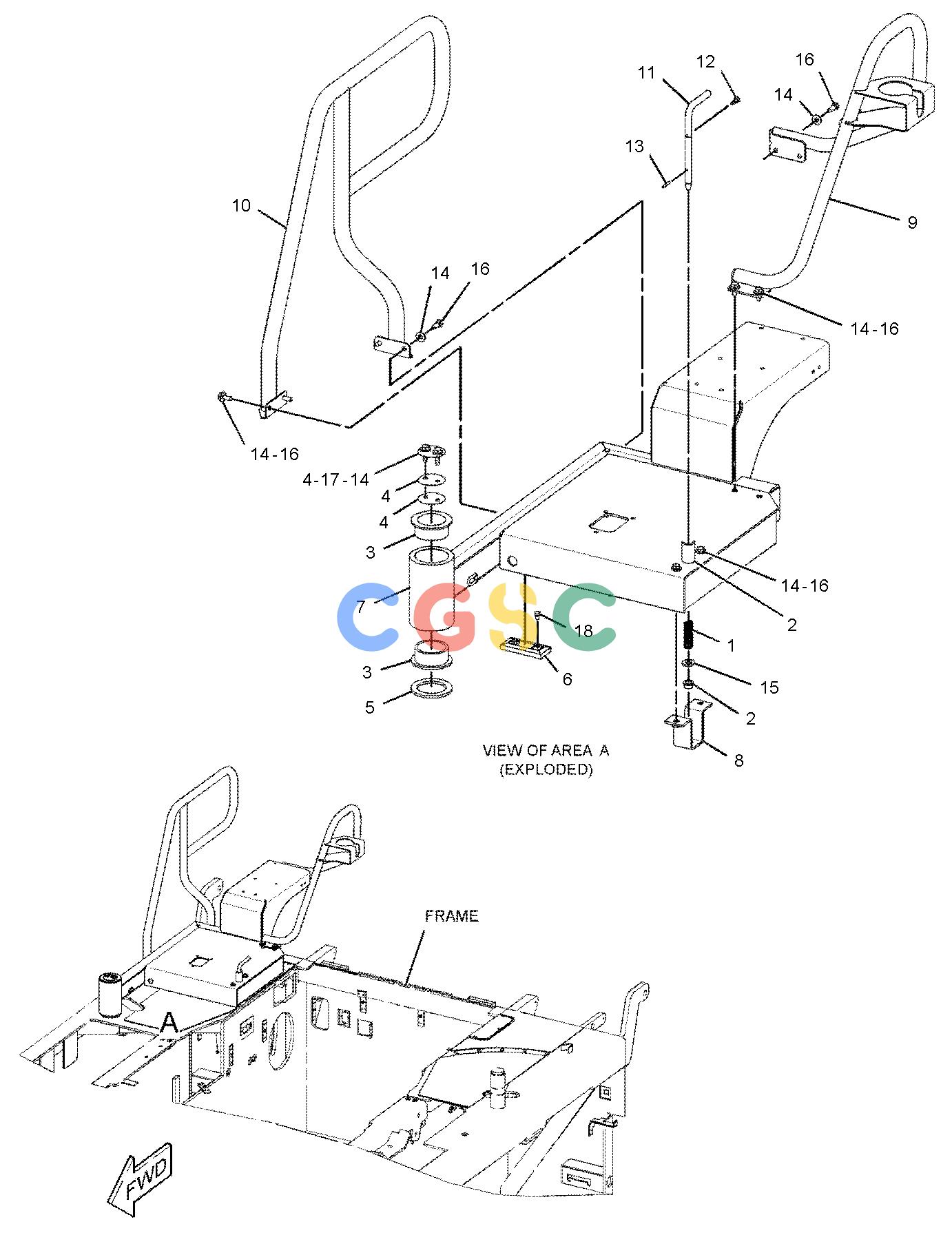

卡特零件查询（AP-655D） 269-2562: PLATFORM GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
796 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1U-5004 | [1] | SPRING | |
| 2. | 133-7864 | [2] | BUSHING | |
| 3. | 196-6791 | [2] | BEARING-FLANGE | |
| 4. | 196-6793B | [3] | SHIM(1-MM THK) | |
| 5. | 196-6794 | [1] | PLATE-SPACER | |
| 6. | 196-6798 | [1] | PAD | |
| 7. | 269-2563 | [1] | PLATFORM AS | |
| 8. | 271-1760 | [1] | PLATE AS | |
| 9. | 360-3529 | [1] | HANDRAIL AS(RH) | |
| 10. | 280-2821 | [1] | HANDRAIL AS(RH) | |
| 11. | 301-2253 | [1] | PIN | |
| 12. | 137-3626M | [1] | BOLT-SPECIAL(M6X1X23.25-MM) | |
| 13. | 1H-1200 | [1] | PIN-SPRING | |
| 14. | 7X-7729 | [12] | WASHER(11X25X3-MM THK) | |
| 15. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 16. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 17. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 18. | 8T-4199M | [2] | BOLT(M8X1.25X12-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
