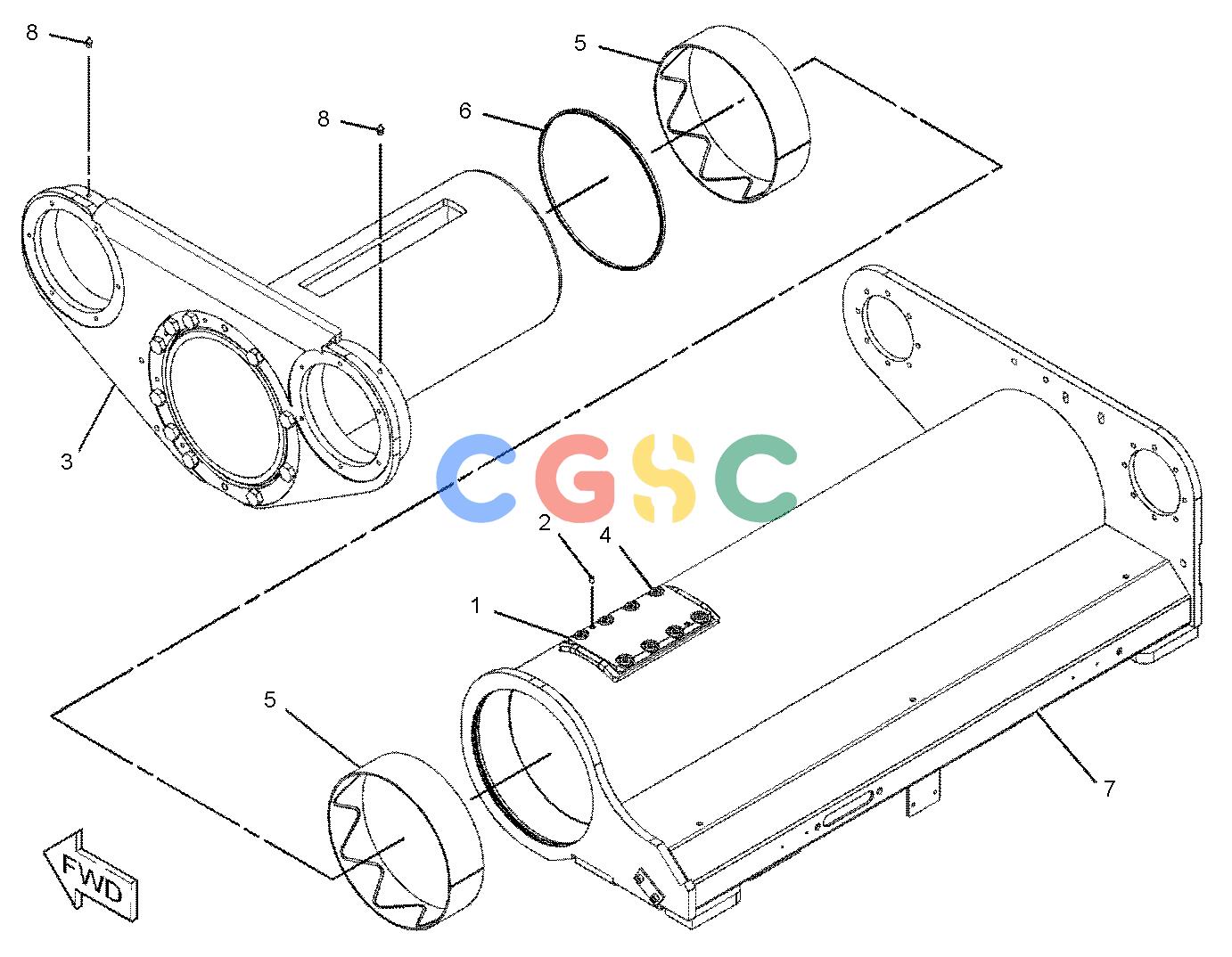

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 251-0834Y | [1] | PLATE GP-SCREED(SLIDING) | |
| 2. | 8I-4755 | [2] | DOWEL | |
| 3. | 269-5145Y | [1] | TUBE GP-EXTENSION(SLIDING) | |
| 4. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 5. | 276-5622 | [2] | BUSHING | |
| 6. | 276-5623 | [1] | SEAL | |
| 7. | 292-8810 | [1] | FRAME AS(RH-OUTER) | |
| 8. | 5W-2819 | [2] | FITTING-GREASE | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
