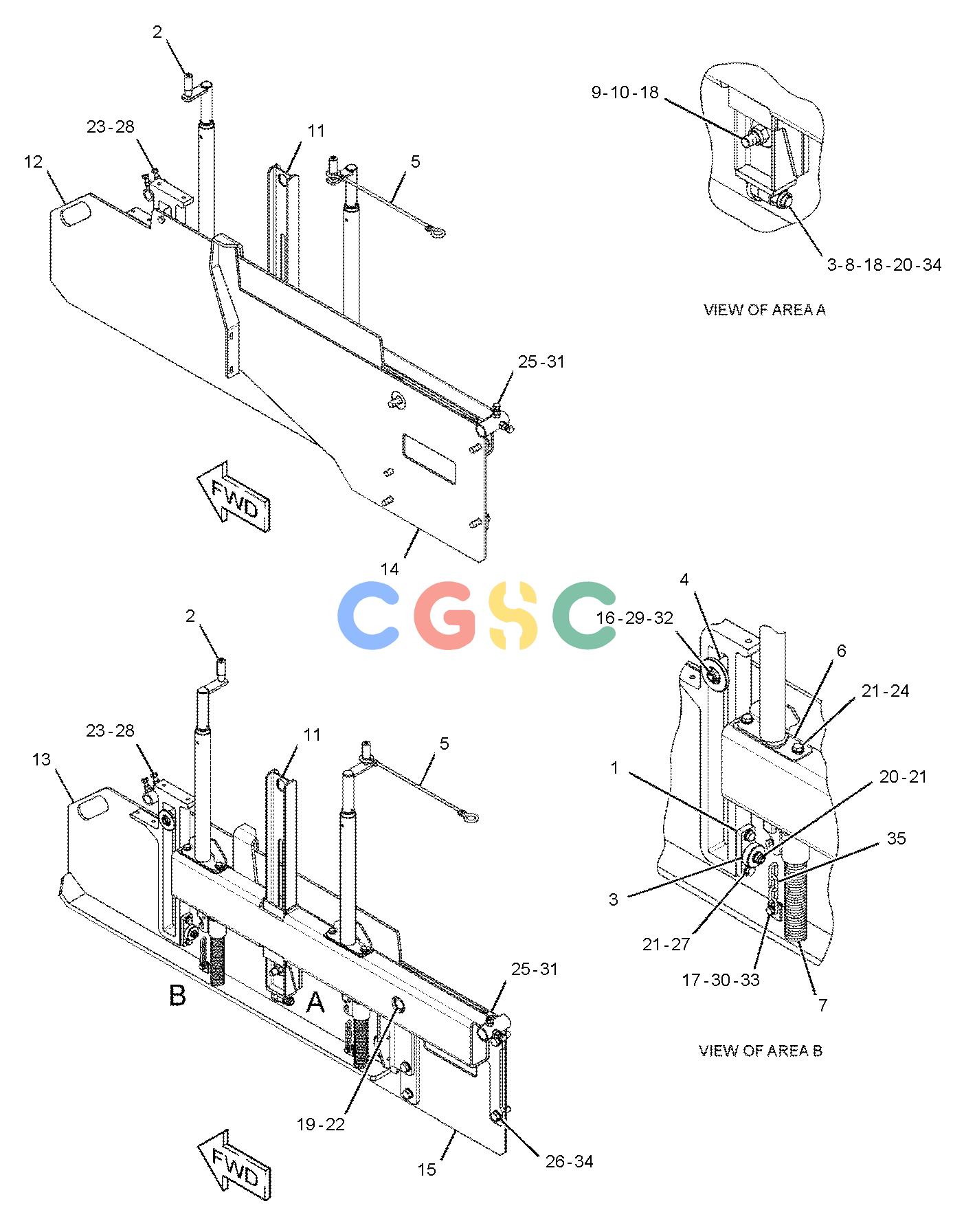

卡特零件查询（AP-655D） 311-4470: GATE GP-END
广数供应链运营团队, 17 02月, 2025，浏览：
1005 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-2728 | [4] | PIN AS | |
| 2. | 242-2785Y | [4] | ADJUSTER GP-MANUAL(GATE) | |
| 3. | 242-2843 | [6] | GROMMET | |
| 4. | 242-2844 | [2] | PIN AS | |
| 5. | 242-2867 | [2] | LANYARD | |
| 6. | 242-2913 | [8] | PLATE | |
| 7. | 275-2361 | [4] | SPRING | |
| 8. | 275-3926 | [2] | PIN-ECCENTRIC | |
| 9. | 275-3927 | [2] | STUD | |
| 10. | 275-3928 | [2] | WASHER(17X45X5-MM THK) | |
| 11. | 275-3929 | [2] | BEAM AS | |
| 12. | 276-5631 | [1] | GATE AS(RH) | |
| 13. | 276-5632 | [1] | GATE AS(LH) | |
| 14. | 311-4468 | [1] | SUPPORT AS(RH) | |
| 15. | 311-4469 | [1] | SUPPORT AS(LH) | |
| 16. | 129-3180M | [2] | LOCKNUT(M12X1.75-THD) | |
| 17. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 18. | 176-5311M | [4] | LOCKNUT(M16X2-THD) | |
| 19. | 7X-2566M | [2] | BOLT(M20X2.5X110-MM) | |
| 20. | 8T-0389M | [6] | LOCKNUT(M10X1.5-THD) | |
| 21. | 8T-4121 | [22] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4123 | [2] | WASHER(3.62X5.75X0.375-MM THK) | |
| 23. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 24. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 25. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 26. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| 27. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 28. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 29. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 32. | 8T-4648M | [2] | BOLT(M12X1.75X70-MM) | |
| 33. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 34. | 9X-8257 | [10] | WASHER(17.5X30X3.5-MM THK) | |
| 35. | 256-3561E | | CHAIN(50-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
