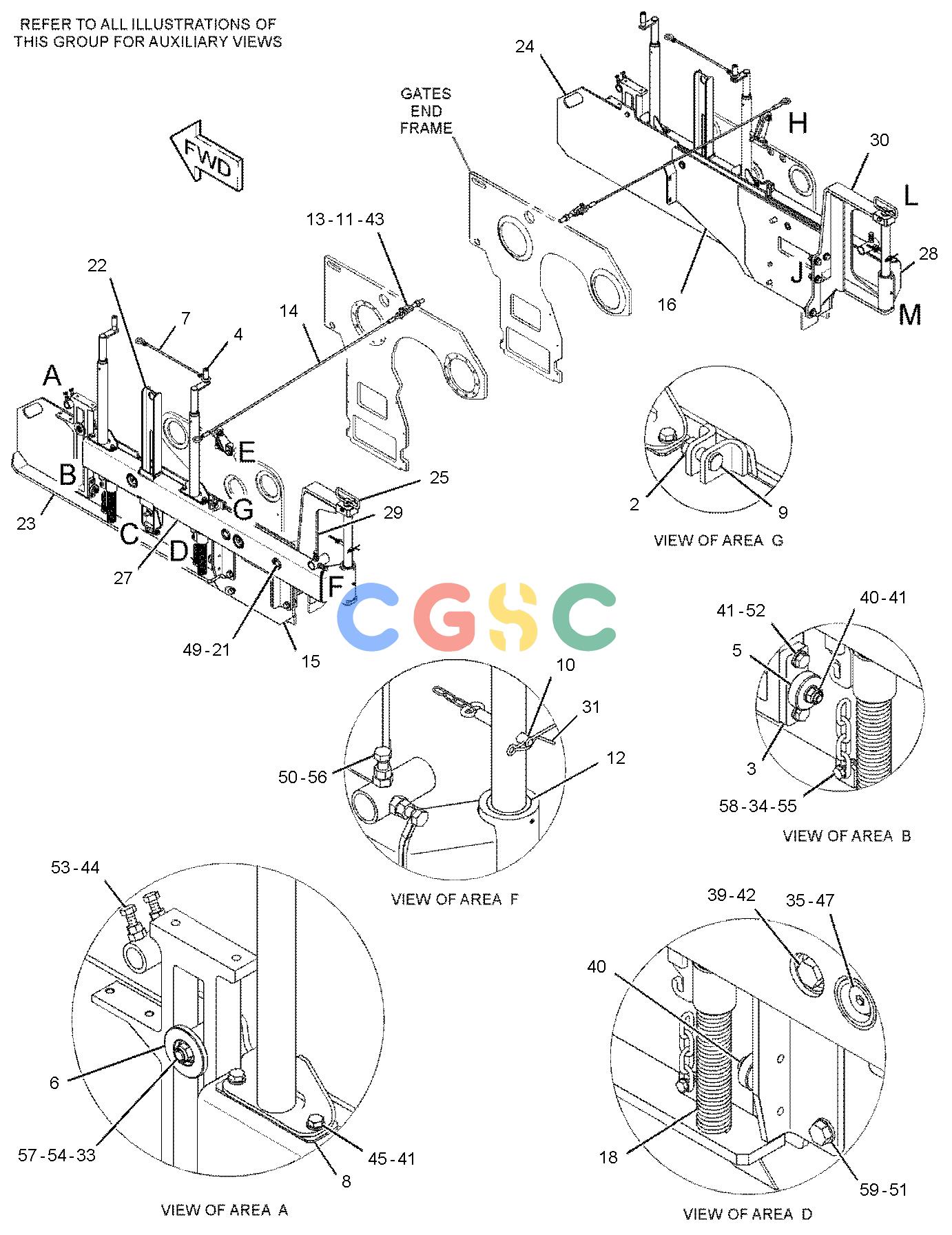

卡特零件查询（AP-655D） 311-4480: GATE GP-END
广数供应链运营团队, 17 02月, 2025，浏览：
178 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-8673M | [2] | LOCKNUT(M14X2-THD) | |
| 2. | 096-4876M | [2] | NUT(M14X2-THD) | |
| 3. | 242-2728 | [4] | PIN AS | |
| 4. | 242-2785Y | [4] | ADJUSTER GP-MANUAL(GATE) | |
| 5. | 242-2843 | [6] | GROMMET | |
| 6. | 242-2844 | [2] | PIN AS | |
| 7. | 242-2867 | [2] | LANYARD | |
| 8. | 242-2913 | [8] | PLATE | |
| 9. | 261-2021 | [4] | PIN | |
| 10. | 261-2022 | [2] | PIN | |
| 11. | 261-2028 | [2] | SUPPORT | |
| 12. | 263-0181 | [4] | BUSHING | |
| 13. | 279-1361 | [2] | CLAMP | |
| 14. | 320-2483 | [2] | CABLE | |
| 15. | 263-5136 | [1] | PLATE AS(LH) | |
| 16. | 263-5137 | [1] | PLATE AS(RH) | |
| 17. | 263-5144 | [2] | SUPPORT-PULLEY | |
| 18. | 275-2361 | [4] | SPRING | |
| 19. | 275-3926 | [2] | PIN-ECCENTRIC | |
| 20. | 275-3927 | [2] | STUD | |
| 21. | 275-3928 | [4] | WASHER(17X45X5-MM THK) | |
| 22. | 275-3929 | [2] | BEAM AS | |
| 23. | 276-5625 | [1] | GATE AS(LH) | |
| 24. | 276-5626 | [1] | GATE AS(RH) | |
| 25. | 288-9414 | [2] | PIN AS | |
| 26. | 300-0180 | [2] | PULLEY AS | |
| | | | (EACH INCLUDES) |
| | 263-1904 | [1] | BUSHING | |
| 27. | 311-4478 | [1] | ARM AS(LH) | |
| 28. | 311-4479 | [1] | ARM AS(RH) | |
| 29. | 315-3709 | [1] | SUPPORT AS(LH) | |
| 30. | 315-3710 | [1] | SUPPORT AS(RH) | |
| 31. | 086-0507 | [2] | PIN | |
| 32. | 096-3779M | [4] | SETSCREW-SOCKET(M6X1X10-MM) | |
| 33. | 129-3180M | [2] | LOCKNUT(M12X1.75-THD) | |
| 34. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 35. | 170-3524M | [4] | SCREW-FLAT HEAD | |
| 36. | 176-5311M | [4] | LOCKNUT(M16X2-THD) | |
| 37. | 5W-2819 | [2] | FITTING-GREASE | |
| 38. | 7X-0515 | [16] | WASHER-HARD(17X35X5-MM THK) | |
| 39. | 7X-2566M | [2] | BOLT(M20X2.5X110-MM) | |
| 40. | 8T-0389M | [6] | LOCKNUT(M10X1.5-THD) | |
| 41. | 8T-4121 | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 42. | 8T-4123 | [2] | WASHER(3.62X5.75X0.375-MM THK) | |
| 43. | 8T-4132M | [10] | NUT(M16X2-THD) | |
| 44. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 45. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 46. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 47. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 48. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| 49. | 8T-4173M | [2] | BOLT(M16X2X110-MM) | |
| 50. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 51. | 8T-4193M | [14] | BOLT(M16X2X50-MM) | |
| 52. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 53. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 54. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 55. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 56. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 57. | 8T-4648M | [2] | BOLT(M12X1.75X70-MM) | |
| 58. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 59. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
