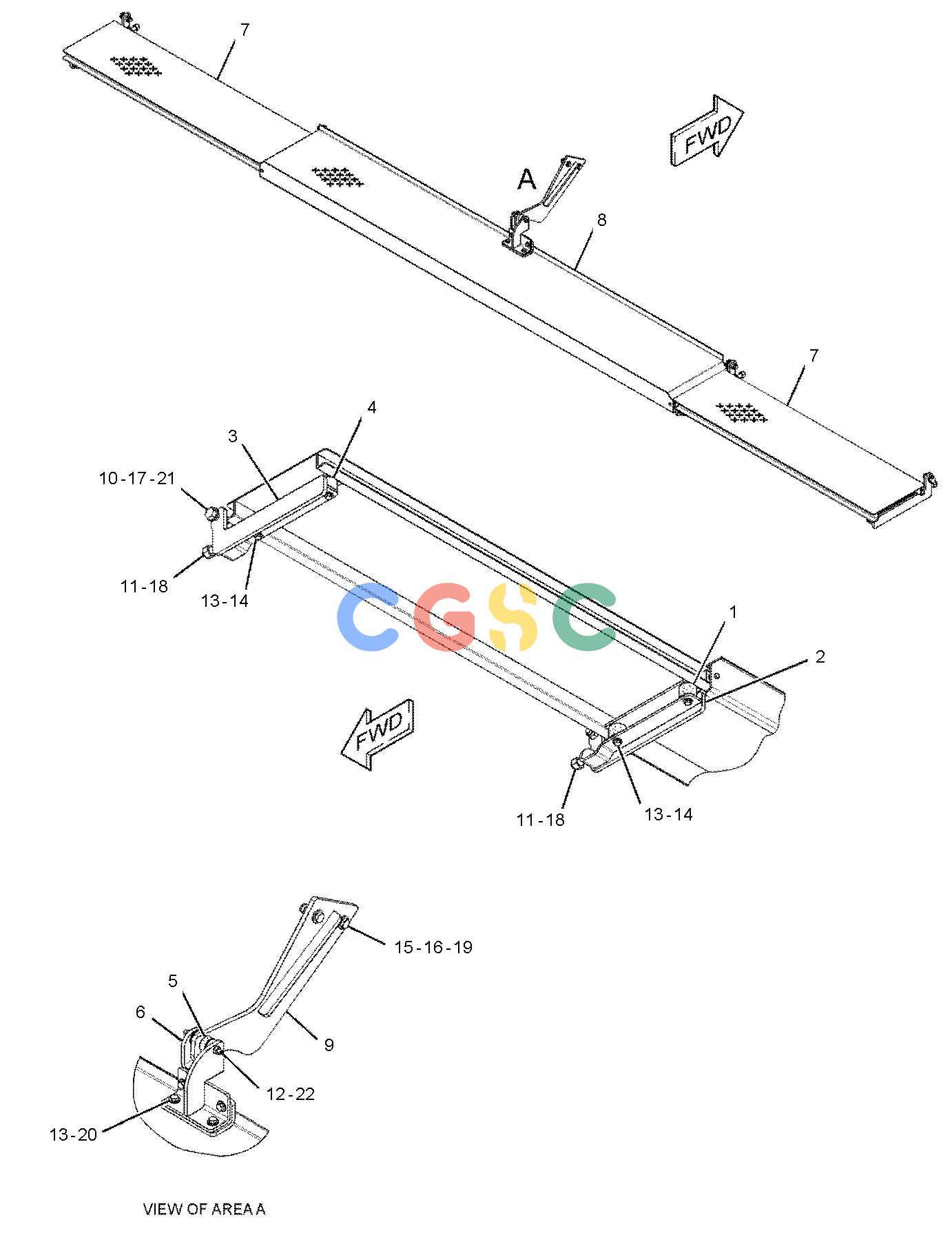

卡特零件查询（AP-655D） 315-3700: PLATFORM GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
923 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-2809 | [8] | DAMPER | |
| 2. | 320-2461 | [2] | SUPPORT AS(RH) | |
| 3. | 320-2462 | [2] | SUPPORT AS(LH) | |
| 4. | 257-5238 | [4] | PAD | |
| 5. | 257-5291 | [2] | DAMPER | |
| 6. | 272-4947 | [1] | CLAMP | |
| 7. | 272-4949 | [2] | PLATFORM AS(SLIDING) | |
| 8. | 315-3698 | [1] | WALKWAY AS | |
| 9. | 315-3699 | [1] | SUPPORT AS | |
| 10. | 176-5311M | [4] | LOCKNUT(M16X2-THD) | |
| 11. | 4I-0734M | [4] | SETSCREW-SOCKET(M16X2X45-MM) | |
| 12. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 13. | 5P-4116 | [20] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 7X-2536M | [16] | BOLT(M8X1.25X14-MM) | |
| 15. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 16. | 8T-0389M | [2] | LOCKNUT(M10X1.5-THD) | |
| 17. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 18. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 19. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 20. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 21. | 8T-7338M | [4] | BOLT(M16X2X45-MM) | |
| 22. | 8T-9532M | [2] | SETSCREW-SOCKET(M8X1.25-THD) | |
| | M | | METRIC PART |
