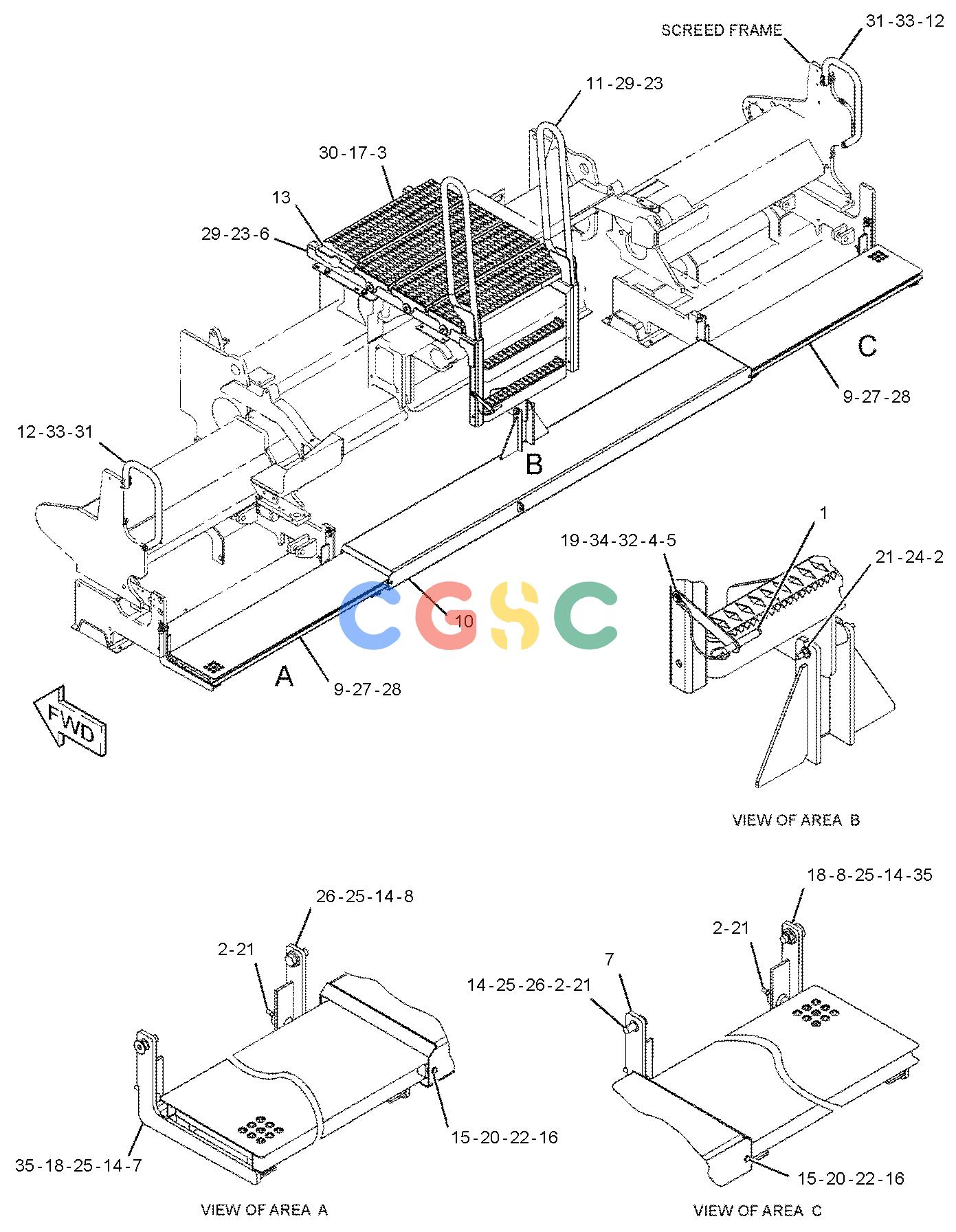

卡特零件查询（AP-655D） 350-5949: PLATFORM GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
494 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-9892 | [1] | PIN | |
| 2. | 138-7125 | [6] | BUMPER | |
| 3. | 256-8781 | [4] | WALKWAY AS | |
| 4. | 345-1251 | [1] | CABLE AS | |
| 5. | 350-5909 | [1] | LINK | |
| 6. | 350-5935 | [1] | SUPPORT AS(LH) | |
| 7. | 350-5950 | [2] | SUPPORT AS(LH) | |
| 8. | 350-5951 | [2] | SUPPORT AS(RH) | |
| 9. | 350-5952 | [2] | PLATFORM AS | |
| 10. | 350-5953 | [1] | WALKWAY AS | |
| 11. | 350-5955 | [1] | SUPPORT AS(RH) | |
| 12. | 356-1064 | [2] | HANDRAIL | |
| 13. | 365-4195 | [2] | STRIP | |
| 14. | 365-4540 | [4] | SPACER(17X25X10.75-MM THK) | |
| 15. | 386-0446 | [4] | PAD | |
| 16. | 386-6805 | [4] | PIN-CLEVIS | |
| 17. | 115-6433 | [4] | WASHER(11X50X6-MM THK) | |
| 18. | 159-2953M | [2] | SCREW-FLAT HEAD(M16X2-THD) | |
| 19. | 3B-4607 | [1] | PIN-COTTER | |
| 20. | 3L-5927 | [4] | RING-RETAINING | |
| 21. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 22. | 5C-8815 | [4] | WASHER(13X20X2.5-MM THK) | |
| 23. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 24. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 25. | 7X-0515 | [4] | WASHER-HARD(17X35X5-MM THK) | |
| 26. | 7X-2553M | [2] | BOLT(M16X2X40-MM) | |
| 27. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 28. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 29. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 30. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 31. | 8T-4194M | [6] | BOLT(M12X1.75X50-MM) | |
| 32. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 33. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 9K-6138 | [1] | PIN | |
| 35. | 9X-8244M | [2] | LOCKNUT(M16X2-THD) | |
| | M | | METRIC PART |
