卡特零件查询（AP-655D） 350-5927: COVER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
625 次

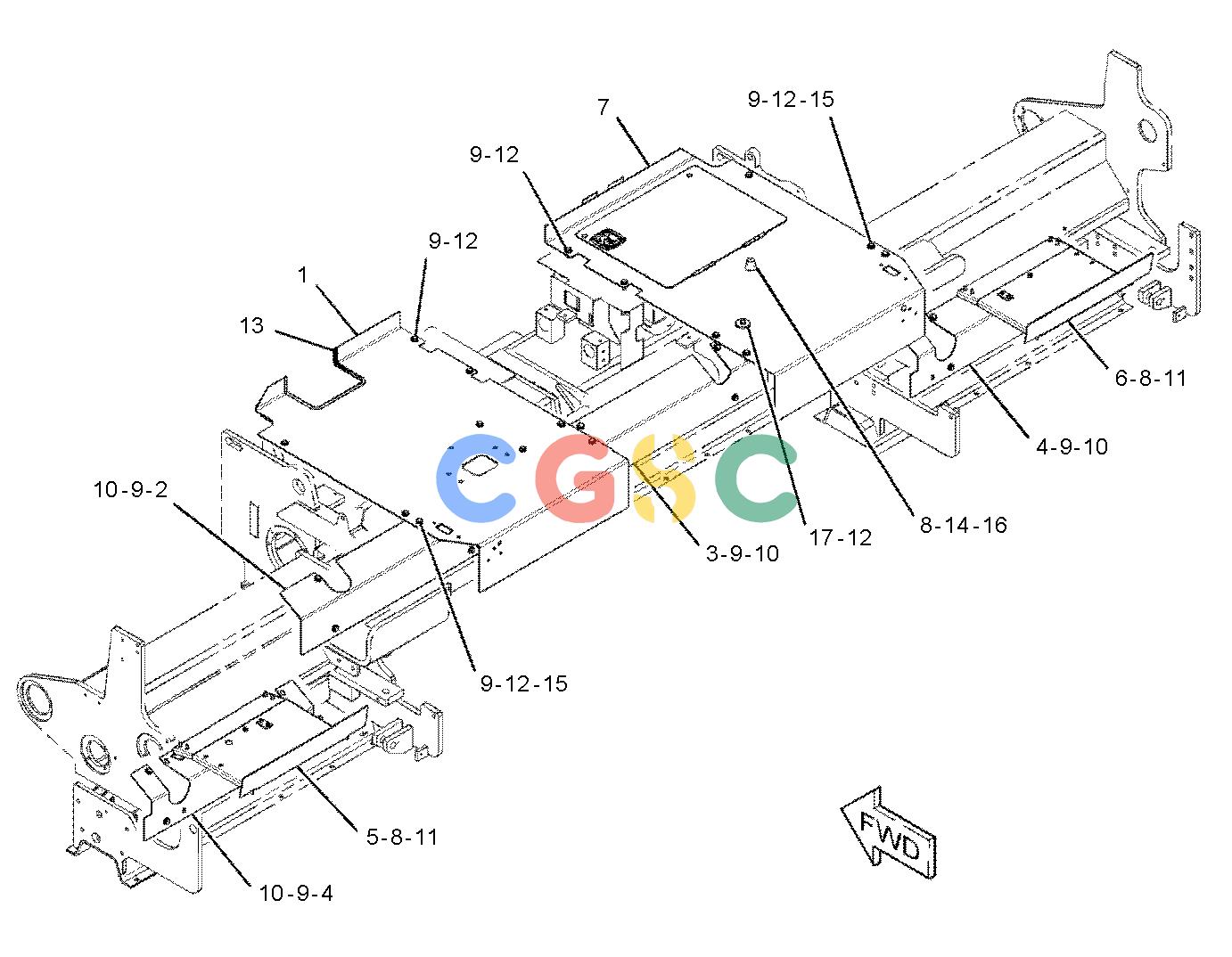

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 350-5928 | [1] | COVER AS(LH) | |
| 2. | 369-9950 | [1] | COVER | |
| 3. | 369-9951 | [1] | COVER | |
| 4. | 356-4204 | [2] | COVER AS | |
| 5. | 357-0320 | [1] | SUPPORT AS(LH) | |
| 6. | 357-0321 | [1] | SUPPORT AS(RH) | |
| 7. | 358-6583Y | [1] | COVER GP-SCREED(RH) | |
| 8. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 7X-7729 | [37] | WASHER(11X25X3-MM THK) | |
| 10. | 8T-4137M | [16] | BOLT(M10X1.5X20-MM) | |
| 11. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 12. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 13. | 7X-7877E | | STRIP-EDGE(62-CM) | |
| 14. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 15. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 16. | 138-7125 | [1] | BUMPER | |
| 17. | 115-6433 | [1] | WASHER(11X50X6-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
