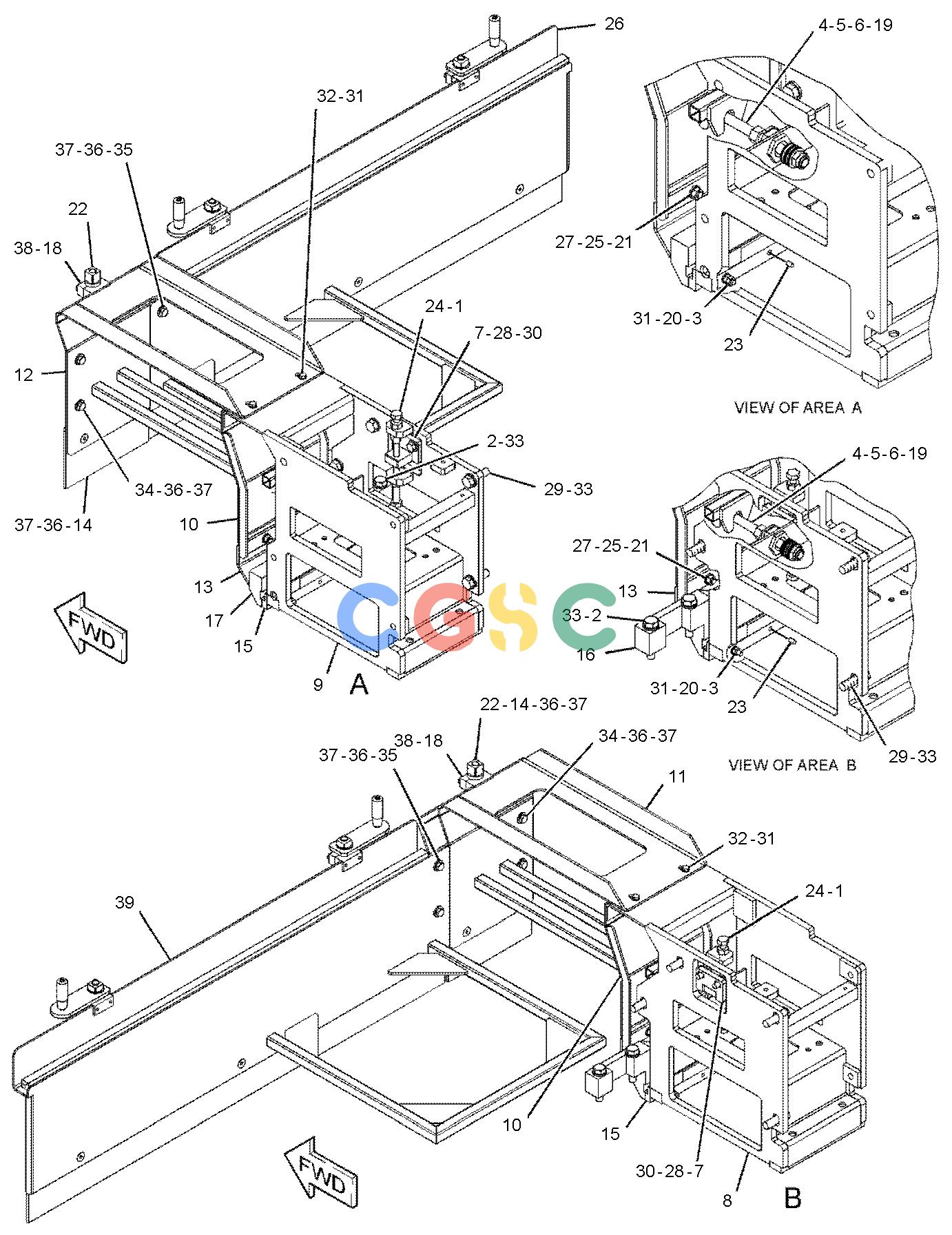

卡特零件查询（AP-655D） 299-7236: EXTENSION GP-MAIN FRAME
广数供应链运营团队, 17 02月, 2025，浏览：
151 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 096-4876M | [4] | NUT(M14X2-THD) | |
| 2. | 162-7181M | [4] | BOLT(M16X2X75-MM) | |
| 3. | 194-7183 | [8] | NUT(M8X1.25-THD) | |
| 4. | 242-2716 | [2] | RETAINER | |
| | | | (EACH INCLUDES) |
| | 8T-4132M | [1] | NUT(M16X2-THD) | |
| 5. | 242-2805 | [16] | WASHER-SPRING | |
| 6. | 242-2866 | [2] | BOLT-HOLLOW(M27X2X50-MM) | |
| 7. | 245-9684 | [2] | SUPPORT | |
| 8. | 250-9085 | [1] | FRAME AS(RH) | |
| 9. | 250-9086 | [1] | FRAME AS(LH) | |
| 10. | 251-1424 | [2] | PROTECTION AS | |
| 11. | 315-3690 | [1] | PLATE AS(RH)(RH) | |
| 12. | 315-3691 | [1] | PLATE AS(LH)(LH) | |
| 13. | 251-1427 | [2] | PLATE(LH) | |
| 14. | 312-5049 | [2] | PLATE AS(RH) | |
| 15. | 251-1431 | [2] | BLADE | |
| 16. | 251-1435 | [1] | PROTECTION GP-FUEL SYSTEM(RH) | |
| 17. | 251-1437 | [1] | PROTECTION GP-FUEL SYSTEM(LH) | |
| 18. | 310-9831 | [2] | CLAMP | |
| 19. | 096-4885M | [2] | LOCKNUT(M16X2-THD) | |
| 20. | 114-3350M | [4] | SCREW-FLAT HEAD(M8X1.25X60-MM) | |
| 21. | 157-0949M | [4] | SCREW-FLAT HEAD(M10X1.5X25-MM) | |
| 22. | 310-9821 | [2] | BUSHING | |
| 23. | 7X-2438 | [2] | DOWEL | |
| 24. | 8T-0298M | [4] | BOLT(M14X2X100-MM) | |
| 25. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 310-9817Y | [1] | PLATE GP-SCREED(LH) | |
| 27. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 28. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 29. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| 30. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 31. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 33. | 9X-8257 | [12] | WASHER(17.5X30X3.5-MM THK) | |
| 34. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 35. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 36. | 7X-7729 | [20] | WASHER(11X25X3-MM THK) | |
| 37. | 8T-0389M | [12] | LOCKNUT(M10X1.5-THD) | |
| 38. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 39. | 310-9816Y | [1] | PLATE GP-SCREED(RH) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
