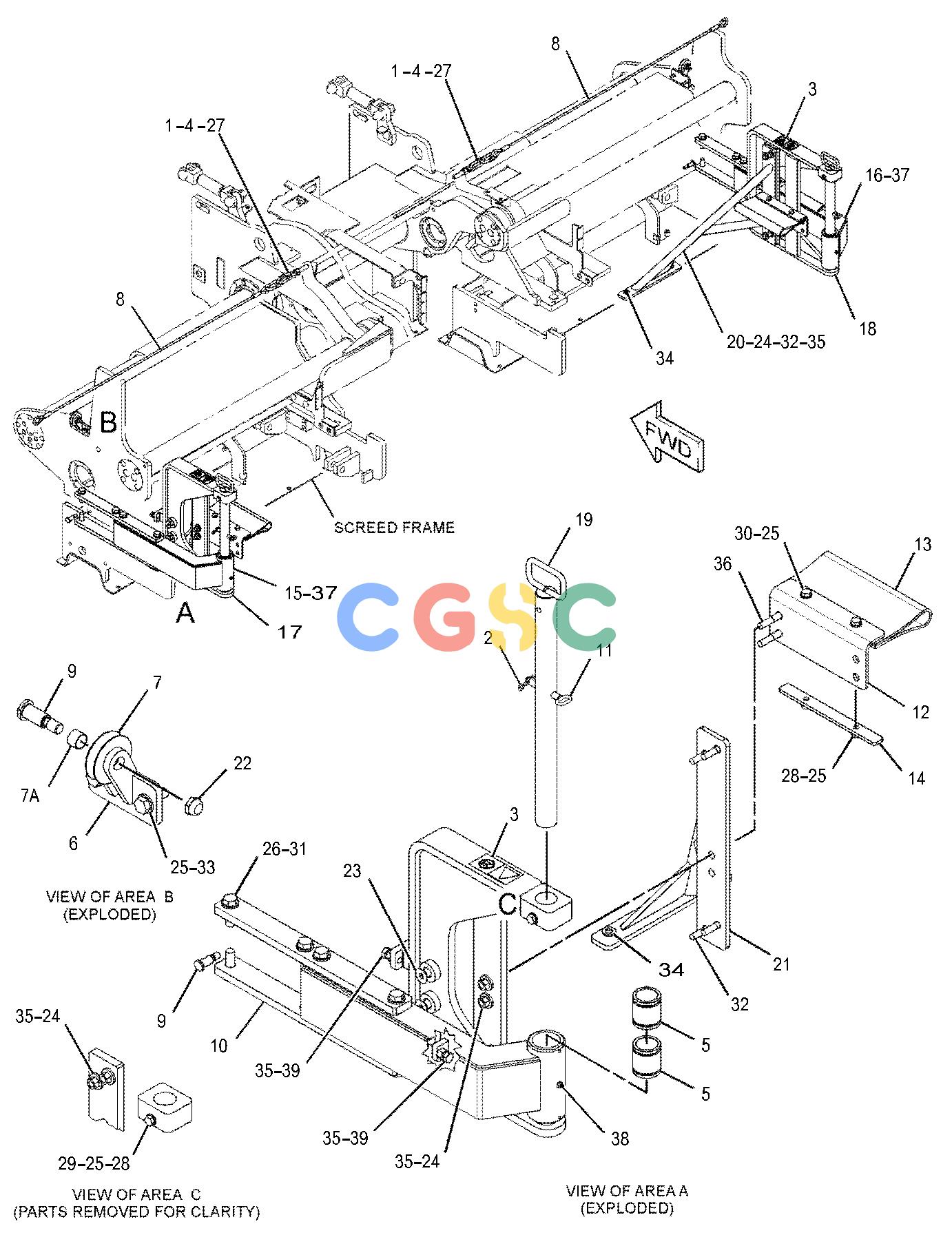

卡特零件查询（AP-655D） 353-5432: GATE GP-END
广数供应链运营团队, 17 02月, 2025，浏览：
226 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7T-5923 | [4] | LINK-CONNECTING | |
| 2. | 086-0507 | [2] | PIN | |
| 3. | 230-9095 | [2] | FILM-WARNING(FOOT CRUSHING HAZARD) | |
| 4. | 261-2028 | [2] | SUPPORT | |
| 5. | 263-0181 | [4] | BUSHING | |
| 6. | 296-9379 | [2] | SUPPORT-PULLEY | |
| 7. | 300-0180 | [2] | PULLEY AS | |
| 7A. | 263-1904 | [1] | BUSHING | |
| 8. | 320-2483 | [2] | CABLE | |
| 9. | 350-9529 | [4] | PIN | |
| 10. | 350-9562 | [4] | PLATE | |
| 11. | 362-0199 | [2] | PIN AS | |
| 12. | 377-2164 | [2] | BRACKET | |
| 13. | 377-2165 | [2] | PAD-RUBBER | |
| 14. | 377-5452 | [2] | PLATE-RETAINING | |
| 15. | 380-9096 | [1] | ARM AS(LH) | |
| 16. | 380-9097 | [1] | ARM AS(RH) | |
| 17. | 381-0358 | [1] | SUPPORT AS(LH) | |
| 18. | 381-0359 | [1] | SUPPORT AS(RH) | |
| 19. | 381-0360 | [2] | PIN AS | |
| 20. | 390-8631 | [1] | SUPPORT AS(RH) | |
| 21. | 390-9725 | [1] | SUPPORT AS(LH) | |
| 22. | 129-3180M | [2] | LOCKNUT(M12X1.75-THD) | |
| 23. | 144-2531M | [6] | BOLT(M16X2X70-MM) | |
| 24. | 5P-1076 | [24] | WASHER-HARD(13.5X30X4-MM THK) | |
| 25. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4122 | [16] | WASHER-HARD(17X32X3.5-MM THK) | |
| 27. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 28. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 29. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| 30. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 31. | 8T-4193M | [16] | BOLT(M16X2X50-MM) | |
| 32. | 8T-4194M | [8] | BOLT(M12X1.75X50-MM) | |
| 33. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 34. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 8T-4244M | [16] | NUT(M12X1.75-THD) | |
| 36. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| 37. | 9X-6608M | [4] | SETSCREW-SOCKET | |
| 38. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 39. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| | M | | METRIC PART |
