卡特零件查询（AP-655D） 273-9915: COVER GP-ACCESS
广数供应链运营团队, 17 02月, 2025，浏览：
769 次

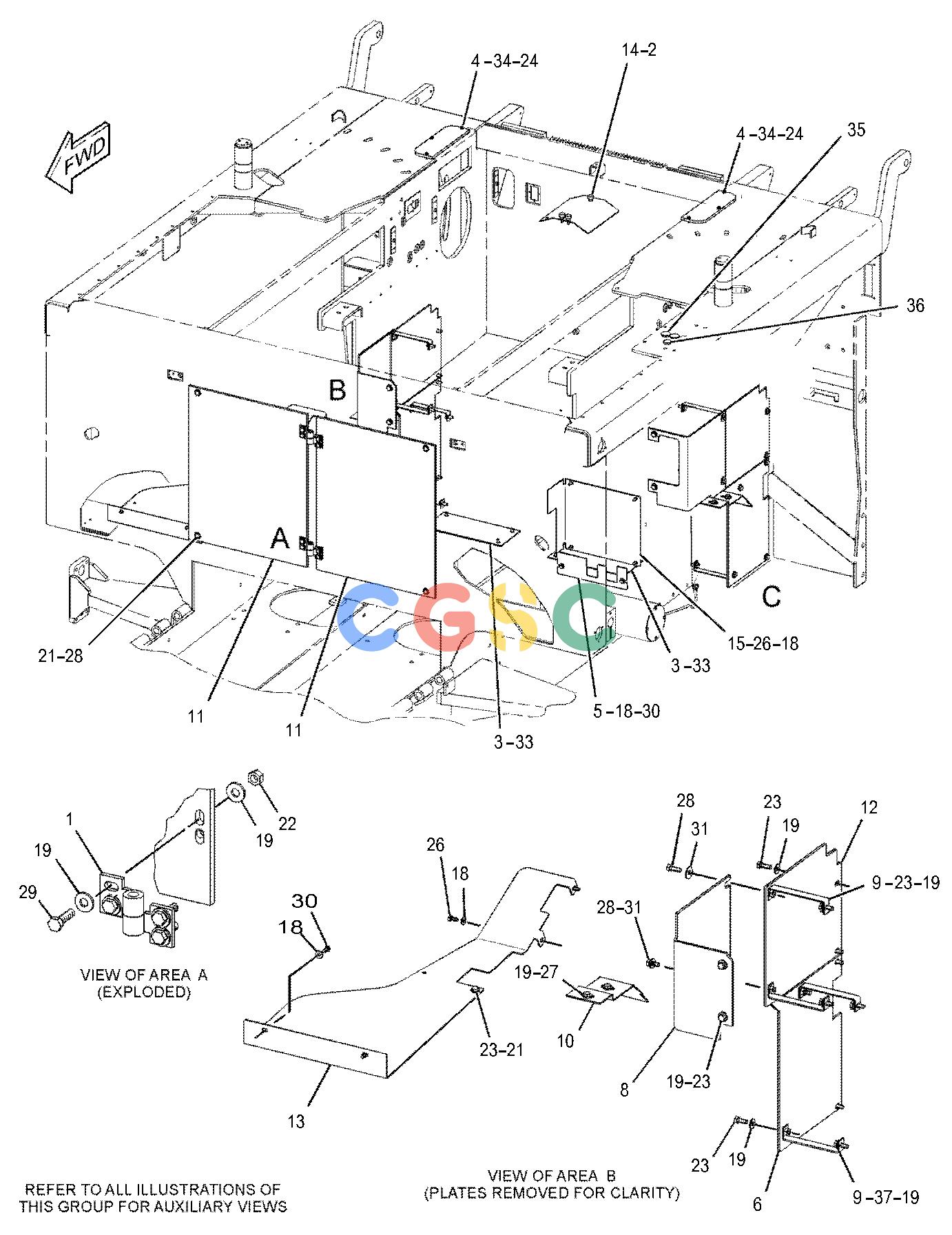

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-3630 | [4] | HINGE AS | |
| 2. | 107-5014 | [3] | KNOB | |
| 3. | 200-5904 | [2] | PLATE | |
| 4. | 237-0262 | [2] | PLATE | |
| 5. | 241-9513 | [1] | COVER | |
| 6. | 256-5078 | [2] | PLATE | |
| 7. | 256-5080 | [1] | PLATE | |
| 8. | 256-5081 | [1] | PLATE | |
| 9. | 256-5082 | [8] | PLATE AS | |
| 10. | 256-6152 | [2] | PLATE(GUARD) | |
| 11. | 273-6543 | [2] | PLATE | |
| 12. | 274-6389 | [2] | PLATE | |
| 13. | 278-0767 | [1] | PLATE | |
| 14. | 283-8046 | [1] | PLATE(BENT) | |
| 15. | 284-6615 | [1] | PLATE(BENT) | |
| 18. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 19. | 7X-7729 | [44] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 23. | 8T-4136M | [23] | BOLT(M10X1.5X25-MM) | |
| 24. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 26. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 27. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 28. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 29. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 30. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 31. | 8T-4222 | [4] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 33. | 9X-2616M | [8] | SCREW-SOCKET(M8X1.25X16-MM) | |
| 34. | 5P-4115 | [6] | WASHER-HARD(7.2X19X2-MM THK) | |
| 35. | 4S-6336B | [2] | PLUG-BUTTON | |
| 36. | 9D-3767B | [1] | PLUG-BUTTON | |
| 37. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
