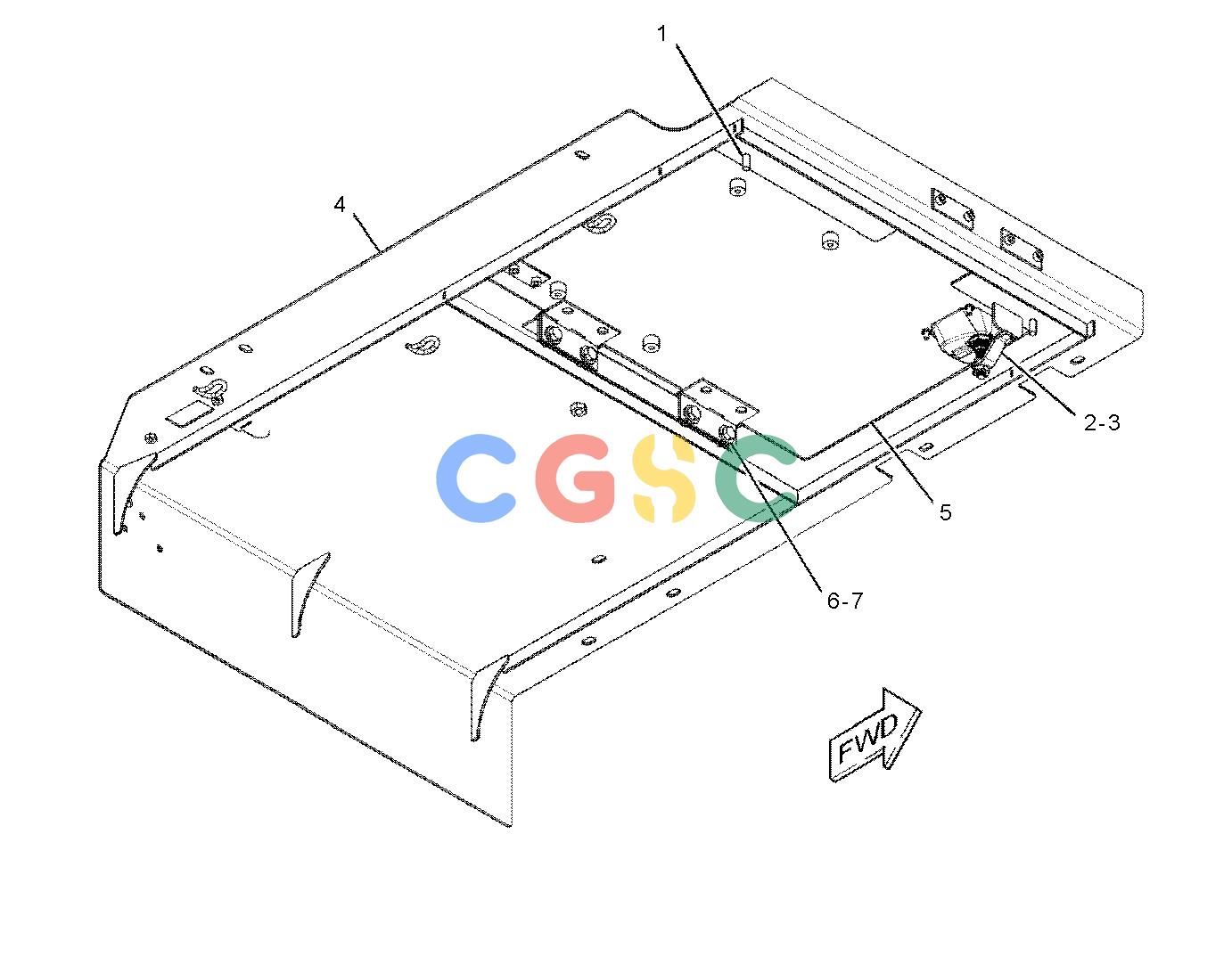

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 111-1777 | [2] | BUMPER-RUBBER | |
| 2. | 294-2382 | [1] | LATCH AS | |
| 3. | 305-3169 | [1] | PAWL | |
| 4. | 350-5931 | [1] | COVER AS(RH) | |
| 7T-1099 | [3] | LINK | ||
| 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | ||
| 178-8510 | [2] | PLATE-WELD | ||
| 5. | 350-5933 | [1] | DOOR AS | |
| 7T-1099 | [1] | LINK | ||
| 178-8508 | [1] | PLATE AS | ||
| 360-5656 | [2] | HINGE | ||
| 6. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 7. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| M | METRIC PART | |||
