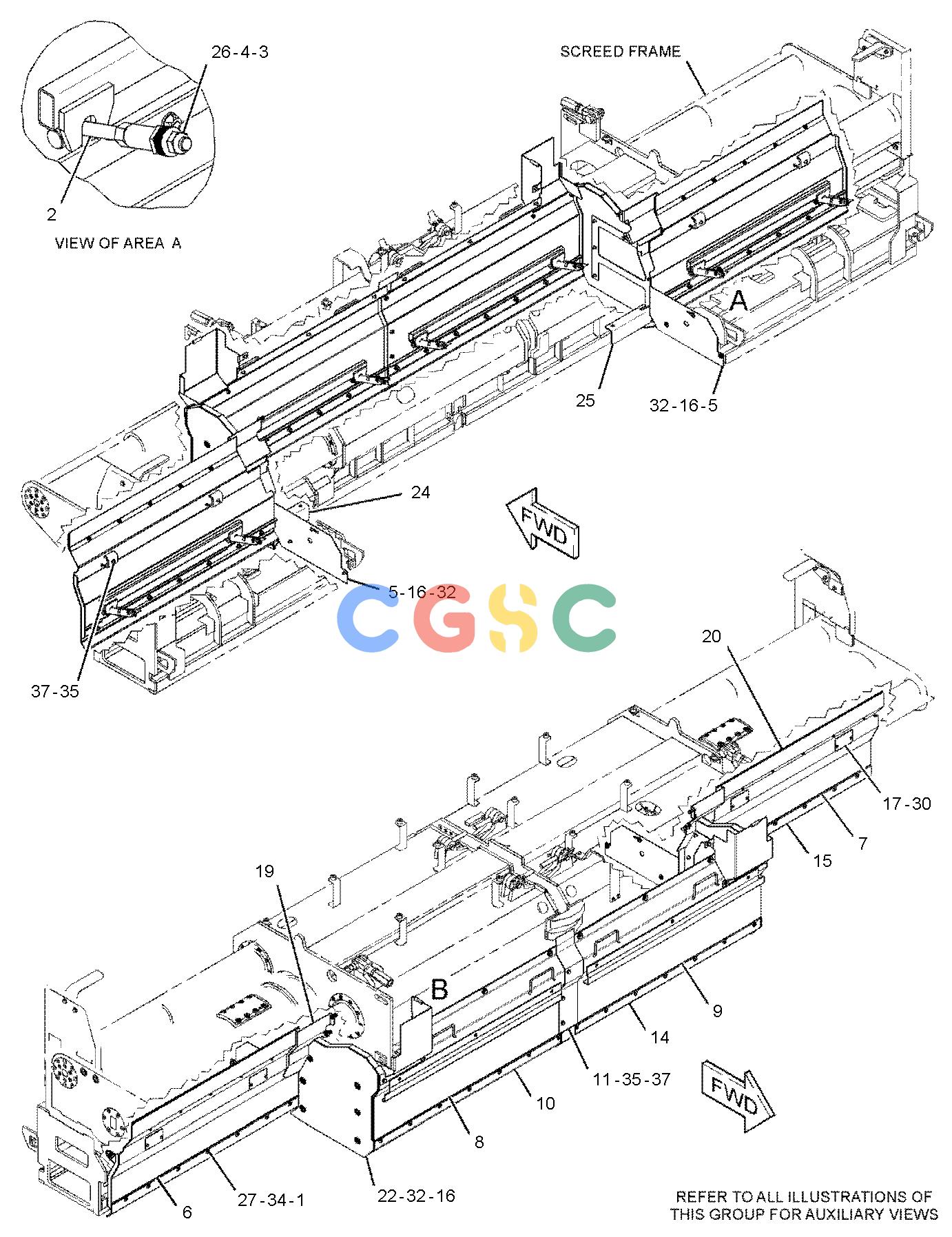

卡特零件查询（AP-655D） 250-3366: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
107 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 197-8784 | [28] | LOCKNUT(M10X1.5-THD) | |
| 2. | 242-2716 | [8] | RETAINER | |
| 3. | 242-2805 | [64] | WASHER-SPRING | |
| 4. | 242-2866 | [8] | BOLT-HOLLOW(M27X2X50-MM) | |
| 5. | 251-0842 | [2] | PLATE | |
| 6. | 257-5294 | [1] | DEFLECTOR AS(REAR, RH) | |
| 7. | 257-5295 | [1] | DEFLECTOR AS(REAR, LH) | |
| 8. | 257-5296 | [1] | DEFLECTOR AS(FRONT, RH) | |
| 9. | 257-5297 | [1] | DEFLECTOR AS(FRONT, LH) | |
| 10. | 257-5298 | [1] | BLADE AS(RH) | |
| 11. | 257-5299 | [1] | PLATE | |
| 12. | 425-1952 | [1] | COVER AS(RH) | |
| 13. | 425-1953 | [1] | COVER AS(LH) | |
| 14. | 258-7177 | [1] | BLADE(LH) | |
| 15. | 258-7178 | [2] | BLADE(RH) | |
| 16. | 269-5138 | [18] | WASHER(13X24X3-MM THK) | |
| 17. | 273-2036 | [4] | COVER-ACCESS | |
| 18. | 273-2041 | [1] | COVER AS(SLIDING, LH) | |
| 19. | 273-2042 | [1] | COVER AS(SLIDING, RH) | |
| 20. | 276-5620 | [2] | SPACER(1095X105X2-MM THK) | |
| 21. | 258-4648E | | SEAL(22.5-CM EACH) | |
| 22. | 332-7898 | [1] | PLATE AS(RH) | |
| 23. | 332-7899 | [1] | PLATE AS(LH) | |
| 24. | 335-0602 | [1] | SUPPORT(LH) | |
| 25. | 335-0603 | [1] | SUPPORT(RH) | |
| 26. | 096-4885M | [8] | LOCKNUT(M16X2-THD) | |
| 27. | 157-0949M | [28] | SCREW-FLAT HEAD(M10X1.5X25-MM) | |
| 28. | 5C-2890M | [10] | NUT(M6X1-THD) | |
| 29. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 30. | 5C-9553M | [8] | BOLT(M6X1X16-MM) | |
| 31. | 6R-7653M | [10] | SCREW(M6X1X15-MM) | |
| 32. | 8C-7505M | [18] | SCREW-FLAT HEAD(M8X1.25X20-MM) | |
| 33. | 8M-7145 | [6] | WASHER(10.2X28.5X5-MM THK) | |
| 34. | 8T-4121 | [38] | WASHER-HARD(11X21X2.5-MM THK) | |
| 35. | 8T-4137M | [19] | BOLT(M10X1.5X20-MM) | |
| 36. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 37. | 8T-4896 | [13] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 38. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
