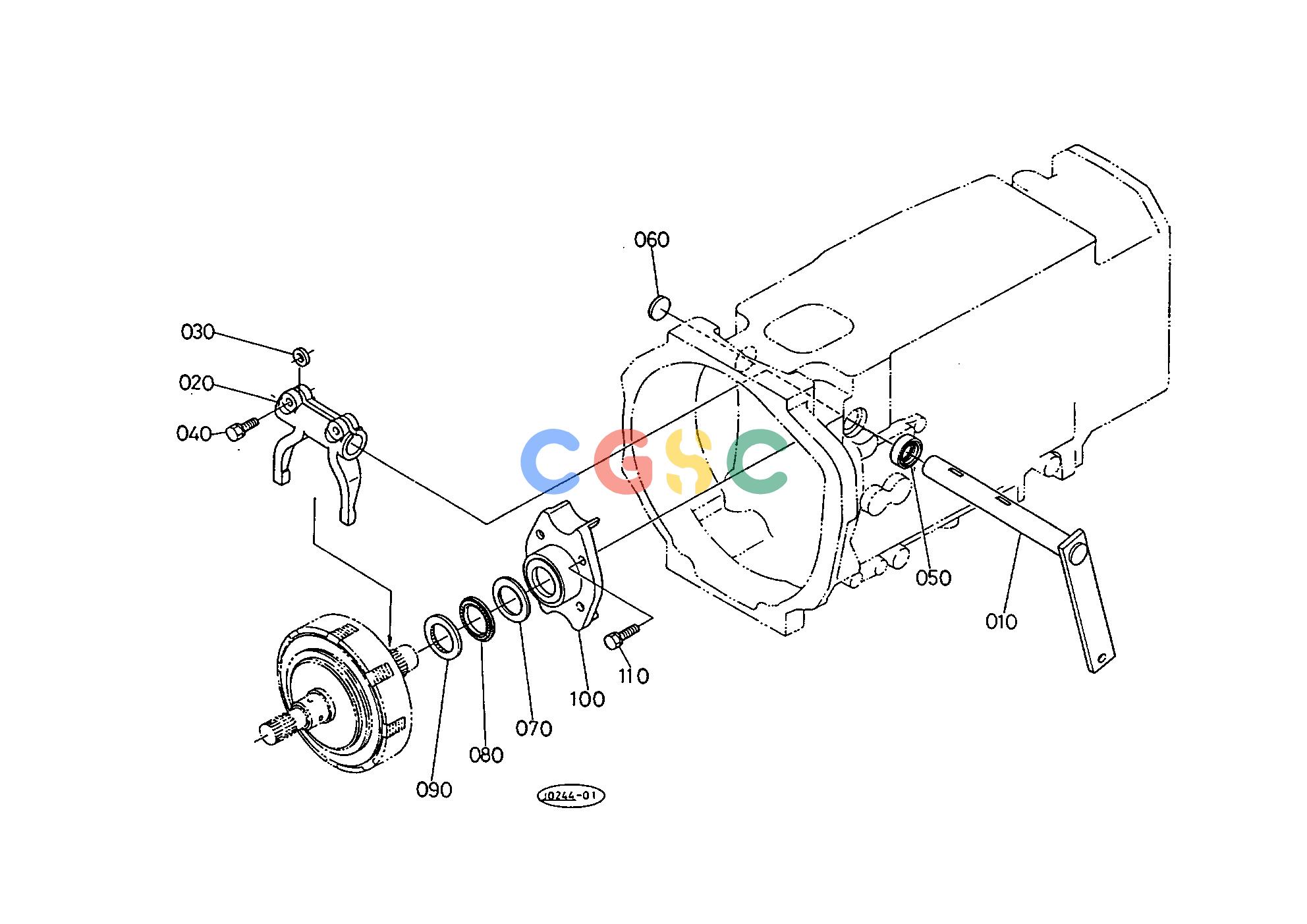

久保田零件查询T04502 CLUTCH LEVER [WITH WET CLUTCH] CLUTCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508014710
|
[1] |
LEVER CLUTCH
|
2.0680(lbs); 0.940
|
| 020. |
3508014720
|
[1] |
FORK CLUTCH RELEASE
|
1.5400(lbs); 0.700
|
| 030. |
3115014780
|
[2] |
KEY FORK
|
0.0066(lbs); 0.003
|
| 040. |
0112350830
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 050. |
0950022358
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 060. |
1510323180
|
[1] |
CAP SEALING
|
0.0220(lbs); 0.010
|
| 070. |
3508015370
|
[1] |
WASHER THRUST
|
0.0220(lbs); 0.010
|
| 080. |
3508015380
|
[1] |
BEARING THRUST
|
0.0220(lbs); 0.010
|
| 090. |
3508015390
|
[1] |
WASHER THRUST
|
0.0660(lbs); 0.030
|
| 100. |
3508015410
|
[1] |
CASE PROP.SHAFT
|
0.9020(lbs); 0.410
|
| 110. |
0112350830
|
[4] |
BOLT
|
0.0330(lbs); 0.015
|
