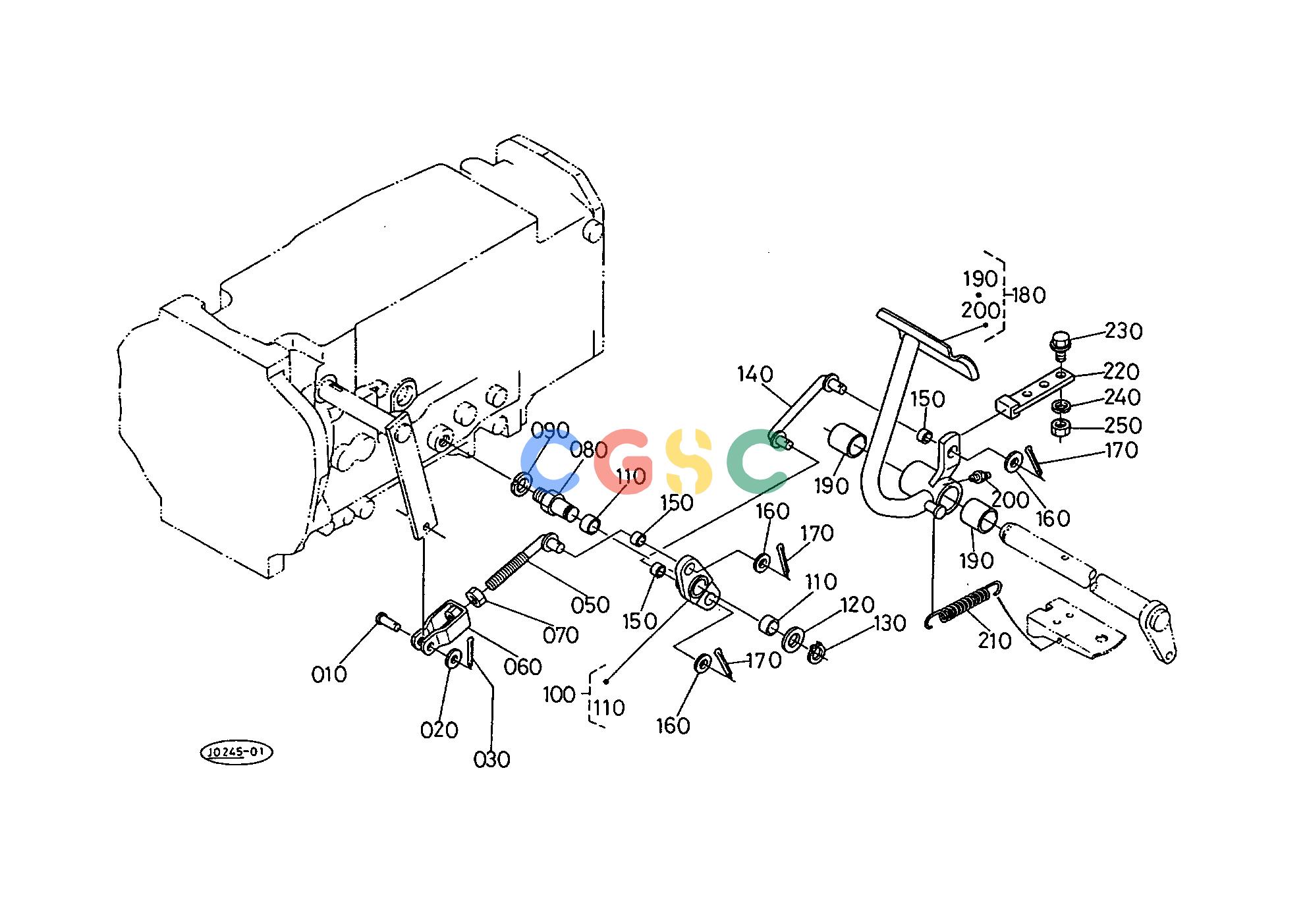

久保田零件查询T04602 CLUTCH PEDAL [WITH WET CLUTCH] CLUTCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
702 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0511250822
|
[1] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 020. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 030. |
0551150220
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 050. |
3508015640
|
[1] |
ROD CLUTCH
|
0.1980(lbs); 0.090
|
| 060. |
3415015630
|
[1] |
JOINT
|
0.2090(lbs); 0.095
|
| 070. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 080. |
3508015660
|
[1] |
FULCRUM CLUTCH LINK
|
0.2420(lbs); 0.110
|
| 090. |
0451250140
|
[1] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 100. |
3508015650
|
[1] |
ASSY LINK CLUTCH
|
0.4840(lbs); 0.220
|
| 110. |
0851101810
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 120. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 130. |
0461200180
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 140. |
3508015680
|
[1] |
ROD CLUTCH PEDAL
|
0.2640(lbs); 0.120
|
| 150. |
3244015732
|
[3] |
BUSH
|
0.0022(lbs); 0.001
|
| 160. |
0401150120
|
[3] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 170. |
0551150425
|
[3] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 180. |
3508015700
|
[1] |
ASSY PEDAL CLUTCH
|
3.4320(lbs); 1.560
|
| 190. |
3818028670
|
[2] |
BUSH
|
0.0440(lbs); 0.020
|
| 200. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 210. |
3715015840
|
[1] |
SPRING
|
0.1320(lbs); 0.060
|
| 220. |
3135115934
|
[1] |
STOPPER PEDAL
|
0.2200(lbs); 0.100
|
| 230. |
0175450820
|
[2] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 240. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 250. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
