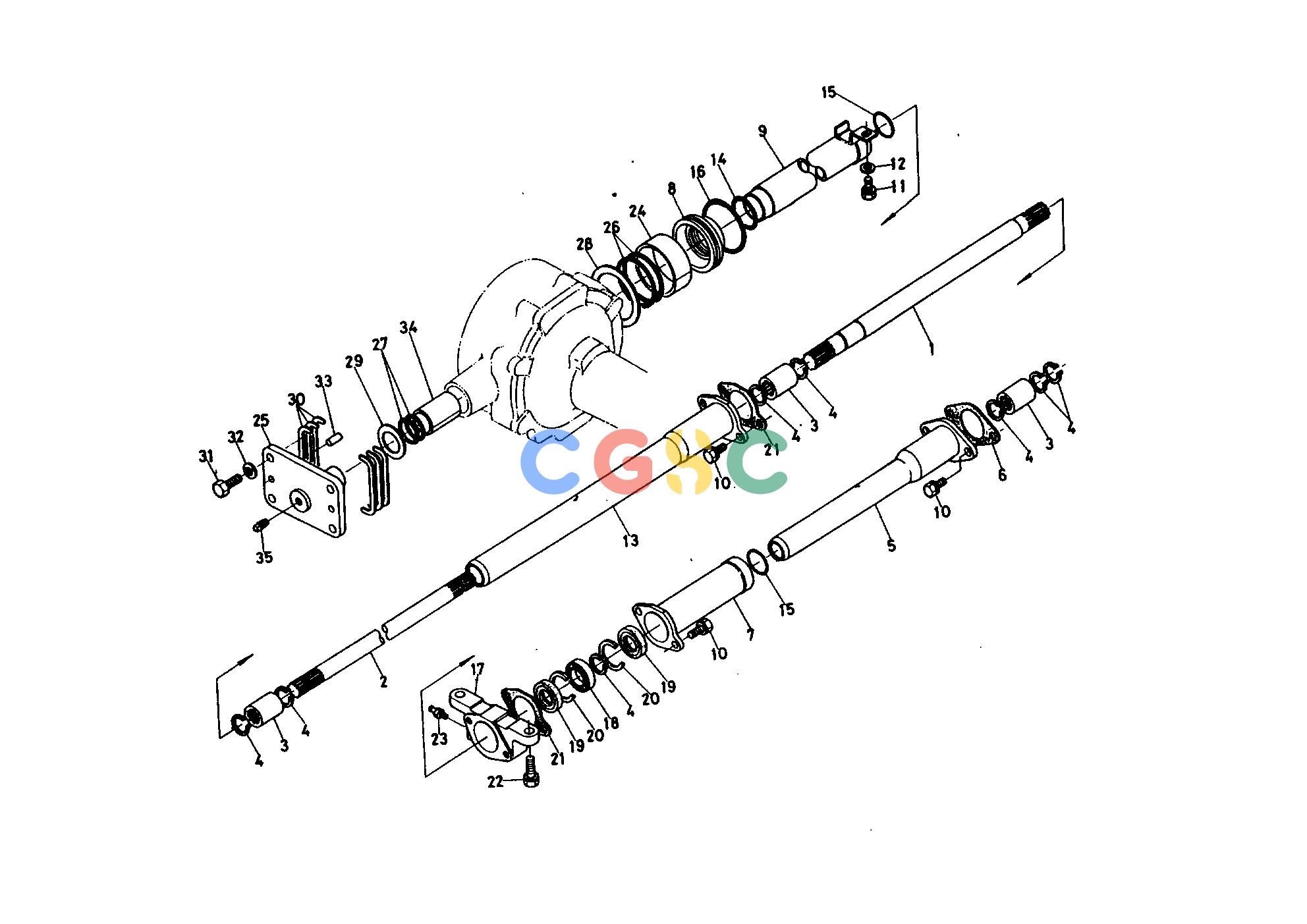

久保田零件查询680000 PROPELLER SHAFT FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
321 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3535044510
|
[1] |
SHAFT PROPELLER 1
|
4.3560(lbs); 1.980
|
| 002. |
3535044530
|
[1] |
SHAFT PROPELLER 2
|
6.6000(lbs); 3.000
|
| 003. |
3780044520
|
[3] |
COUPLING
|
0.3520(lbs); 0.160
|
| 004. |
0461200250
|
[8] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 005. |
3535044570
|
[1] |
COVER 1
|
1.2870(lbs); 0.585
|
| 006. |
3765044540
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 007. |
3535044550
|
[1] |
COVER 3
|
0.7480(lbs); 0.340
|
| 008. |
3780044580
|
[1] |
COVER SEAL
|
0.7590(lbs); 0.345
|
| 009. |
3780044590
|
[1] |
COVER 2
|
1.8590(lbs); 0.845
|
| 010. |
0112050816
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 011. |
0113051020
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 012. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 013. |
3535044560
|
[1] |
COVER 4
|
1.7050(lbs); 0.775
|
| 014. |
0481100420
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 015. |
0481150350
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 016. |
0481150750
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 017. |
3535044630
|
[1] |
CASE BEARING
|
1.2760(lbs); 0.580
|
| 018. |
0810106905
|
[1] |
BEARING BALL
|
0.0880(lbs); 0.040
|
| 019. |
0950025428
|
[2] |
SEAL OIL
|
0.0286(lbs); 0.013
|
| 020. |
3535044650
|
[2] |
COLLAR
|
0.0110(lbs); 0.005
|
| 021. |
3535044660
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 022. |
0113051230
|
[2] |
BOLT
|
0.0902(lbs); 0.041
|
| 023. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 024. |
3780044630
|
[1] |
BUSH
|
0.2552(lbs); 0.116
|
| 025. |
3780044610
|
[1] |
PIN CENTER
|
0.0000(lbs); 0.000
|
| 026. |
0481150750
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 027. |
0481150350
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 028. |
3780044640
|
[1] |
COLLAR THRUST
|
0.0990(lbs); 0.045
|
| 029. |
3780044672
|
[1] |
COLLAR THRUST
|
0.1100(lbs); 0.050
|
| 030. |
3780044650
|
[20] |
SHIM
|
0.0066(lbs); 0.003
|
| 030. |
3780044660
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 031. |
3780043400
|
[4] |
BOLT
|
0.0946(lbs); 0.043
|
| 032. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 033. |
0501201025
|
[2] |
PIN STRAIT
|
0.0352(lbs); 0.016
|
| 034. |
3780044620
|
[1] |
BUSH
|
0.1980(lbs); 0.090
|
| 035. |
0631210010
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
