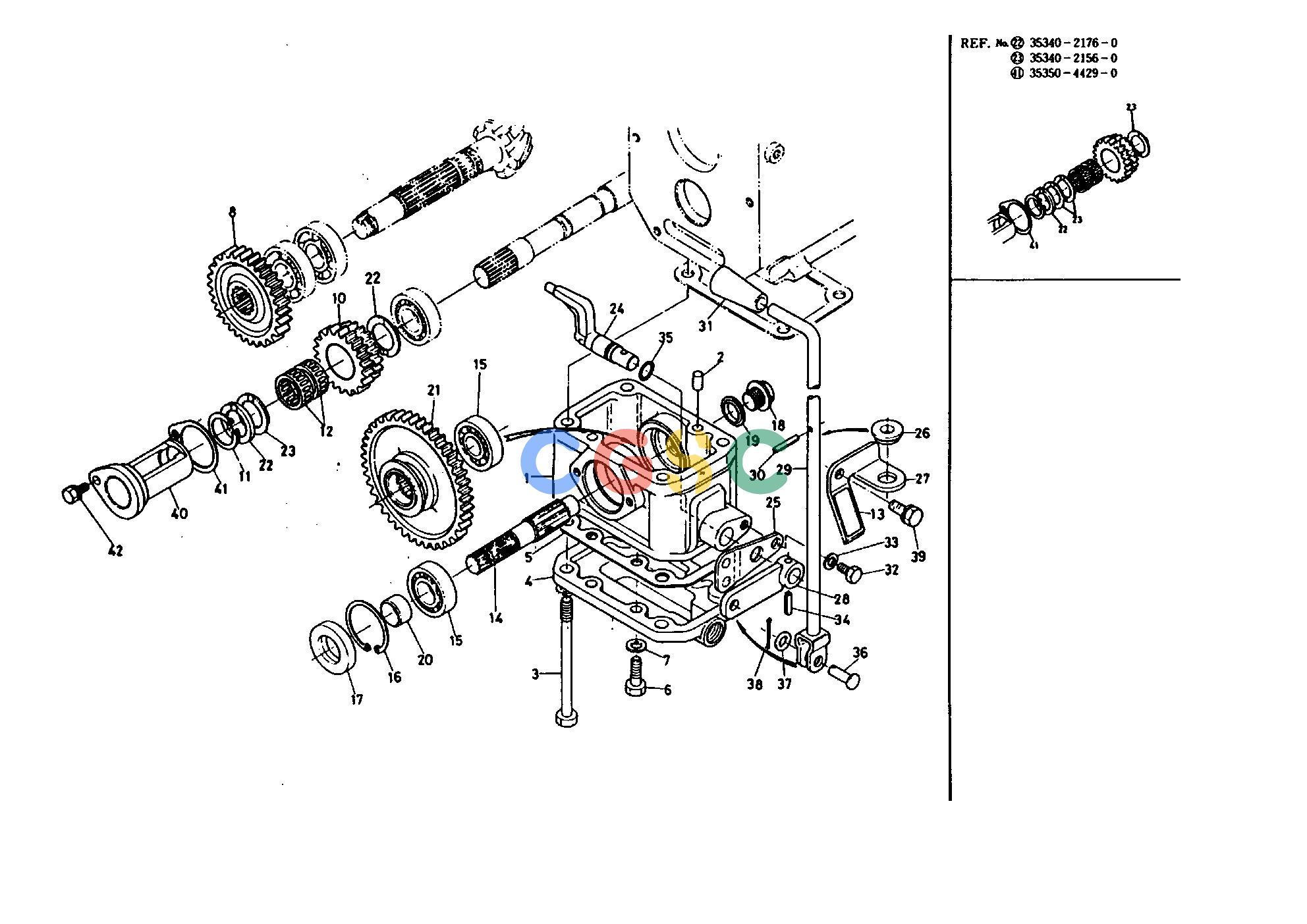

久保田零件查询690000 DRIVE CASE FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
724 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3780044110
|
[1] |
CASE
|
7.9200(lbs); 3.600
|
| 002. |
3715014150
|
[2] |
PIN STRAIGHT
|
0.2750(lbs); 0.125
|
| 002. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 003. |
3780044120
|
[4] |
BOLT
|
0.2420(lbs); 0.110
|
| 004. |
3780044130
|
[1] |
COVER
|
2.4420(lbs); 1.110
|
| 005. |
3780044140
|
[1] |
GASKET
|
0.0154(lbs); 0.007
|
| 006. |
0117351028
|
[4] |
BOLT
|
0.0484(lbs); 0.022
|
| 007. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 008. |
3535044150
|
[1] |
GEAR 25
|
1.3640(lbs); 0.620
|
| 010. |
3535044180
|
[1] |
GEAR 14-21
|
0.0000(lbs); 0.000
|
| 011. |
3788044270
|
[1] |
COLLAR
|
0.0000(lbs); 0.000
|
| 012. |
0882303614
|
[2] |
BEARING NEEDLE
|
0.0484(lbs); 0.022
|
| 013. |
3535044900
|
[1] |
LABEL CHANGE
|
0.0022(lbs); 0.001
|
| 014. |
3780044190
|
[1] |
SHAFT
|
1.3156(lbs); 0.598
|
| 015. |
0810106205
|
[2] |
BEARING BALL (6205)
|
0.2640(lbs); 0.120
|
| 016. |
0461100520
|
[1] |
CIR-CLIP INTERNAL
|
0.0198(lbs); 0.009
|
| 017. |
0950305211
|
[1] |
SEAL OIL
|
0.0484(lbs); 0.022
|
| 018. |
3415014260
|
[2] |
PLUG DRAIN
|
0.2200(lbs); 0.100
|
| 019. |
0471702150
|
[2] |
WASHER SEAL
|
0.0088(lbs); 0.004
|
| 020. |
3780044210
|
[1] |
SLEEVE
|
0.0330(lbs); 0.015
|
| 021. |
3535044230
|
[1] |
GEAR 48
|
3.0800(lbs); 1.400
|
| 022. |
3534021760
|
[2] |
COLLAR THRUST
|
0.0220(lbs); 0.010
|
| 023. |
3534021560
|
[1] |
WASHER
|
0.0176(lbs); 0.008
|
| 024. |
3780044310
|
[1] |
LEVER SHIFT
|
0.3212(lbs); 0.146
|
| 025. |
3780044350
|
[1] |
GUIDE LEVER
|
0.0924(lbs); 0.042
|
| 026. |
3780044390
|
[1] |
RUBBER GUIDE
|
0.0110(lbs); 0.005
|
| 027. |
3780044380
|
[1] |
SUPPORT LEVER
|
0.2200(lbs); 0.100
|
| 028. |
3780044360
|
[1] |
LEVER CHANGE
|
0.0000(lbs); 0.000
|
| 028. |
3531044360
|
[1] |
LEVER CHANGE
|
0.4620(lbs); 0.210
|
| 029. |
3780044400
|
[1] |
LEVER
|
1.0890(lbs); 0.495
|
| 030. |
0541100430
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 031. |
5420123270
|
[1] |
GRIP 2
|
0.0440(lbs); 0.020
|
| 032. |
0115350814
|
[1] |
BOLT
|
0.0198(lbs); 0.009
|
| 033. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 034. |
0541100625
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 035. |
0481100150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 036. |
0512251022
|
[1] |
PIN JOINT
|
0.0308(lbs); 0.014
|
| 037. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 038. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 039. |
0113051020
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 040. |
3535044280
|
[1] |
STOPPER
|
1.0780(lbs); 0.490
|
| 041. |
3535044290
|
[1] |
SHIM 0.2
|
0.0110(lbs); 0.005
|
| 042. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
