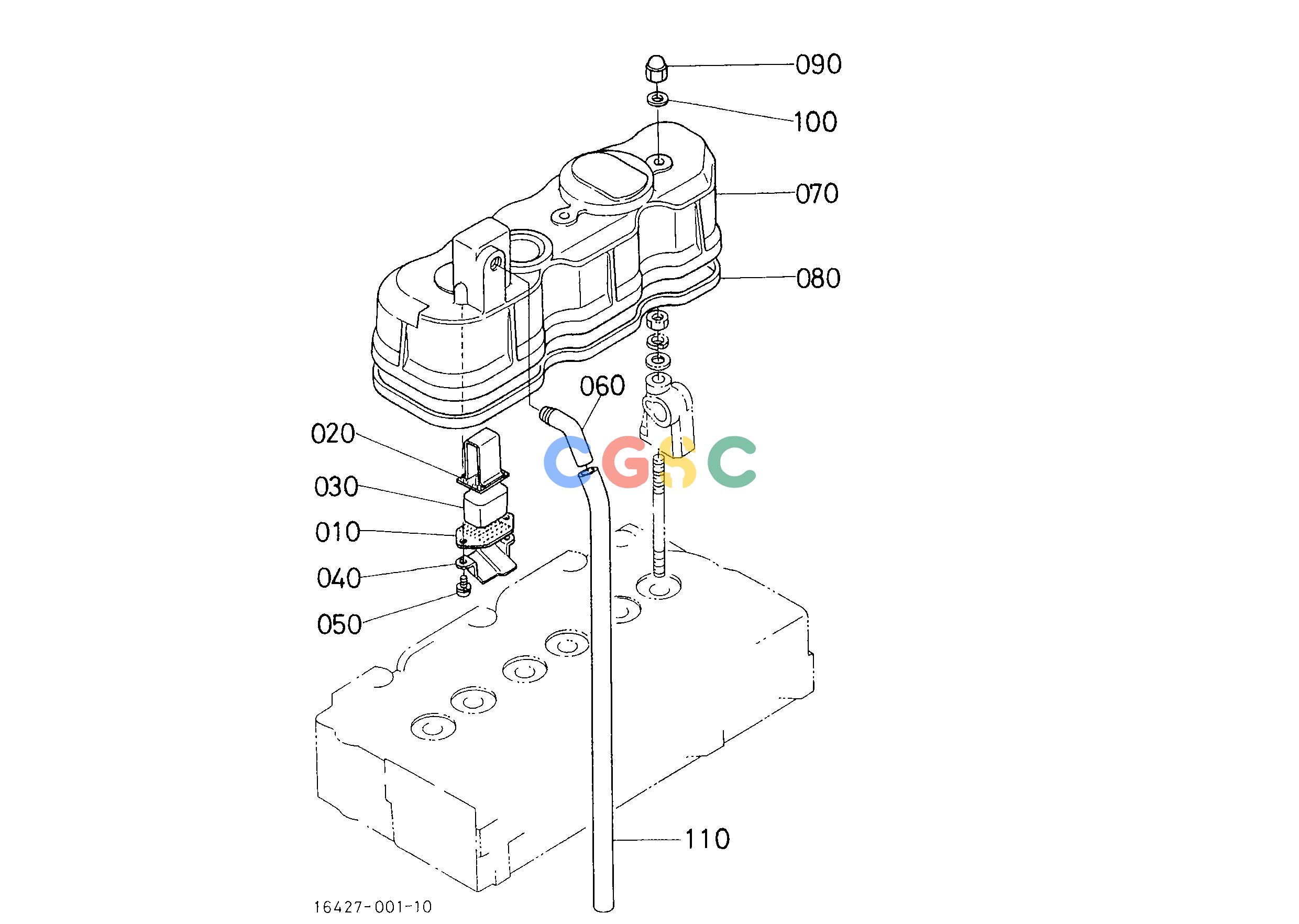

久保田零件查询T01000 CYLINDER HEAD COVER [OLD TYPE] ## S.No.<=3W0593 S.No.;<=3W0593 ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1552105140
|
[1] |
PLATE,B/THER ELEMENT
|
0.0110(lbs); 0.005
|
| 020. |
1552105150
|
[1] |
PLATE,B/THER ELEMENT
|
0.0220(lbs); 0.010
|
| 030. |
1552105670
|
[1] |
ELEMENT,BREATHER
|
0.0220(lbs); 0.010
|
| 040. |
1552105370
|
[1] |
OIL SHIELD,BREATHER
|
0.0110(lbs); 0.005
|
| 050. |
0303450510
|
[2] |
SCREW,W SEMS(PAN HEAD)
|
0.0066(lbs); 0.003
|
| 060. |
1736505550
|
[1] |
JOINT,BREATHER
|
0.1430(lbs); 0.065
|
| 070. |
1642714510
|
[1] |
COVER,CYL.HEAD
|
2.4860(lbs); 1.130
|
| 080. |
1552114520
|
[1] |
GASKET,HEAD COVER
|
0.0770(lbs); 0.035
|
| 090. |
1545192330
|
[3] |
NUT
|
0.0176(lbs); 0.008
|
| 100. |
1502133660
|
[3] |
PACKING
|
0.0022(lbs); 0.001
|
| 110. |
1583705510
|
[1] |
PIPE,BREATHER
|
0.1320(lbs); 0.060
|
