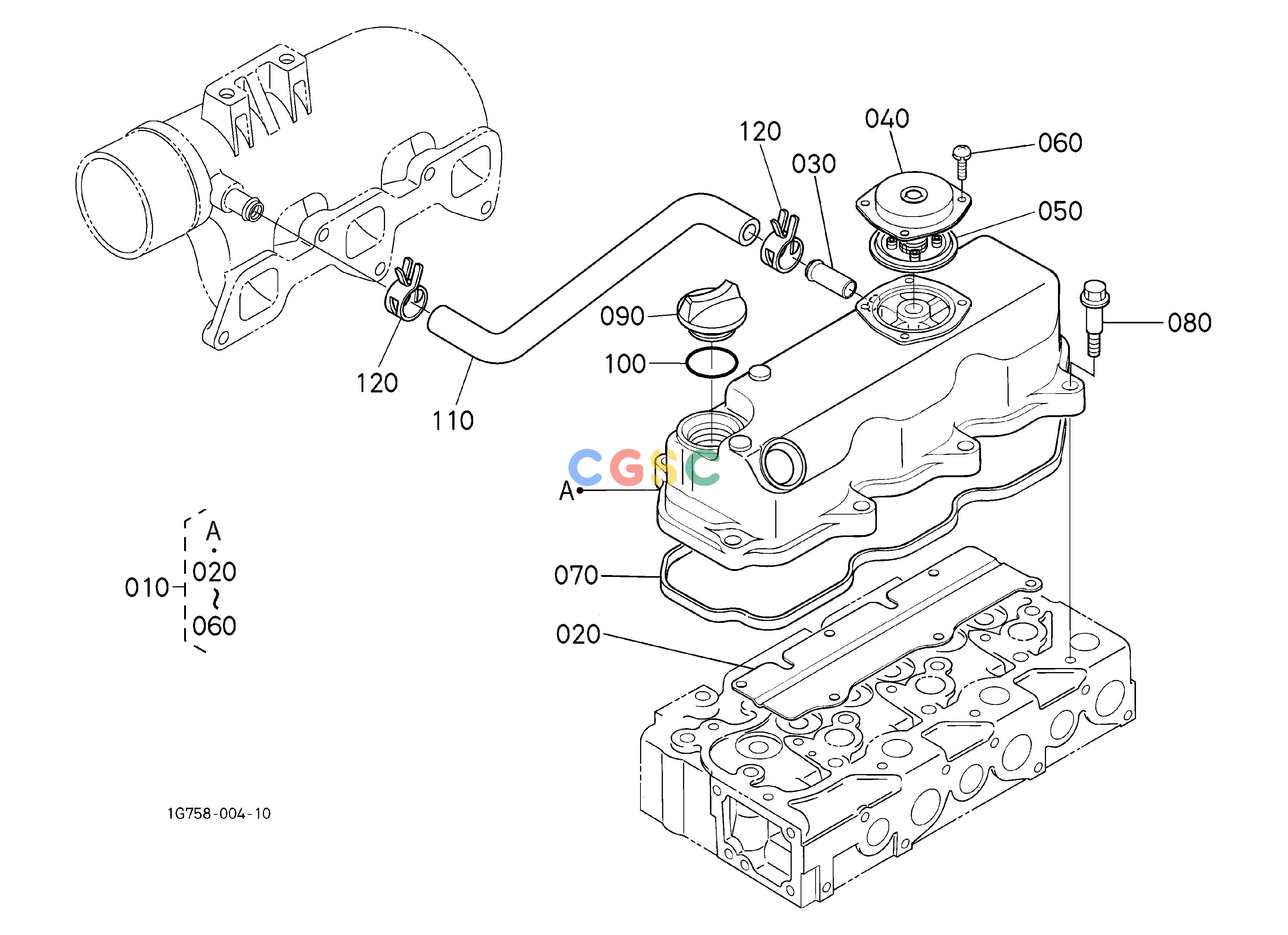

久保田零件查询T01001 CYLINDER HEAD COVER [NEW TYPE] ## S.No.>=3Y0001 S.No.;>=3Y0001 ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
515 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G75014503
|
[1] |
ASSY COVER,CYL.HEAD
|
2.7060(lbs); 1.230
|
| 020. |
1A02105370
|
[1] |
SEALD,OIL BRATHER
|
0.2200(lbs); 0.100
|
| 030. |
1733173342
|
[1] |
PIPE,WATER RETURN
|
0.0220(lbs); 0.010
|
| 040. |
1G91105120
|
[1] |
COVER,BREATHER
|
0.0990(lbs); 0.045
|
| 050. |
1G91105200
|
[1] |
COMP.VALVE,BREATHER
|
0.0220(lbs); 0.010
|
| 060. |
0302450510
|
[4] |
SCREW,SEMS(PAN HEAD)
|
0.0044(lbs); 0.002
|
| 070. |
1A02114520
|
[1] |
GASKET,HEAD COVER
|
0.0440(lbs); 0.020
|
| 080. |
1G91191022
|
[8] |
BOLT
|
0.0330(lbs); 0.015
|
| 090. |
1585233140
|
[1] |
PLUG,OIL FILLER
|
0.0836(lbs); 0.038
|
| 100. |
0481750300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
1G78005510
|
[1] |
TUBE,BREATHER
|
0.1320(lbs); 0.060
|
| 120. |
0931888180
|
[2] |
BAND,HOSE
|
0.0220(lbs); 0.010
|
