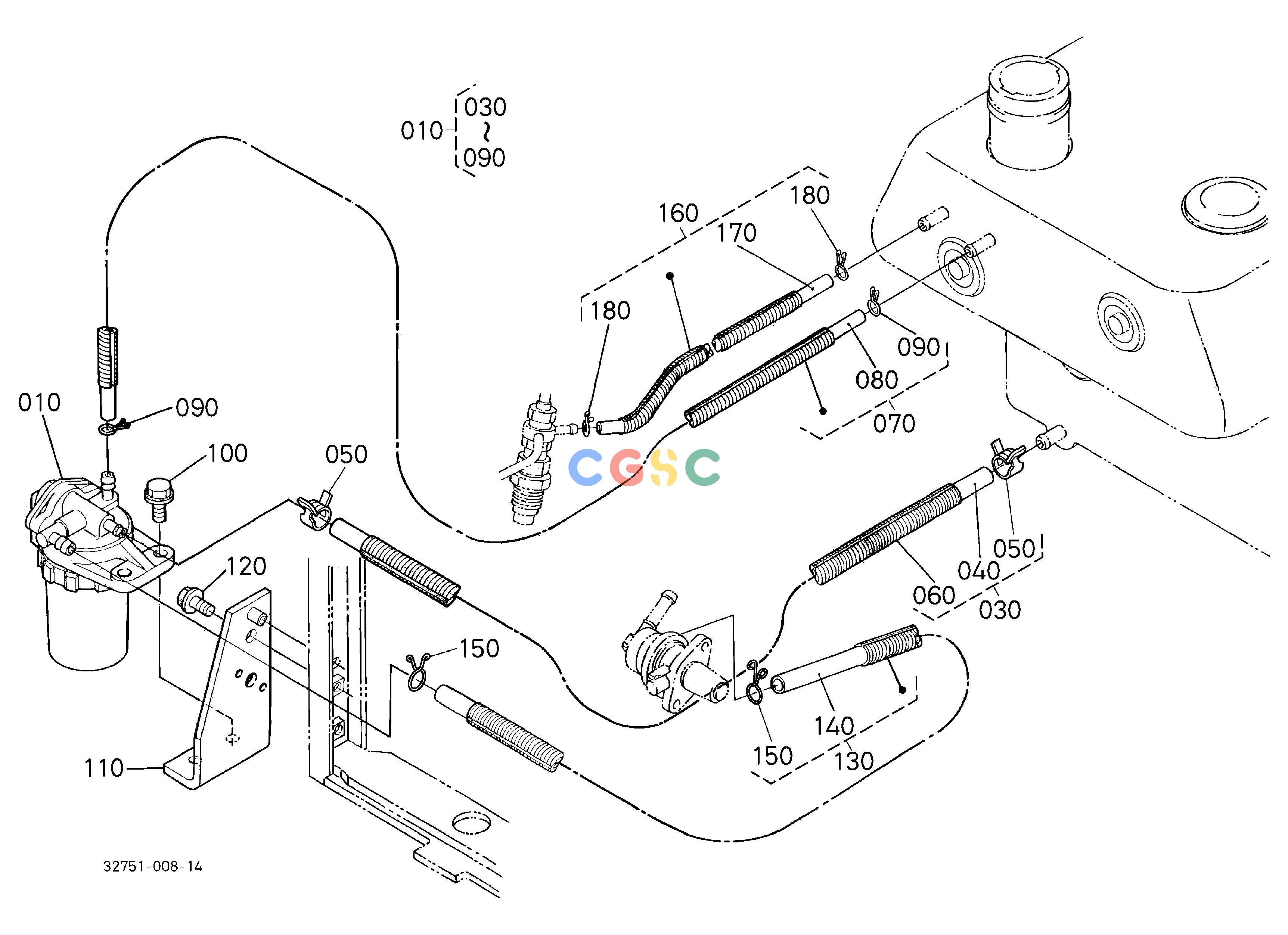

久保田零件查询T03100 FUEL FILTER AND FUEL PIPE FUEL SYSTEMEPC Kubota online

广数供应链运营团队, 17 02月, 2025，浏览： 764 次

Pos.	Part No	Qty	Parts name	Comments
010.	1927143010	[1]	FILTER,ASSY(FUEL)	0.0000(lbs); 0.000
010.	1552143015	[1]	FILTER,ASSY(FUEL)	1.2980(lbs); 0.590
030.	3453042620	[1]	ASSY TUBE,FUEL	0.1210(lbs); 0.055
040.	0966180300	[1]	TUBE FUEL 300 MM	0.0880(lbs); 0.040
050.	1430142750	[2]	CLIP,PIPE	; <=71695 0.0110(lbs); 0.005
050.	0931888125	[2]	CLAMP,HOSE	; >=71696 0.0022(lbs); 0.001
060.	3453042670	[1]	TUBE,CORRUGATED	0.0220(lbs); 0.010
070.	3275142640	[1]	TUBE,FUEL,ASSY	0.1320(lbs); 0.060
080.	0966150750	[1]	TUBE,FUEL	0.0990(lbs); 0.045
090.	1497142750	[2]	CLIP,PIPE	0.0022(lbs); 0.001
100.	0112350822	[2]	BOLT,SEMS	; <=70618 0.0264(lbs); 0.012
100.	0175450825	[2]	BOLT,FLANGE	; >=70619 0.0220(lbs); 0.010
110.	3275142350	[1]	BRACKET,FUEL FILTER	0.8800(lbs); 0.400
120.	0175450816	[1]	BOLT,FLANGE	0.0242(lbs); 0.011
130.	3407042623	[1]	ASSY TUBE,FUEL	; <=50007 0.0000(lbs); 0.000
130.	3407042624	[1]	TUBE,FUEL,ASSY	; >=50008 0.2090(lbs); 0.095
130.	3407042650	[1]	ASSY TUBE,FUEL	; >=72643 0.2046(lbs); 0.093
140.	0966180600	[1]	ASSY PIPE,FUEL	0.1760(lbs); 0.080
150.	1430142750	[2]	CLIP,PIPE	; <=72642 0.0110(lbs); 0.005
150.	1491142750	[2]	CLIP,PIPE	; >=72643 0.0044(lbs); 0.002
160.	3407042633	[1]	TUBE,FUEL,ASSY	; <=50497 0.0550(lbs); 0.025
160.	3275142630	[1]	ASSY TUBE,FUEL	; >=50498 0.0990(lbs); 0.045
170.	0966140400	[1]	TUBE,FUEL	; <=50497 0.0440(lbs); 0.020
170.	0966140500	[1]	TUBE FUEL 500 MM	; >=50498 0.0660(lbs); 0.030
180.	1497142750	[2]	CLIP,PIPE	0.0022(lbs); 0.001
