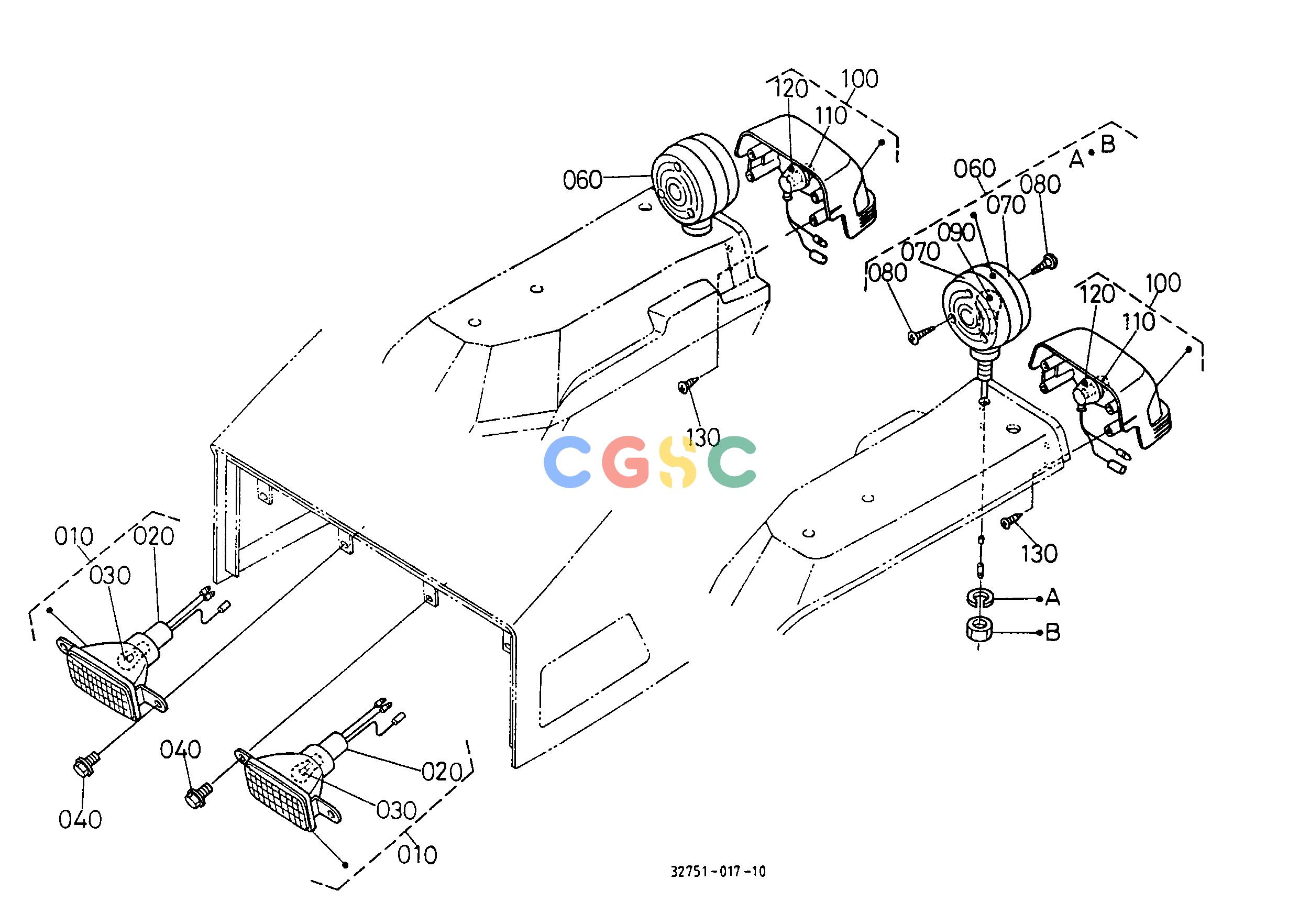

久保田零件查询T04500 LIGHT [OLD TYPE] ## S.No.<=72556 S.No.;<=72556 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6711155700
|
[2] |
ASSY LIGHT,HEAD
|
0.4620(lbs); 0.210
|
| 020. |
6711155780
|
[2] |
SOCKET,HEAD LIGHT
|
0.0660(lbs); 0.030
|
| 030. |
6711155790
|
[2] |
BULB,HEAD LIGHT
|
0.0264(lbs); 0.012
|
| 040. |
0175450612
|
[4] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
| 060. |
3253033610
|
[2] |
ASSY LIGHT,HAZARD
|
0.8360(lbs); 0.380
|
| 070. |
3253091510
|
[4] |
LENS,HAZARD LIGHT
|
0.1870(lbs); 0.085
|
| 080. |
3253091520
|
[12] |
SCREW,TAPPING
|
0.0022(lbs); 0.001
|
| 090. |
3253091530
|
[2] |
BULB,LIGHT
|
0.0440(lbs); 0.020
|
| 100. |
TA04030020
|
[2] |
LIGHT,TAIL
|
1.1000(lbs); 0.500
|
| 110. |
TA04099110
|
[2] |
BULB,LIGHT
|
0.0220(lbs); 0.010
|
| 120. |
TA04099120
|
[2] |
CORD
|
0.0660(lbs); 0.030
|
| 130. |
0361450614
|
[8] |
SCREW,TAPPING
|
0.0110(lbs); 0.005
|
