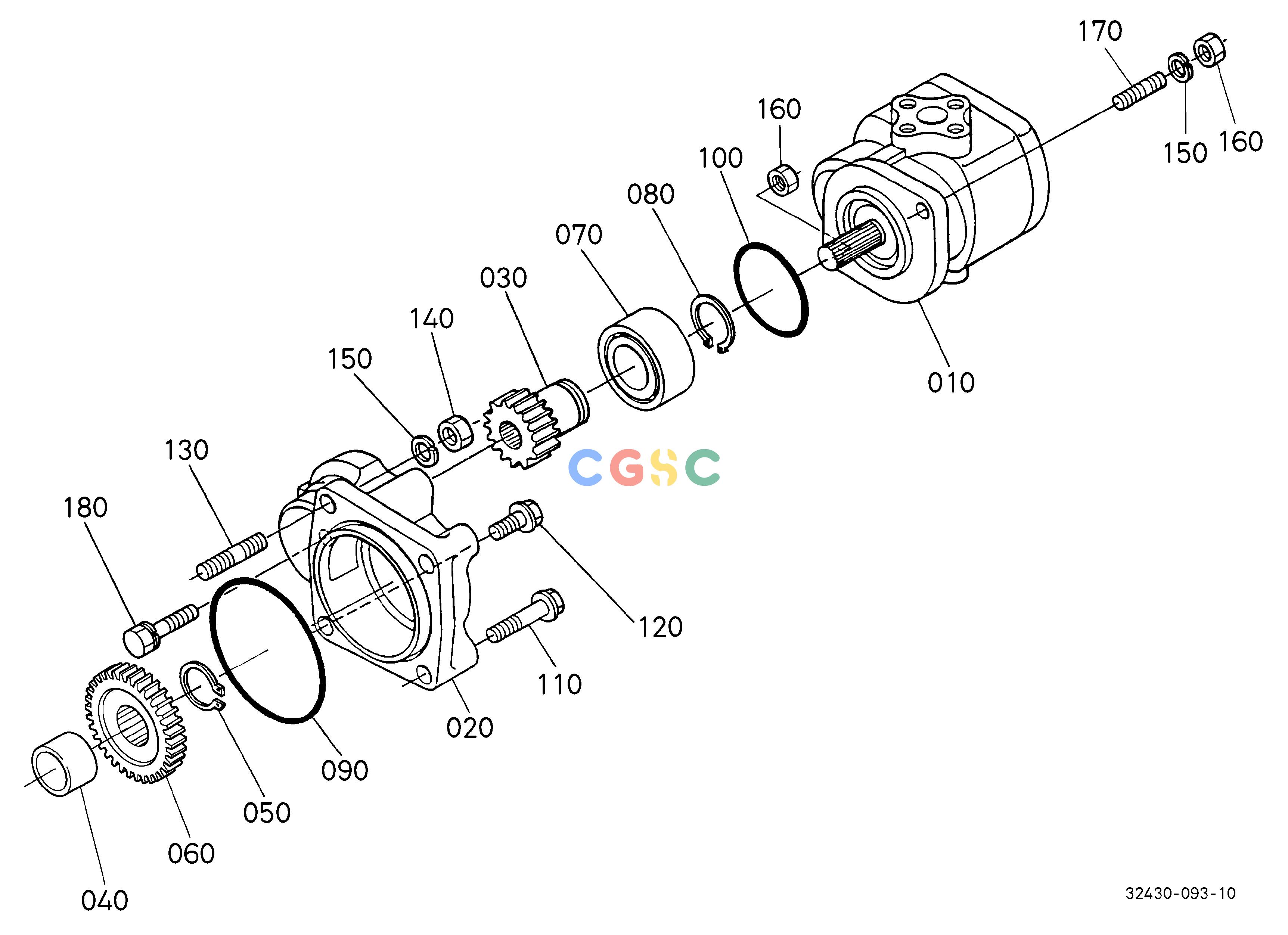

久保田零件查询T09300 HYDRAULIC PUMP HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135176102
|
[1] |
PUMP,ASSY(HYDRAULIC)
|
4.0920(lbs); 1.860
|
| 020. |
3135138613
|
[1] |
HOLDER,PUMP
|
0.8360(lbs); 0.380
|
| 030. |
3139176520
|
[1] |
GEAR
|
0.3520(lbs); 0.160
|
| 040. |
3415037820
|
[1] |
COLLAR
|
0.1100(lbs); 0.050
|
| 050. |
0461200250
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 060. |
3139137810
|
[1] |
GEAR
|
0.7260(lbs); 0.330
|
| 070. |
0824105205
|
[1] |
BEARING,BALL
|
0.3894(lbs); 0.177
|
| 080. |
0461200250
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 090. |
0481110850
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 100. |
0481110500
|
[1] |
O - RING 2,0 49,5
|
0.0022(lbs); 0.001
|
| 110. |
0175450840
|
[2] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 120. |
0175450820
|
[1] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 130. |
3824036330
|
[1] |
STUD
|
0.0176(lbs); 0.008
|
| 140. |
0215650080
|
[1] |
HEX.NUT
|
0.0088(lbs); 0.004
|
| 150. |
0451250080
|
[2] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 160. |
0215650080
|
[2] |
HEX.NUT
|
0.0088(lbs); 0.004
|
| 170. |
0151350820
|
[1] |
BOLT,STUD
|
0.0440(lbs); 0.020
|
| 180. |
0112350840
|
[1] |
BOLT,SEMS
|
0.0396(lbs); 0.018
|
