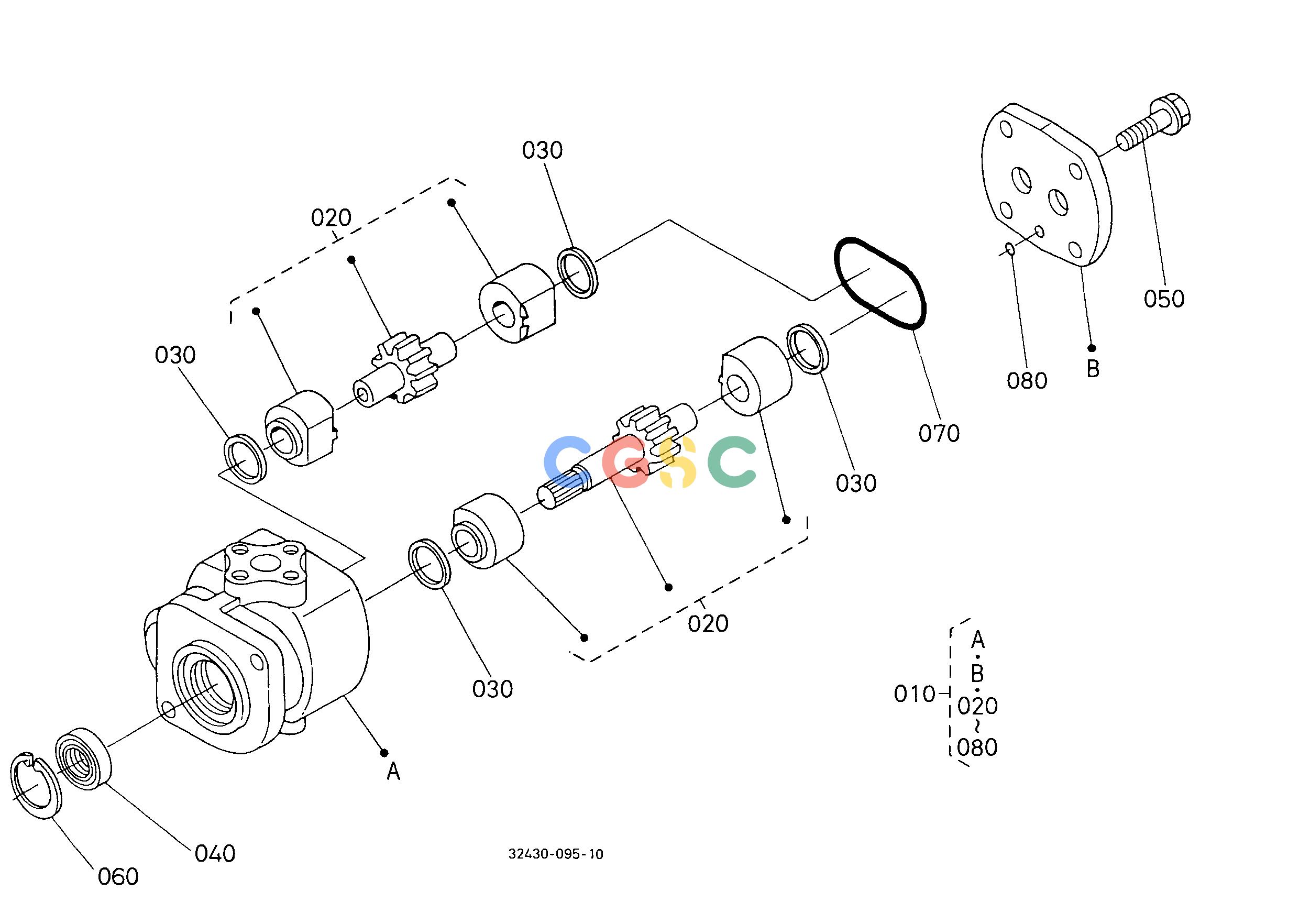

久保田零件查询T09400 HYDRAULIC PUMP [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135176102
|
[1] |
PUMP,ASSY(HYDRAULIC)
|
4.0920(lbs); 1.860
|
| 020. |
3135176202
|
[1] |
COMP.GEAR,HYD.PUMP
|
1.0780(lbs); 0.490
|
| 030. |
3818076172
|
[4] |
SQUARE RING
|
0.0044(lbs); 0.002
|
| 040. |
3138176390
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 050. |
0175451030
|
[4] |
BOLT,FLANGE
|
0.0660(lbs); 0.030
|
| 060. |
0461100300
|
[1] |
CIR-CLIP,INTERNAL
|
0.0088(lbs); 0.004
|
| 070. |
0481050550
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 080. |
0481000050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481700050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
