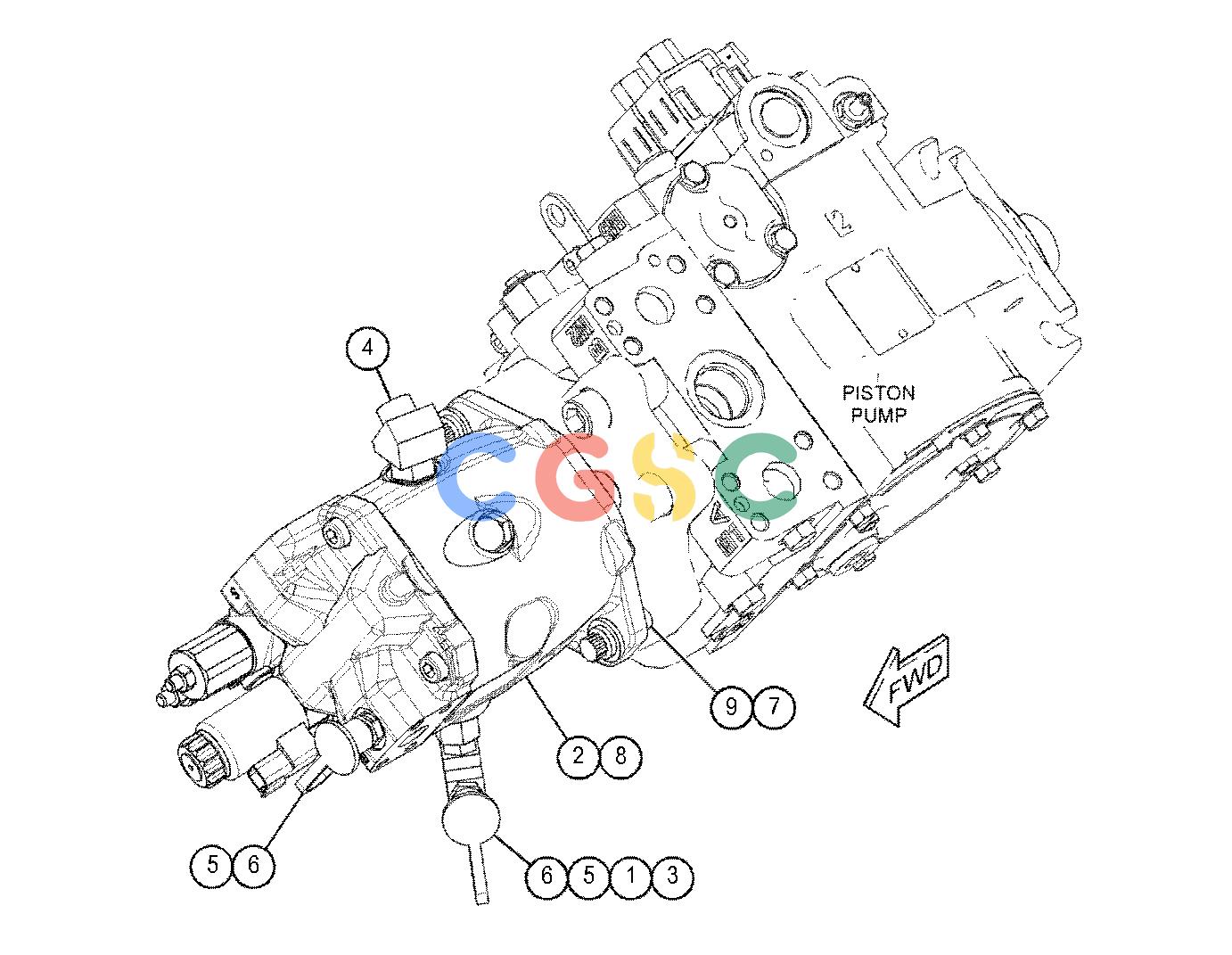

卡特零件查询（AP500F） 447-9860: PUMP & MTG GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
385 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 2. | 396-7172Y | [1] | PUMP GP-PISTON | |
| 3. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 4. | 148-8354 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 5. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 6. | 6V-0852 | [2] | CAP-DUST | |
| 7. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 8T-5049 | [1] | SEAL-O-RING | |
| 9. | 9X-2508 | [2] | BOLT-12 POINT HEAD(1/2-13X1.25-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
