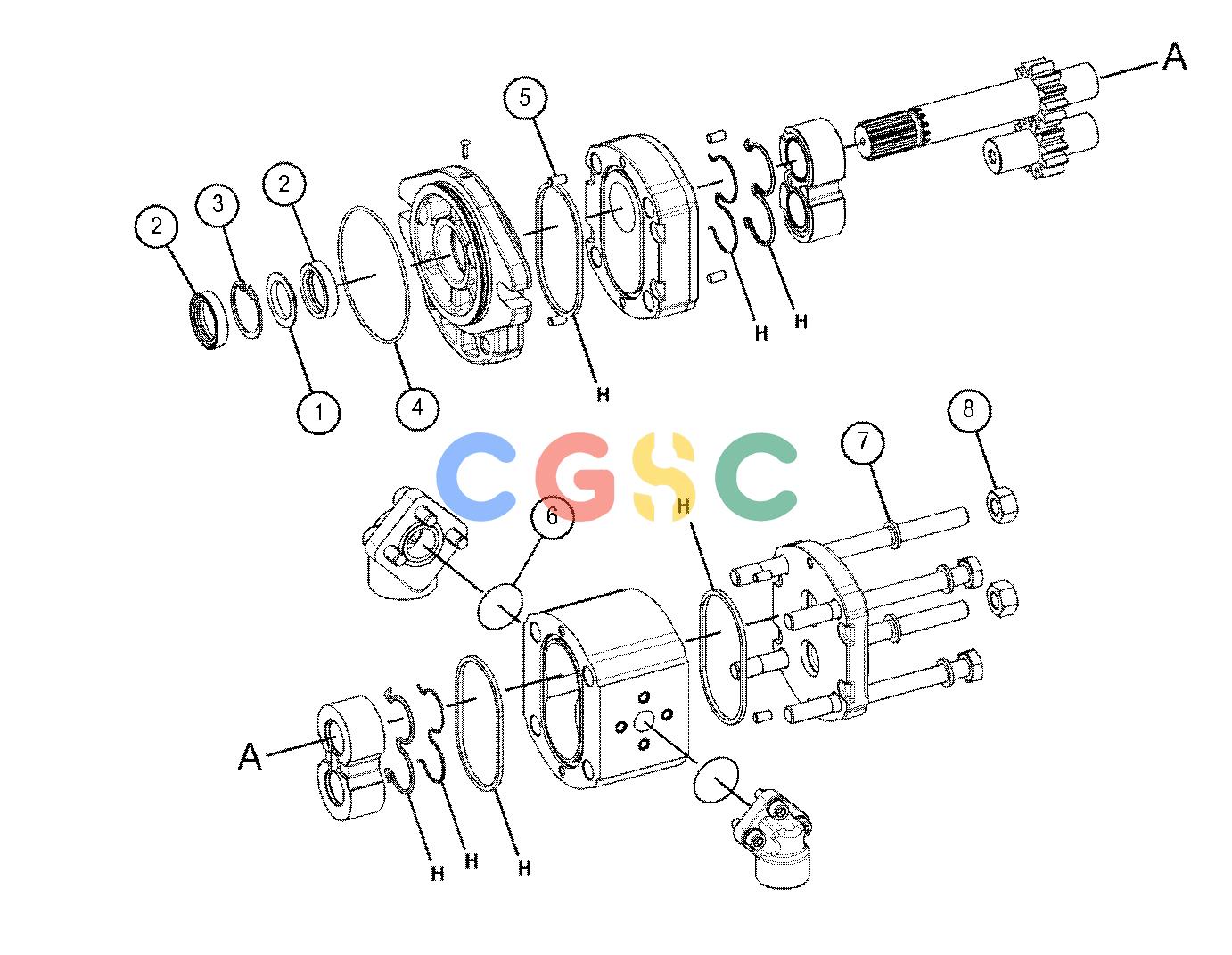

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 442-6237J | [1] | WASHER-BACKUP | |
| 2. | 455-1570J | [2] | SEAL-LIP TYPE | |
| 3. | 095-0936J | [1] | RING-RETAINING | |
| 4. | 6V-3865J | [1] | SEAL-O-RING | |
| 5. | 150-5785 | [6] | DOWEL | |
| 6. | 033-6034 | [2] | SEAL-O-RING | |
| 7. | 7X-0608 | [4] | WASHER-HARD(10.2X16X2-MM THK) | |
| 8. | 2Y-5829M | [2] | NUT(M10X1.5-THD) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 462-1138J | [1] | KIT-SEAL | ||
| (ALSO INCLUDES PARTS MARKED 'H' IN GRAPHIC) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
