卡特零件查询（AP500F） 433-7590: PUMP GP-GEAR
广数供应链运营团队, 17 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 442-6237J | [1] | WASHER-BACKUP | |
| 2. | 455-1570J | [2] | SEAL-LIP TYPE | |
| 3. | 095-0936J | [1] | RING-RETAINING | |
| 4. | 150-5785 | [4] | DOWEL | |
| 5. | 469-2331 | [1] | COIL-SOLENOID | |
| 6. | 465-2440 | [1] | VALVE GP-SOLENOID(HYDRAULIC FAN) | |
| | 8L-2779 | [1] | SEAL-O-RING | |
| | 033-6033 | [2] | SEAL-O-RING | |
| | 123-3132 | [2] | RING-BACKUP | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 7. | 195-3042 | [4] | BOLT-SOCKET HEAD(M10X1.5X115-MM) | |
| 8. | 7X-0608 | [4] | WASHER-HARD(10.2X16X2-MM THK) | |
| | | | |

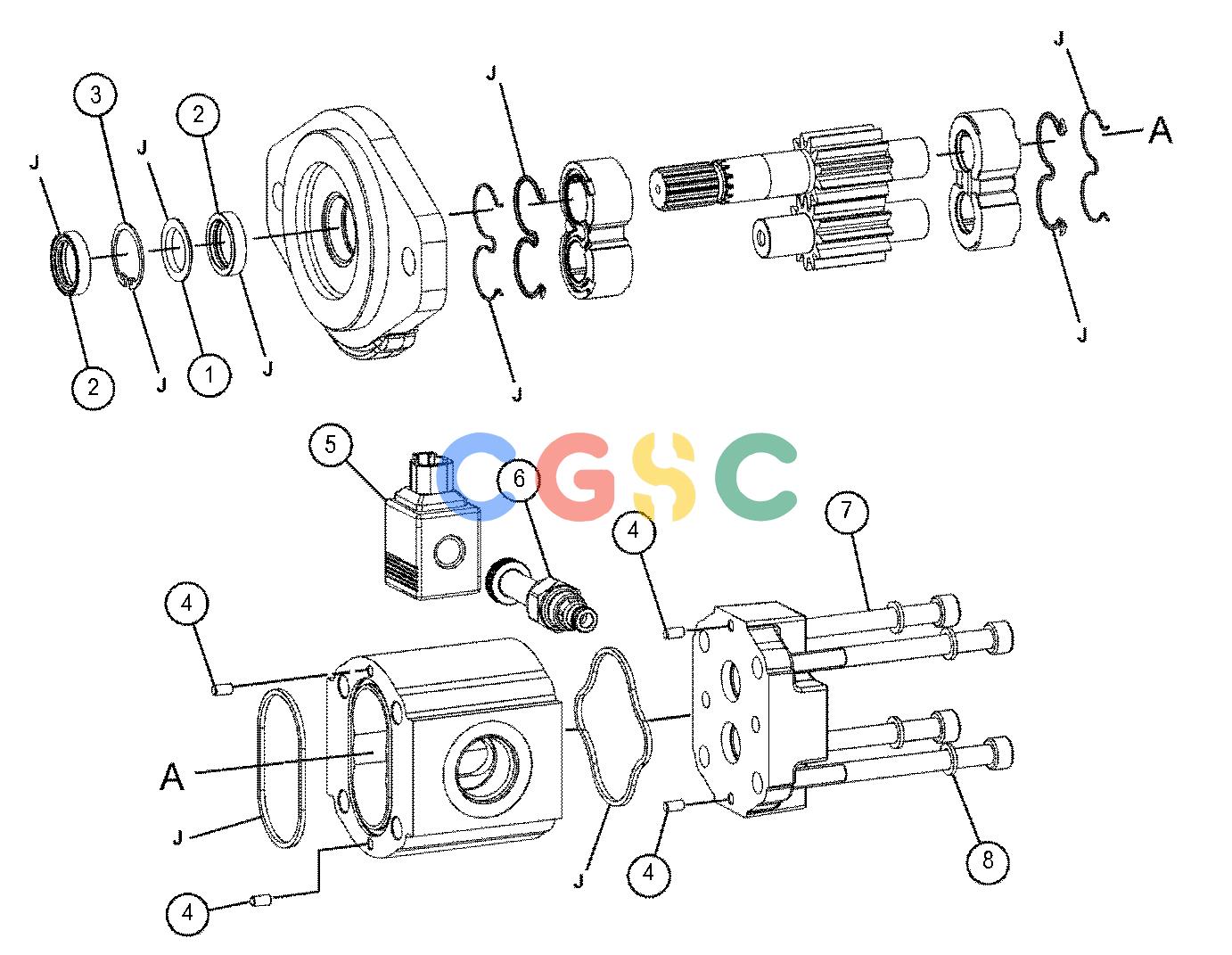

| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 465-2429 | [1] | KIT-SEAL | |
| | | | (INCLUDES PARTS MARKED 'J' IN THE GRAPHIC) |
| | J | | KIT MARKED J INCLUDES PART(S) MARKED J |
