卡特零件查询（AP500F） 482-1669: SHAFT GP-DRIVE
广数供应链运营团队, 17 02月, 2025，浏览：
425 次

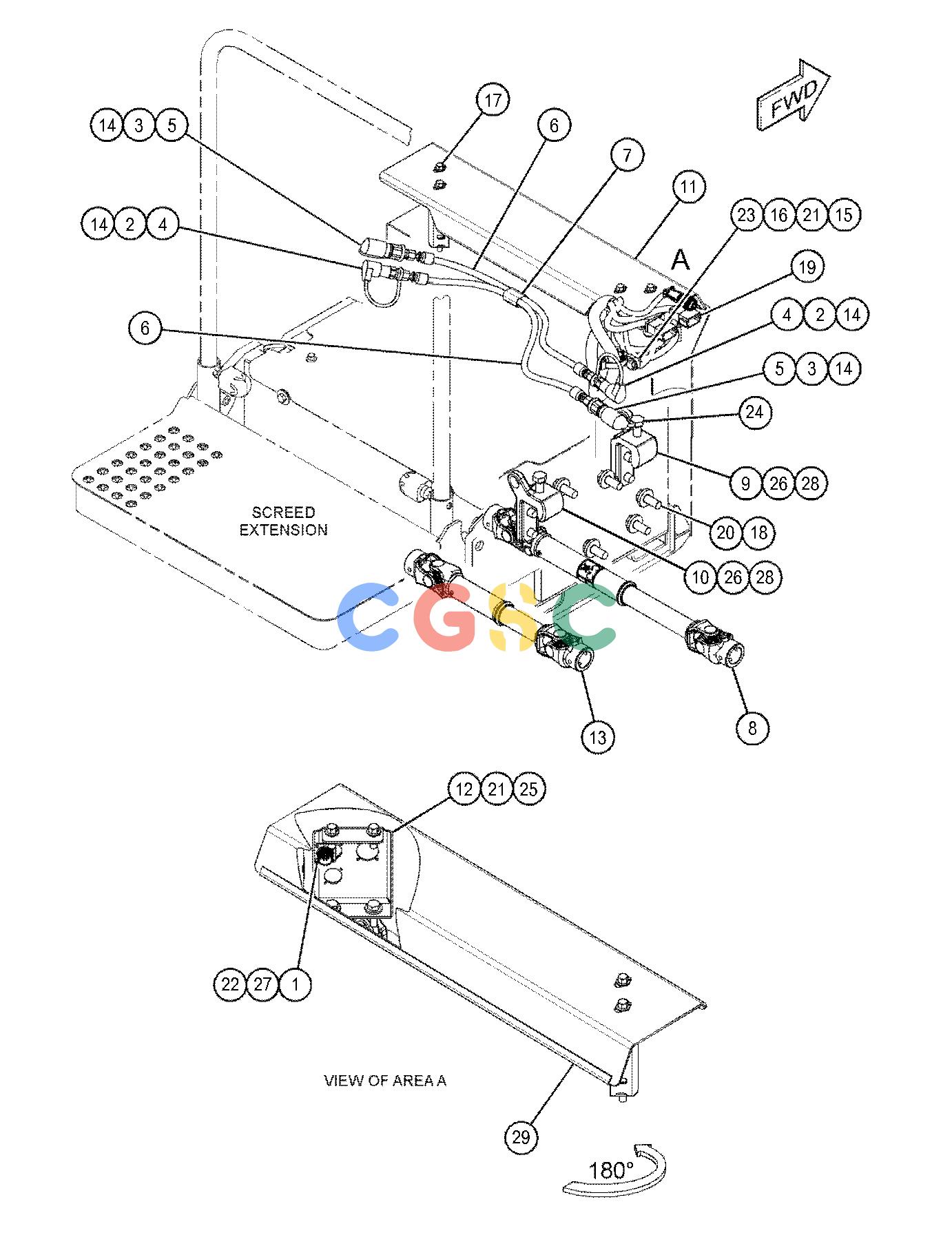

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 132-8485 | [1] | NUT-RING | |
| 2. | 152-8181 | [2] | FITTING(QUICK DISCONNECT, MALE) | |
| 3. | 204-5098 | [2] | FITTING AS(QUICK DISCONNECT, FEMALE) | |
| 4. | 214-1446 | [2] | CAP-DUST | |
| 5. | 214-1447 | [2] | CAP-DUST | |
| 6. | 430-5454BI | [2] | HOSE AS | |
| 7. | 431-0680 | [1] | STRAP | |
| 8. | 440-0767BY | [1] | SHAFT GP-DRIVE | |
| 9. | 451-2603 | [1] | HOOK | |
| 10. | 451-2604 | [1] | HOOK | |
| 11. | 456-4491 | [1] | COVER | |
| 12. | 456-4493 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 13. | B | [1] | SHAFT |
| 14. | 148-8325 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 15. | 204-2281 | [1] | STRAP-CABLE | |
| 16. | 204-8000 | [1] | MOUNTING-CABLE TIE | |
| 17. | 342-9914M | [4] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 18. | 3E-9411 | [5] | WASHER-HARD(17.5X38X6-MM THK) | |
| 19. | 438-1044Y | [1] | HARNESS AS-SCREED(JUMPER) | |
| 20. | 7X-2553M | [5] | BOLT(M16X2X40-MM) | |
| 21. | 7X-7729 | [5] | WASHER(11X25X3-MM THK) | |
| 22. | 8C-8560 | [2] | SCREW-LOCK(4-40X0.5-IN) | |
| 23. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 24. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 25. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 26. | 8T-4779M | [4] | BOLT(M16X2X35-MM) | |
| 27. | 9B-1117 | [2] | LOCKWASHER | |
| 28. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 29. | 7X-7877E | | STRIP-EDGE(71-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
