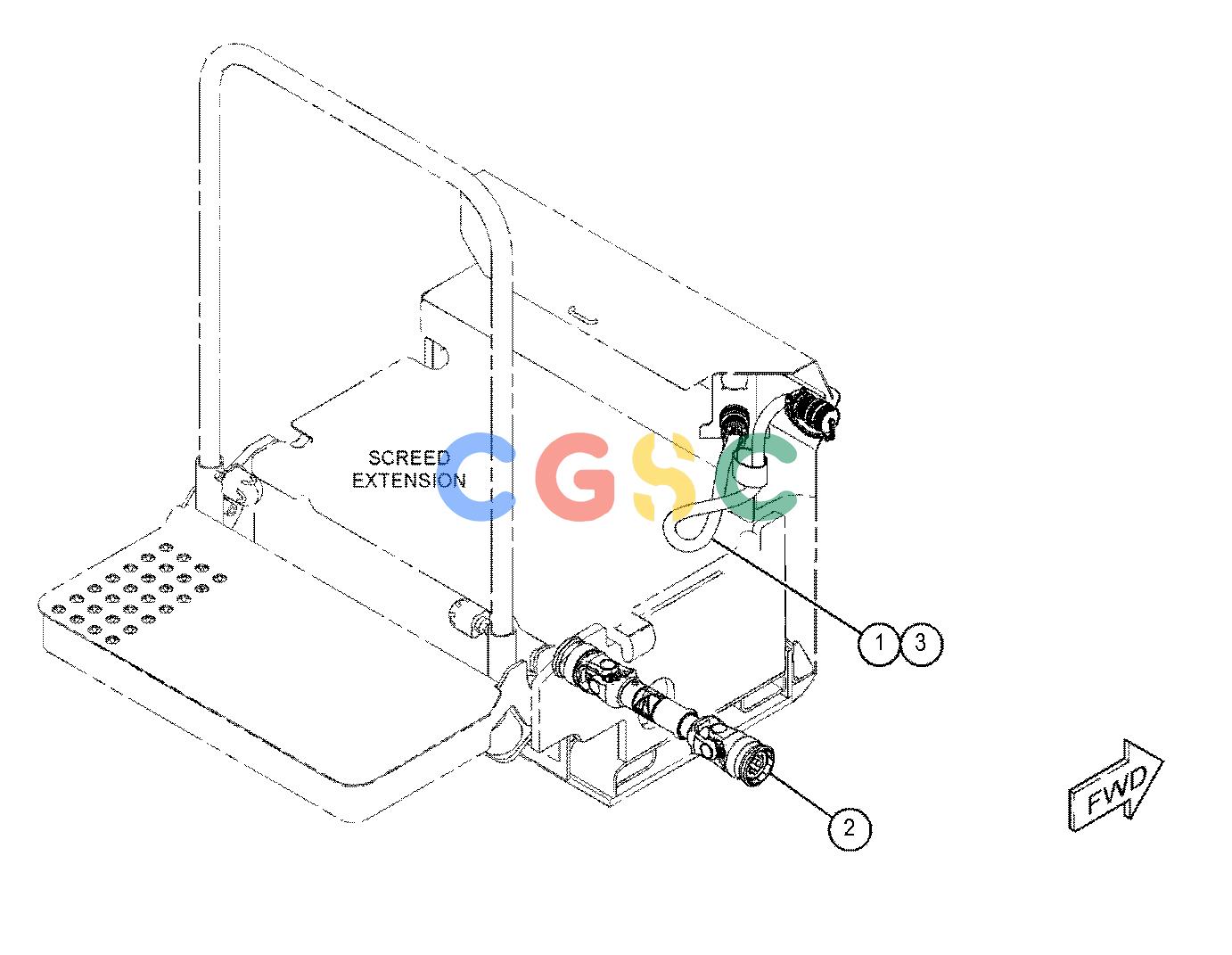

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 364-4568 | [1] | STRAP | |
| 2. | 474-5724B | [1] | SHAFT | |
| (TO BE USED ON SE50V) | ||||
| -OR- | ||||
| 474-5725B | [1] | SHAFT | ||
| (TO BE USED ON SE60V) | ||||
| 3. | 475-0301 | [1] | HARNESS AS-SCREED | |
| 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | ||
| 474-7566 | [1] | CAP AS-CONNECTOR | ||
| 150-3033F | [4] | ELBOW AS | ||
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 4J-5477 | [1] | SEAL-O-RING | ||
| 8T-0164 | [1] | ELBOW | ||
| B | USE AS REQUIRED | |||
| F | NOT SHOWN | |||
