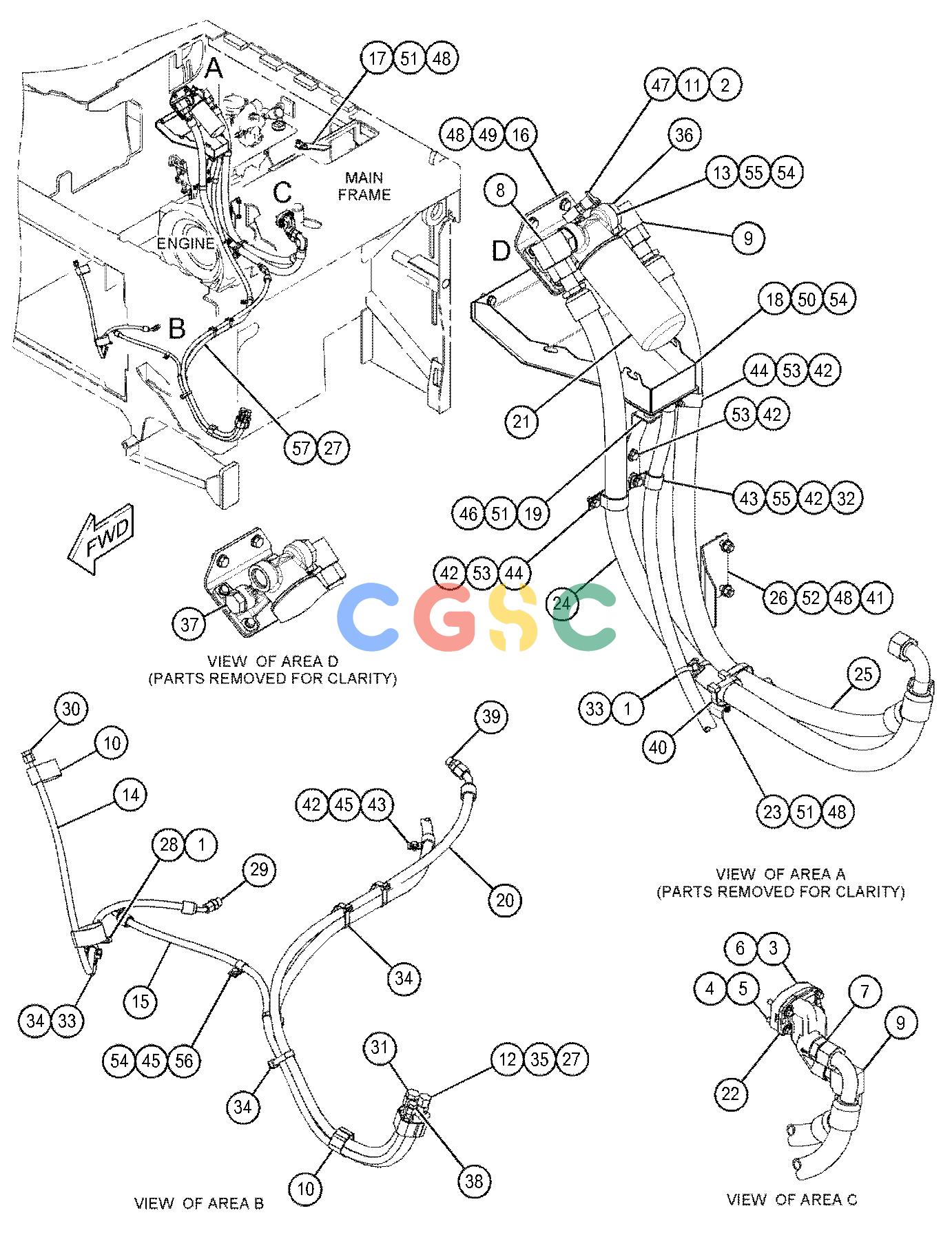

卡特零件查询（AP500F） 459-7303: FILTER GP-ENGINE OIL
广数供应链运营团队, 17 02月, 2025，浏览：
984 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [3] | STRAP-CABLE | |
| 2. | 7X-3387 | [1] | VALVE AS-FLUID SAMPLING(ENGINE OIL) | |
| 3. | 225-7944 | [1] | GASKET | |
| 4. | 233-9408 | [1] | GASKET | |
| 5. | 235-2451M | [4] | BOLT(M8X1.25X45-MM) | |
| 6. | 244-6872 | [1] | ADAPTER-FILTER | |
| 7. | 309-5137 | [1] | CONNECTOR AS | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 228-7093 | [1] | SEAL-O-RING | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 8. | 319-6220 | [1] | ELBOW AS | |
| | 6V-9008 | [1] | ELBOW | |
| | 228-7093 | [1] | SEAL-O-RING | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 9. | 319-6223 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 8T-6684 | [1] | ELBOW | |
| | 228-7093 | [1] | SEAL-O-RING | |
| | 238-5082 | [1] | SEAL-O-RING | |
| 10. | 364-4568 | [4] | STRAP | |
| 11. | 371-7176 | [1] | ELBOW AS | |
| | 8C-3118 | [1] | ADAPTER-ELBOW | |
| | 8T-7876 | [1] | SEAL-O-RING | |
| 12. | 385-5775 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 131-2171 | [1] | CONNECTOR | |
| 13. | 386-7037 | [1] | ADAPTER AS | |
| 14. | 446-0285I | [1] | HOSE AS | |
| 15. | 453-9414 | [1] | HOSE AS | |
| 16. | 453-9431 | [1] | PLATE AS | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 17. | 453-9432 | [1] | PLATE | |
| 18. | 453-9433 | [1] | PLATE AS | |
| 19. | 453-9434 | [1] | PLATE | |
| 20. | 459-5718I | [1] | HOSE AS | |
| 21. | 462-1171 | [1] | FILTER-ENGINE OIL | |
| 22. | 478-2520 | [1] | ADAPTER | |
| | 340-4212 | [1] | ADAPTER | |
| 23. | 482-0187 | [1] | PLATE | |
| 24. | 482-8760I | [1] | HOSE AS | |
| 25. | 482-8761I | [1] | HOSE AS | |
| 26. | 482-9101 | [1] | PLATE | |
| 27. | 124-6257 | [2] | CLAMP-HOSE | |
| 28. | 132-5789 | [1] | CLIP(LADDER) | |
| 29. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 30. | 165-4934 | [1] | PLUG AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| 31. | 165-4935 | [1] | PLUG AS | |
| | 6V-9510 | [1] | PLUG | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 32. | 198-4776 | [1] | WASHER-HARD(8.8X20X8-MM THK) | |
| 33. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 34. | 204-2281 | [6] | STRAP-CABLE | |
| 35. | 239-5017 | [1] | CAP | |
| 36. | 309-5133 | [1] | PLUG AS | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 37. | 319-6231 | [1] | PLUG AS | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| | 238-5082 | [1] | SEAL-O-RING | |
| 38. | 321-8612 | [1] | PLUG AS | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 39. | 321-8632 | [1] | CONNECTOR AS | |
| | 6V-8632 | [1] | CONNECTOR | |
| | 228-7091 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 40. | 327-0325 | [2] | STRAP-CABLE | |
| 41. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 42. | 5P-4116 | [5] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 43. | 6D-4636 | [2] | CLIP(LOOP) | |
| 44. | 7D-7233 | [2] | CLIP(LOOP) | |
| 45. | 7X-2536M | [2] | BOLT(M8X1.25X14-MM) | |
| 46. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 47. | 8C-3445 | [1] | CAP-DUST | |
| 48. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 49. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 50. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 51. | 8T-4191M | [5] | BOLT(M10X1.5X16-MM) | |
| 52. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 53. | 8T-4200M | [3] | BOLT(M8X1.25X16-MM) | |
| 54. | 8T-4224 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| 55. | 8T-4908M | [5] | BOLT(M8X1.25X25-MM) | |
| 56. | 9M-8406 | [1] | CLIP(LOOP) | |
| 57. | 347-8647E | | HOSE(249-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
