卡特零件查询（AP500F） 443-2084: FAN GP-SUCTION
广数供应链运营团队, 17 02月, 2025，浏览：
883 次

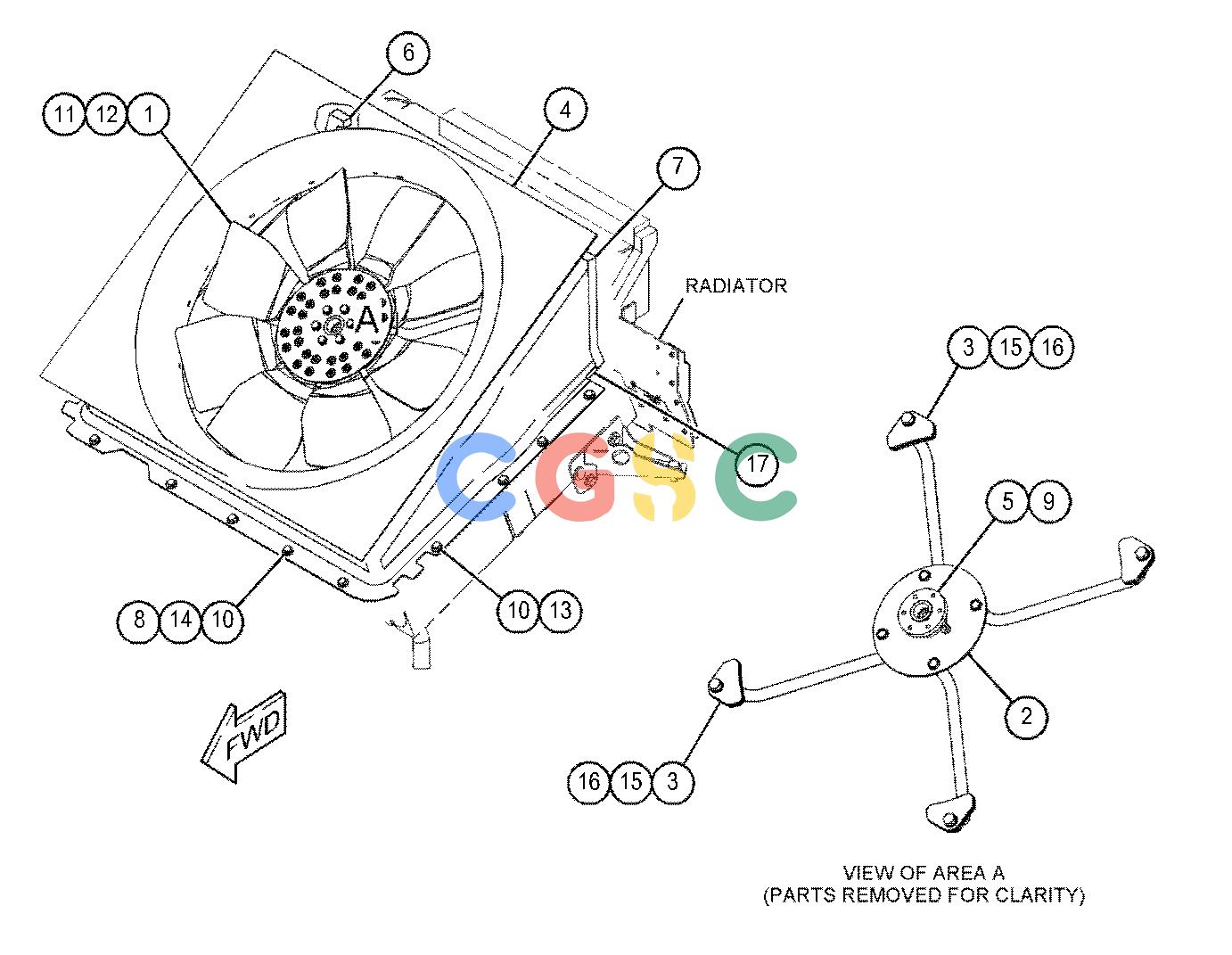

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 270-4274 | [1] | FAN AS(8-BLADE) | |
| 2. | 453-9417 | [1] | SUPPORT AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 355-8941M | [4] | NUT-WELD(M16X2-THD) | |
| 3. | | [4] | PLATE |
| 4. | 453-9421 | [1] | SHROUD AS-FAN | |
| 5. | 453-9422 | [1] | ADAPTER-FAN | |
| 6. | 453-9457 | [1] | FOAM | |
| 7. | 453-9458 | [1] | FOAM | |
| 8. | 344-5675M | [10] | NUT(M10X1.5-THD) | |
| 9. | 7X-0622 | [1] | WASHER(13X24X2.5-MM THK) | |
| 10. | 7X-7729 | [28] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [11] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 14. | 8T-4195M | [5] | BOLT(M10X1.5X30-MM) | |
| 15. | 8T-4779M | [4] | BOLT(M16X2X35-MM) | |
| 16. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 17. | 5P-5930D | | SEAL(0.1-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
