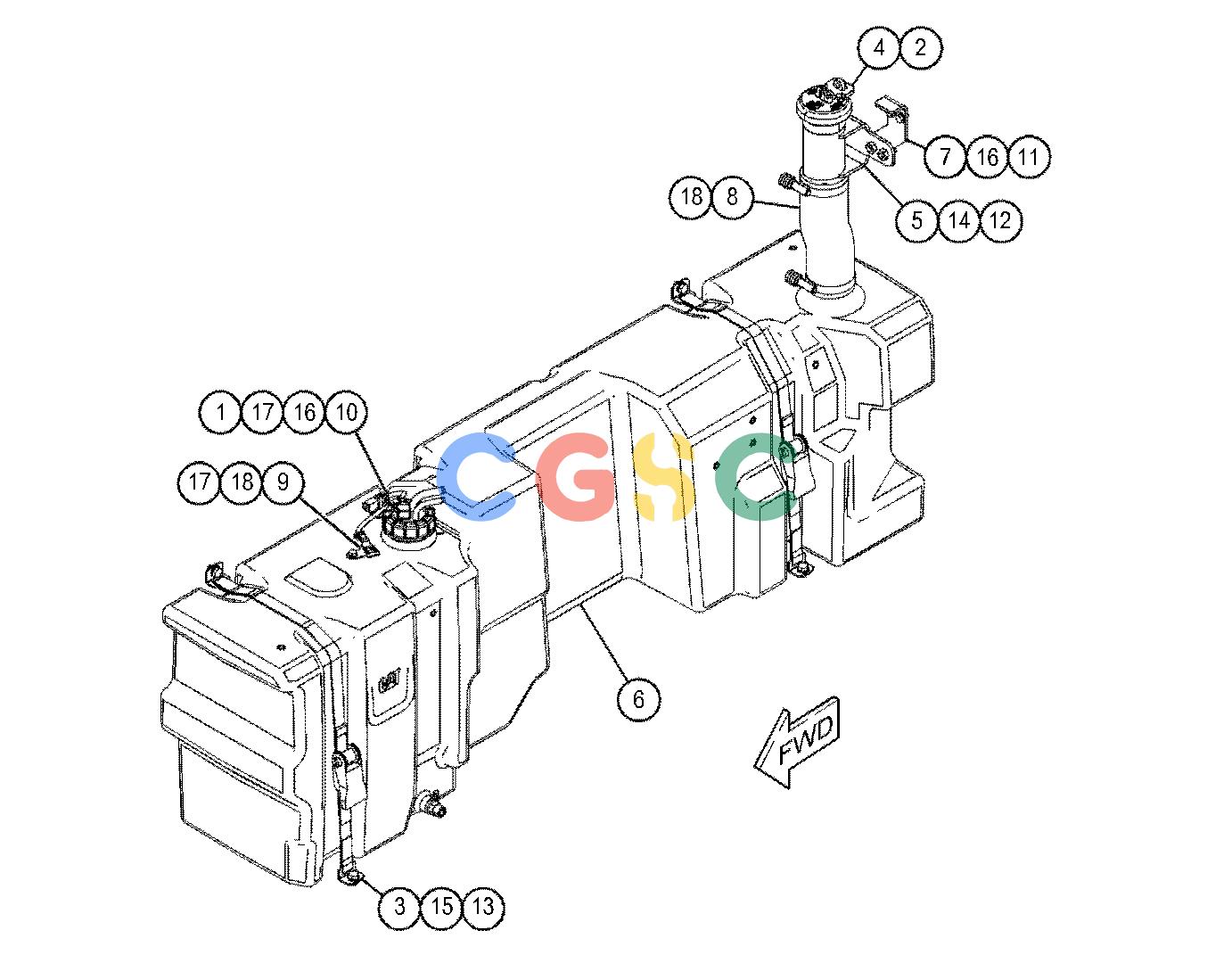

卡特零件查询（AP500F） 443-2085: TANK & MTG GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
1005 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [1] | STRAP-CABLE | |
| 2. | 282-2270 | [1] | STRAINER-FUEL | |
| 3. | 326-6533 | [2] | STRAP AS | |
| 4. | 338-0912 | [1] | CAP AS-FUEL(DEBRIS BOOT) | |
| | 284-9039 | [1] | CAP-FUEL(VENTED) | |
| | 355-8947 | [1] | BOOT-FUEL CAP | |
| 5. | 386-5626 | [1] | FILLER AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 202-6042 | [1] | RING-RETAINING | |
| | 386-5627 | [1] | BRACKET | |
| 6. | 453-9394Y | [1] | TANK GP-FUEL | |
| 7. | 453-9396 | [1] | PLATE | |
| 8. | 453-9398 | [1] | HOSE | |
| 9. | 130-5300 | [1] | CLIP | |
| 10. | 132-5789 | [1] | CLIP(LADDER) | |
| 11. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 12. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 16. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 17. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 8T-4985 | [2] | CLAMP-HOSE | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
