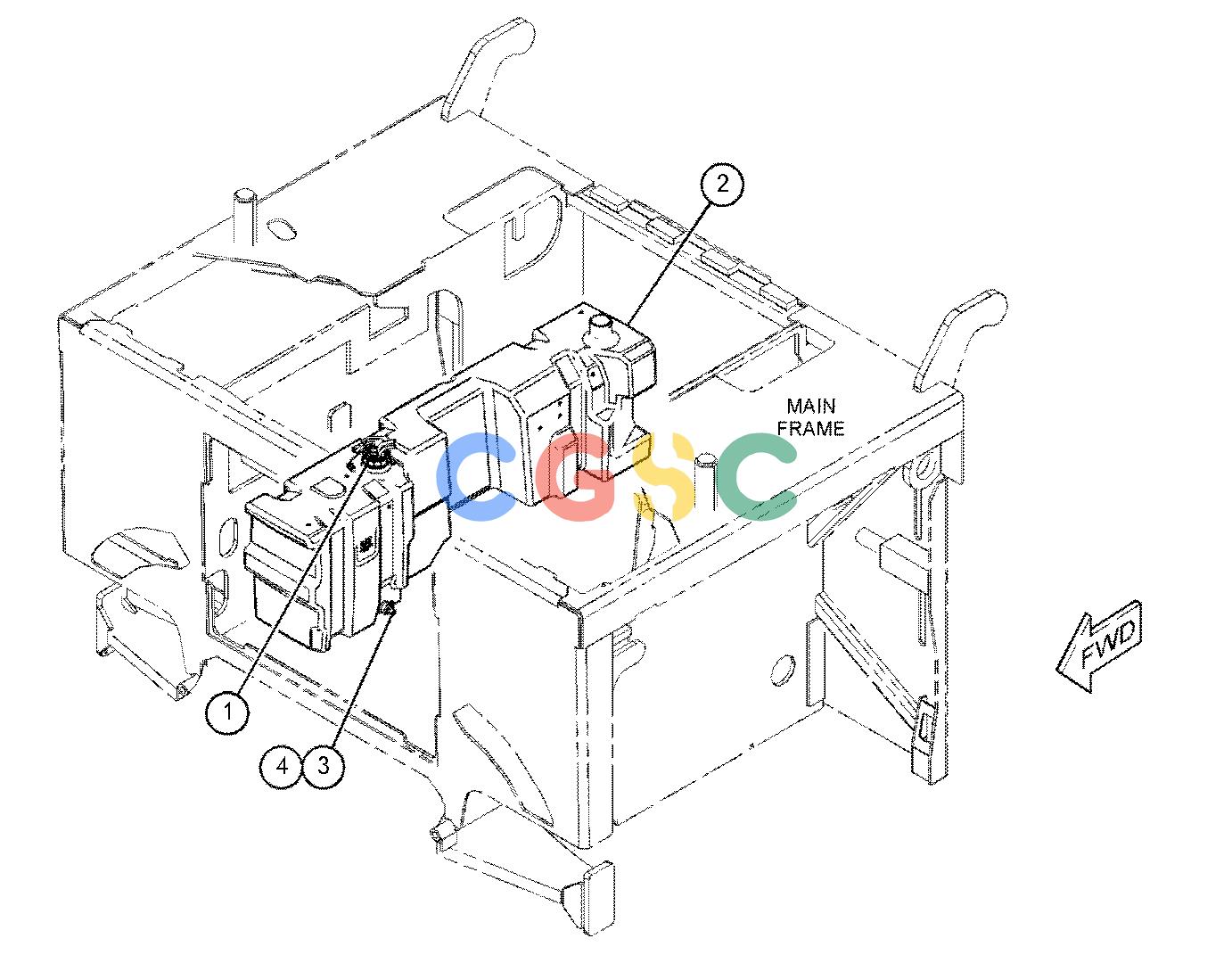

卡特零件查询（AP500F） 453-9394: TANK GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
872 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 433-3061 | [1] | SENDER GP-FUEL LEVEL(TANK) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-3402 | [1] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE) |
| | 462-5431 | [1] | SEAL-O-RING | |
| 2. | 453-9395 | [1] | TANK AS-FUEL | |
| | 265-8970 | [9] | INSERT | |
| 3. | 2S-3440 | [1] | CLAMP-HOSE | |
| 4. | 330-9763 | [1] | CONNECTOR AS | |
| | 8C-6872 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
