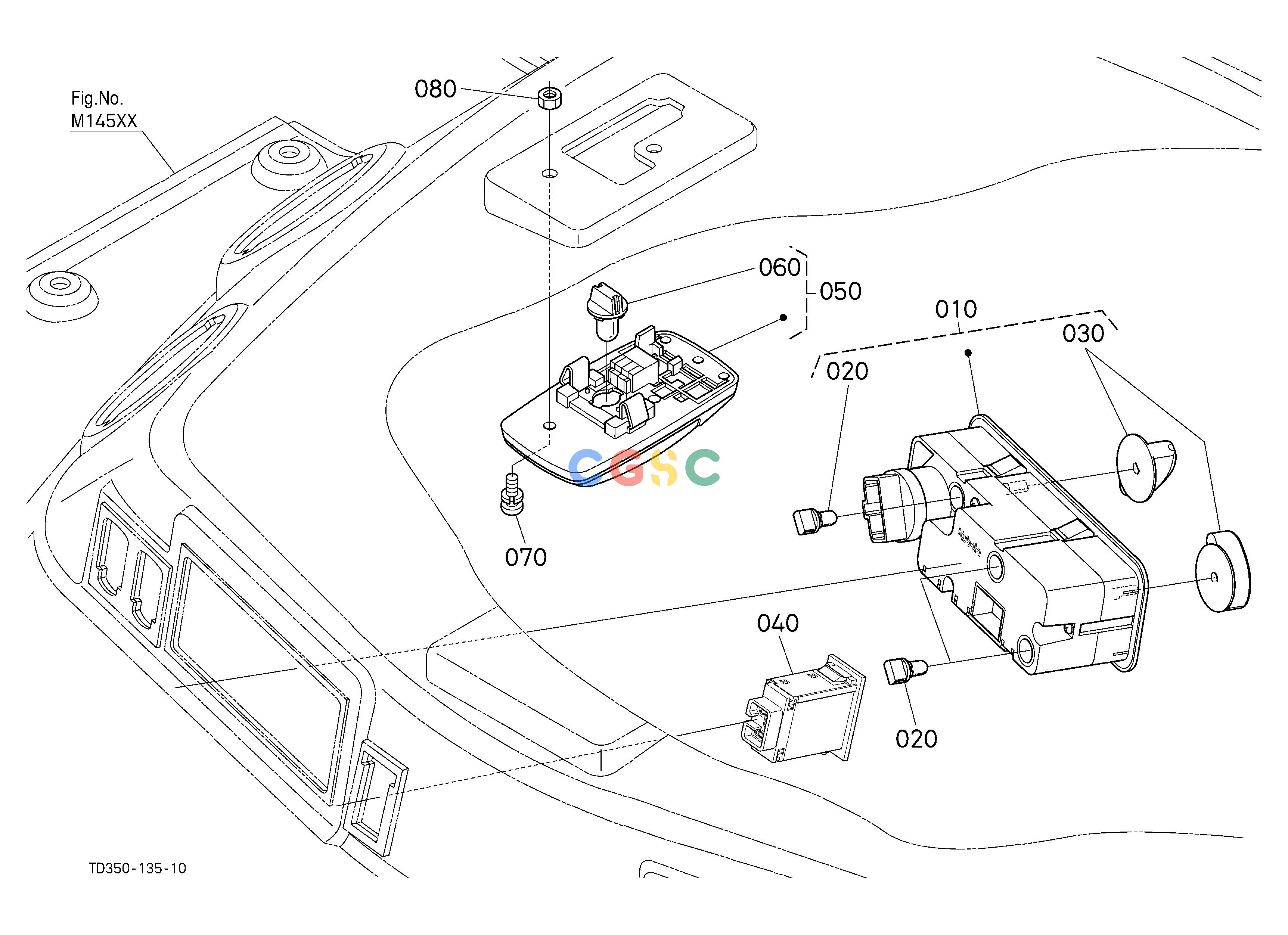

久保田零件查询B11302 AIR-CON.CONTROL PANEL [CA] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T185587234
|
[1] |
ASSY PANEL,HEATER
|
0.4400(lbs); 0.200
|
| 020. |
T127587220
|
[3] |
VALVE,HEATER CONTROL
|
0.0022(lbs); 0.001
|
| 030. |
T127587210
|
[2] |
KNOB,HEATER CONTROL
|
0.0220(lbs); 0.010
|
| 040. |
3C58275100
|
[1] |
SWITCH,DEFOGGER
|
0.0660(lbs); 0.030
|
| 050. |
3C58154210
|
[1] |
LIGHT,ROOM
|
0.1100(lbs); 0.050
|
| 060. |
3C58154220
|
[1] |
BULB,ROOM LIGHT
|
0.0044(lbs); 0.002
|
| 070. |
0302450512
|
[2] |
SCREW,SEMS(PAN HEAD)
|
0.0066(lbs); 0.003
|
| 080. |
0205450050
|
[2] |
HEX.NUT
|
0.0044(lbs); 0.002
|
