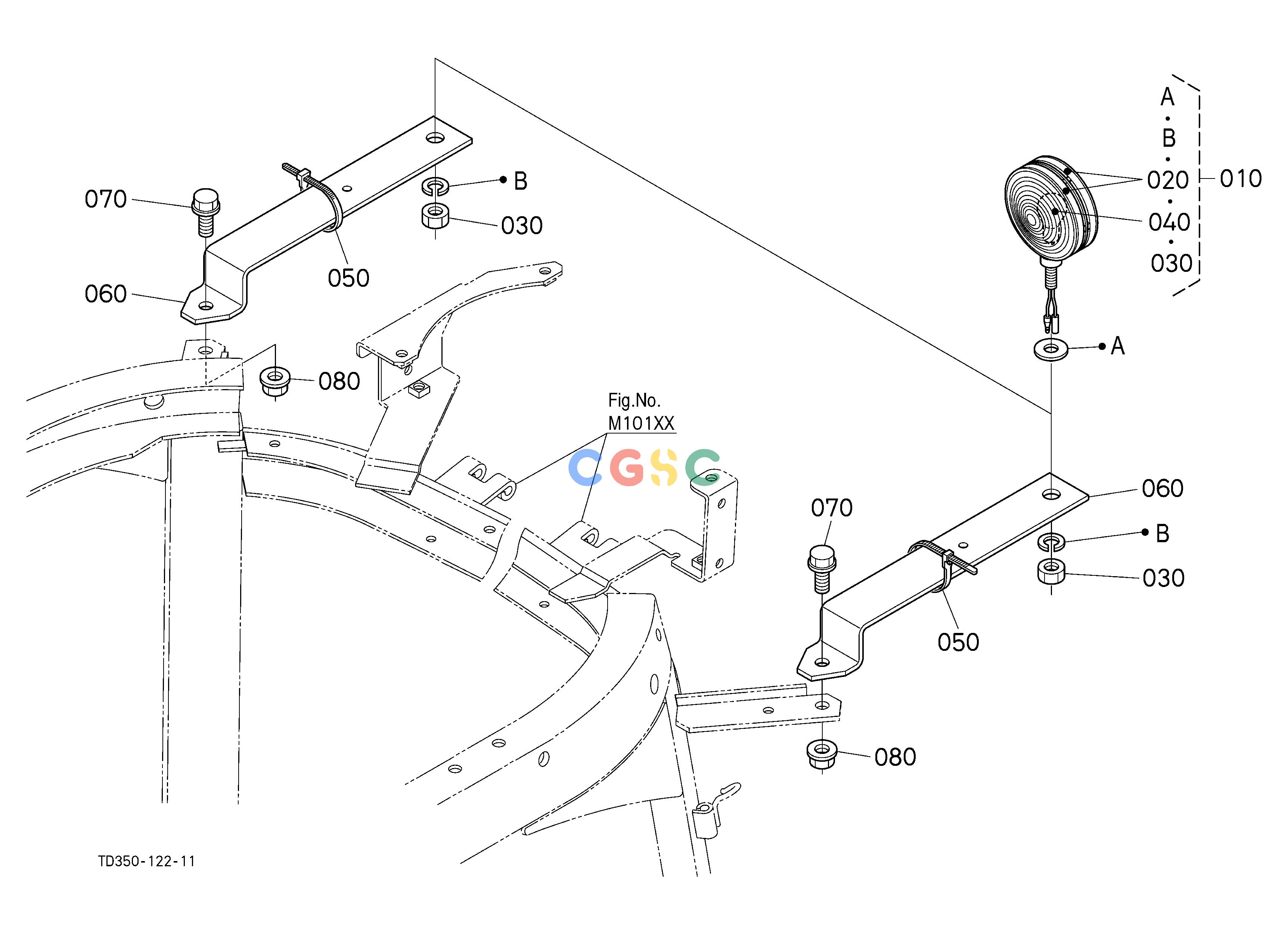

久保田零件查询B33001 HAZARD LIGHT [A] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
686 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3C08175870
|
[2] |
ASSY LAMP,HAZARD
|
0.4070(lbs); 0.185
|
| 020. |
3N34091510
|
[4] |
LENS
|
0.0880(lbs); 0.040
|
| 030. |
3N34091520
|
[2] |
NUT
|
0.0440(lbs); 0.020
|
| 040. |
3N34091530
|
[2] |
BULB
|
0.0264(lbs); 0.012
|
| 050. |
5358164150
|
[2] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 060. |
TD35070970
|
[2] |
STAY(HAZARD LIGHT)
|
1.0340(lbs); 0.470
|
| 070. |
0177451025
|
[2] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 080. |
0277150100
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
