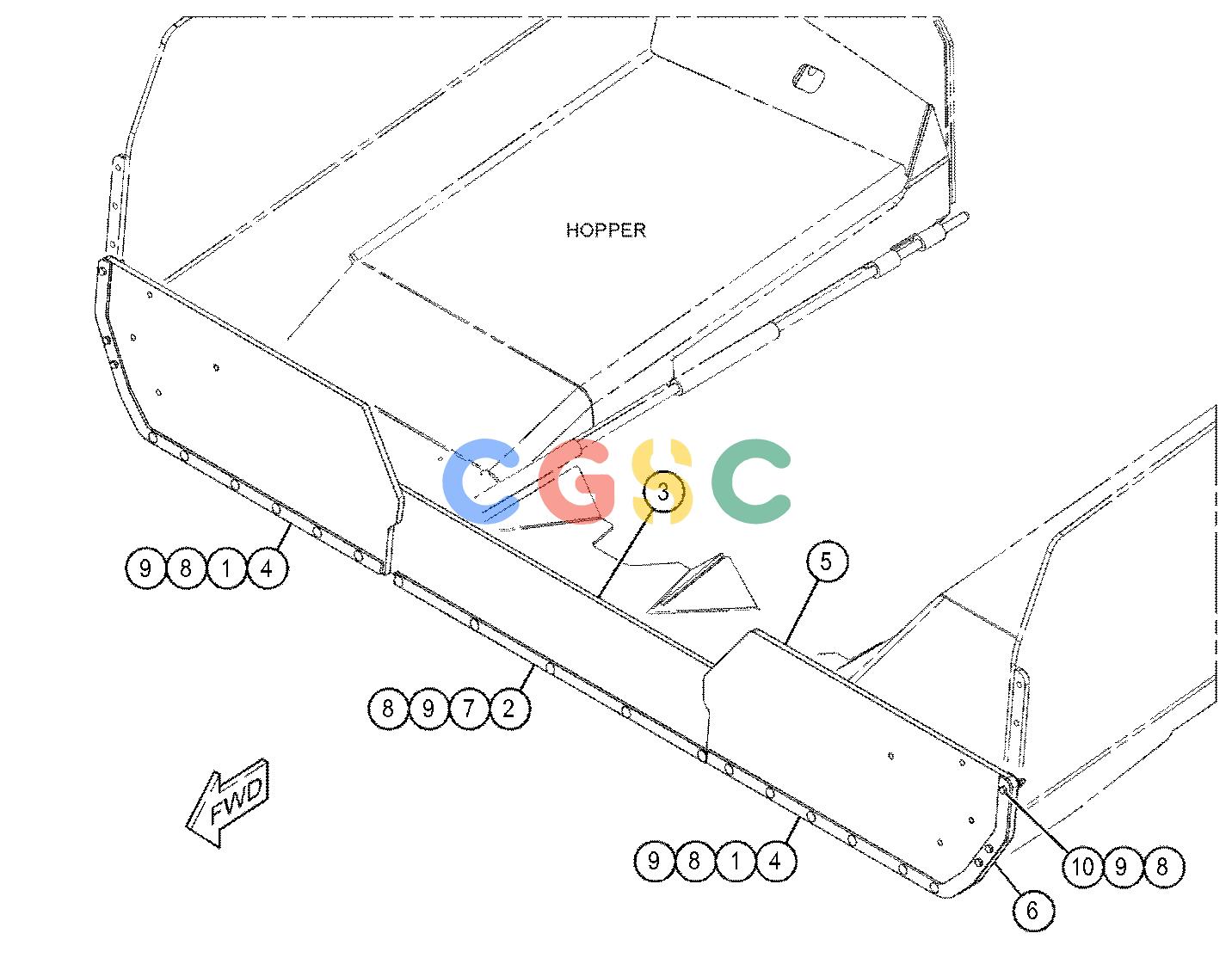

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 252-6307M | [12] | BOLT-CARRIAGE(M12X1.75X65-MM) | |
| 2. | 275-1148 | [1] | PLATE | |
| 3. | 422-4521 | [1] | FLASHING | |
| 4. | 425-0585 | [2] | PLATE | |
| 5. | 425-0586 | [2] | FLASHING | |
| 6. | 459-3934B | [4] | SHIM(3-MM THK) | |
| 7. | M | [5] | BOLT-CARRIAGE(M12X1.75X60-MM) | |
| 8. | 329-3356M | [23] | NUT(M12X1.75-THD) | |
| 9. | 8T-4223 | [23] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8T-4648M | [6] | BOLT(M12X1.75X70-MM) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
