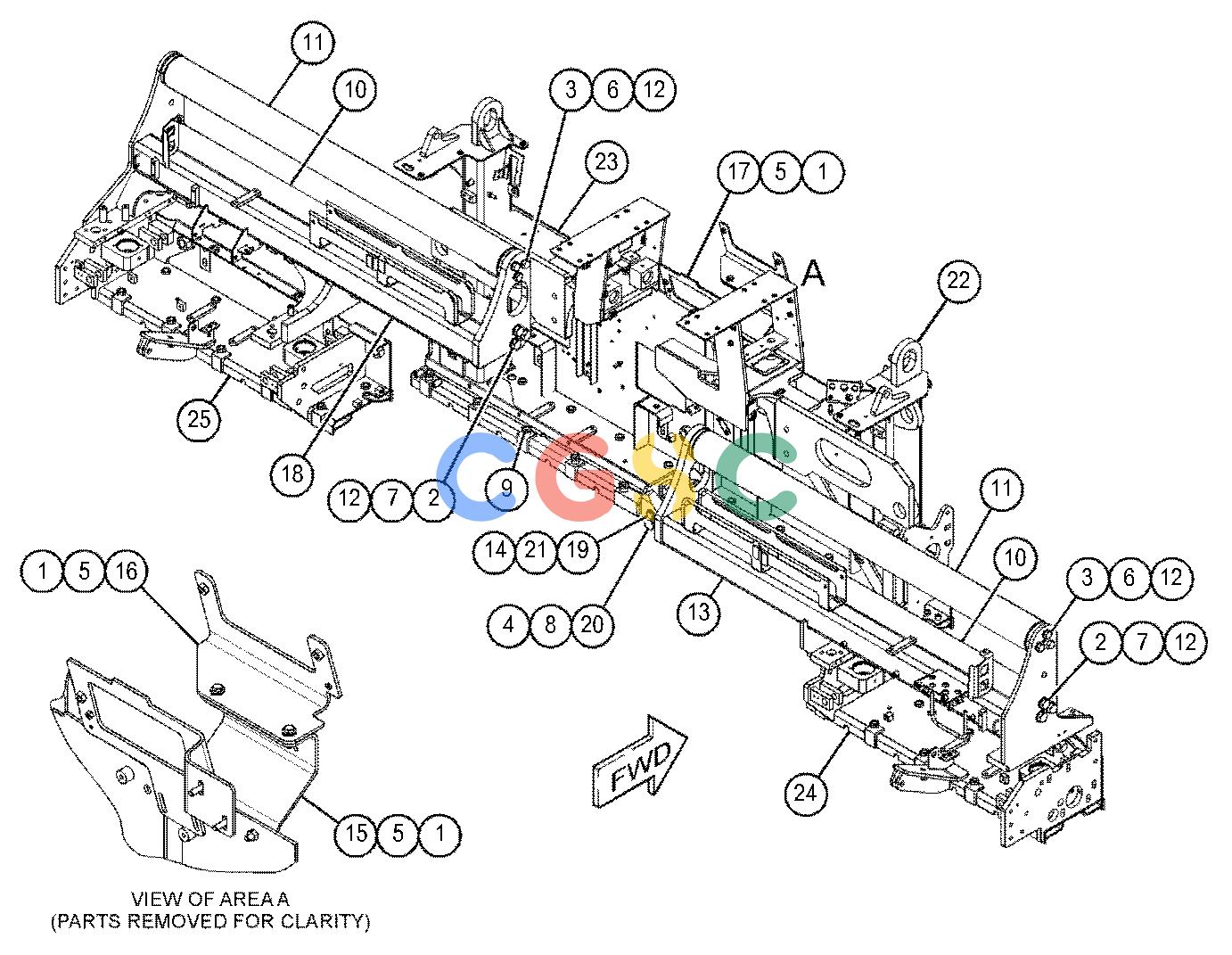

卡特零件查询（AP500F） 522-1494: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
321 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| 2. | 7X-2576M | [12] | BOLT(M24X3X70-MM) | |
| 3. | 8T-4141M | [12] | BOLT(M20X2.5X70-MM) | |
| 4. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 5. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 6. | 8T-4123 | [12] | WASHER(22X35X3.5-MM THK) | |
| 7. | 8T-4167 | [12] | WASHER-HARD(26X44X4-MM THK) | |
| 8. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 9. | 422-4637M | [20] | NUT(M30X2-THD) | |
| 10. | 437-4457 | [2] | TUBE AS | |
| 11. | 446-4865 | [2] | TUBE AS | |
| 12. | 448-3220B | [4] | SHIM(1.6-MM THK) | |
| | 448-3221B | [4] | SHIM(3-MM THK) | |
| 13. | 554-1655 | [1] | FRAME AS(EXTENDER, RH) | |
| 14. | 454-8452 | [2] | RING-RETAINING | |
| 15. | 462-7035 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 16. | 474-7999 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 9X-2032M | [1] | NUT-WELD(M4X0.7-THD) | |
| 17. | 474-8000 | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 9X-2032M | [2] | NUT-WELD(M4X0.7-THD) | |
| 18. | 499-4432 | [1] | FRAME AS-SCREED(EXTENDER, LH) | |
| 19. | 512-1757 | [1] | PIN | |
| 20. | 522-3815 | [1] | PLATE-WIPER | |
| 21. | 528-3259 | [6] | BEARING-SLEEVE | |
| 22. | 552-7119 | [1] | FRAME AS-SCREED(RH) | |
| 23. | 552-7122 | [1] | FRAME AS-SCREED(LH) | |
| 24. | 552-7125 | [1] | FRAME AS(RH) | |
| 25. | 552-7130 | [1] | FRAME AS(LH) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
