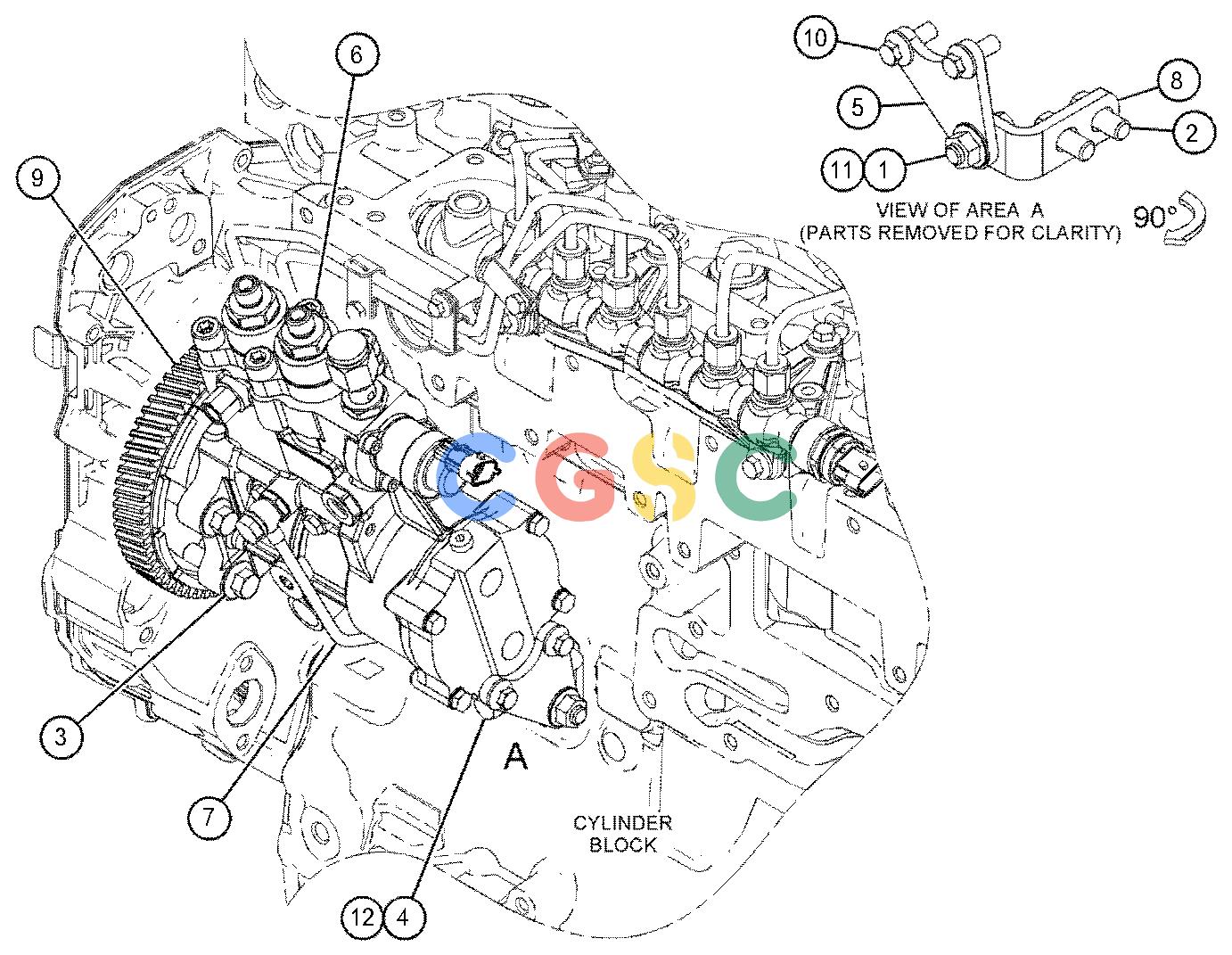

卡特零件查询（AP500F） 415-5523: PUMP GP-FUEL INJECTION
广数供应链运营团队, 17 02月, 2025，浏览：
625 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0654M | [1] | BOLT(M10X1.5X25-MM) | |
| 2. | 100-4830M | [2] | BOLT(M10X1.5X20-MM) | |
| 3. | 286-0123M | [4] | BOLT(M10X1.5X35-MM THK) | |
| 4. | 346-0006 | [1] | BOLT-SPECIAL | |
| 5. | 371-2691 | [1] | BRACKET | |
| 6. | 375-2647Y | [1] | PUMP GP-FUEL INJECTION | |
| 7. | 445-9016 | [1] | LINE AS-OIL | |
| 8. | 449-3333 | [1] | BRACKET | |
| 9. | 500-3055 | [1] | GEAR-FUEL PUMP | |
| 10. | 6I-0217M | [2] | BOLT(M8X1.25X20-MM) | |
| 11. | 175-7141M | [1] | NUT-HEX FLANGE(M10X1.5-THD) | |
| 12. | 346-0007 | [2] | WASHER | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
