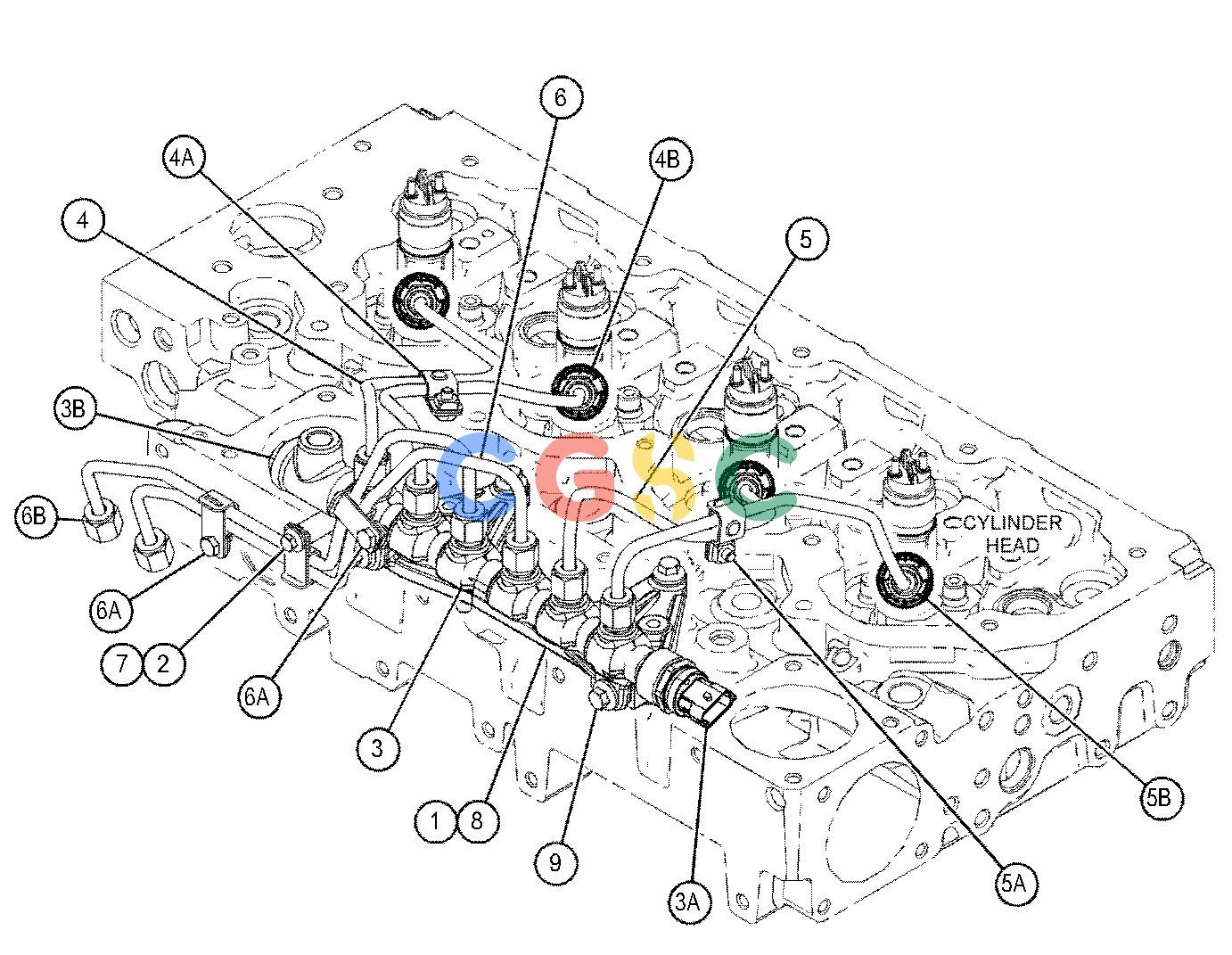

卡特零件查询（AP500F） 415-5527: RAIL GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
635 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 101-3895M | [2] | BOLT(M8X1.25X35-MM) | |
| 2. | 178-2510M | [1] | BOLT(M6X1X45-MM) | |
| 3. | 396-2052 | [1] | RAIL AS-FUEL | |
| 3A. | 375-6988 | [1] | SENSOR(FUEL RAIL PRESSURE) | |
| 3B. | 398-6226 | [1] | VALVE(FUEL RAIL PRESSURE) | |
| 4. | 396-2602 | [1] | LINE AS-FUEL | |
| 4A. | 397-6836 | [1] | CLAMP AS | |
| | 396-2606 | [1] | LINE-FUEL | |
| 4B. | | [1] | LINE-FUEL |
| 5. | 396-2603 | [1] | LINE AS-FUEL | |
| 5A. | 397-6836 | [1] | CLAMP AS | |
| | 396-2608 | [1] | LINE-FUEL | |
| 5B. | 396-2609 | [1] | LINE-FUEL | |
| 6. | 396-2604 | [1] | LINE AS-FUEL | |
| 6A. | 397-6836 | [2] | CLAMP AS | |
| 6B. | 396-2610 | [1] | LINE-FUEL | |
| | 396-2611 | [1] | LINE-FUEL | |
| 7. | 398-7219 | [1] | PILLAR | |
| 8. | 399-8470 | [1] | BRACKET | |
| 9. | 6I-0260M | [4] | BOLT(M8X1.25X25-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 463-8336 | [1] | KIT-CLIP | |
| | | | (INCLUDES PLATE, BRACKET & INSERT) |
| | M | | METRIC PART |
