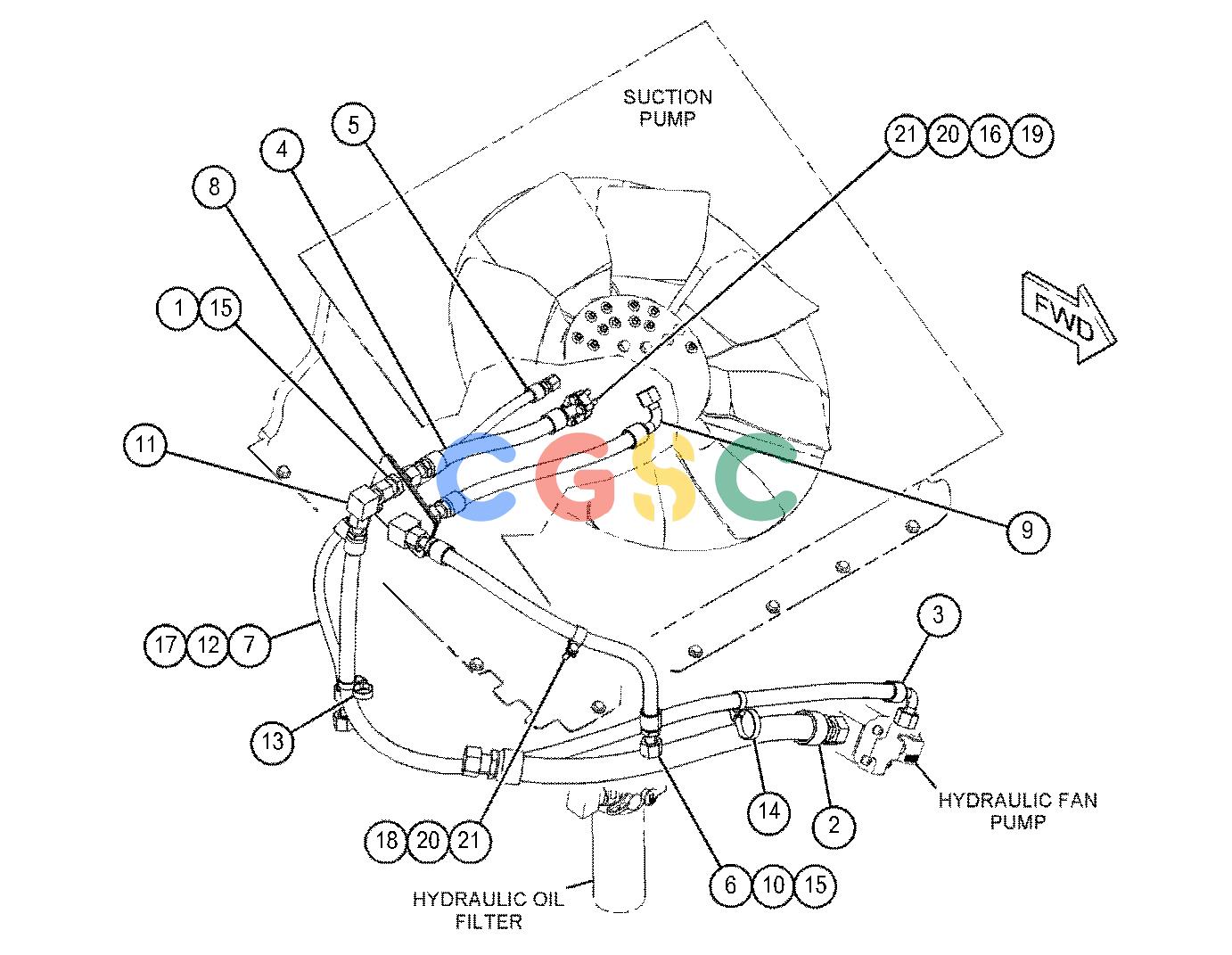

卡特零件查询（AP555F） 447-9833: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 17 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 360-3598 | [1] | ADAPTER AS | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 162-2896 | [1] | UNION | |
| 2. | 447-0644I | [1] | HOSE AS | |
| 3. | 447-0645I | [1] | HOSE AS | |
| 4. | 447-0646I | [1] | HOSE AS | |
| 5. | 447-0647I | [1] | HOSE AS | |
| 6. | 447-0648I | [1] | HOSE AS | |
| 7. | 447-0649I | [1] | HOSE AS | |
| 8. | 447-0650 | [2] | PLATE | |
| 9. | 450-6577I | [1] | HOSE AS | |
| 10. | 148-8376 | [1] | ELBOW AS | |
| | 6V-8983 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 11. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 12. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 13. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 14. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 15. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 16. | 4J-5267 | [1] | SEAL-O-RING | |
| 17. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 18. | 7C-4354 | [1] | CLIP | |
| 19. | 8C-3205 | [2] | FLANGE-HALF | |
| 20. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4196M | [5] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
