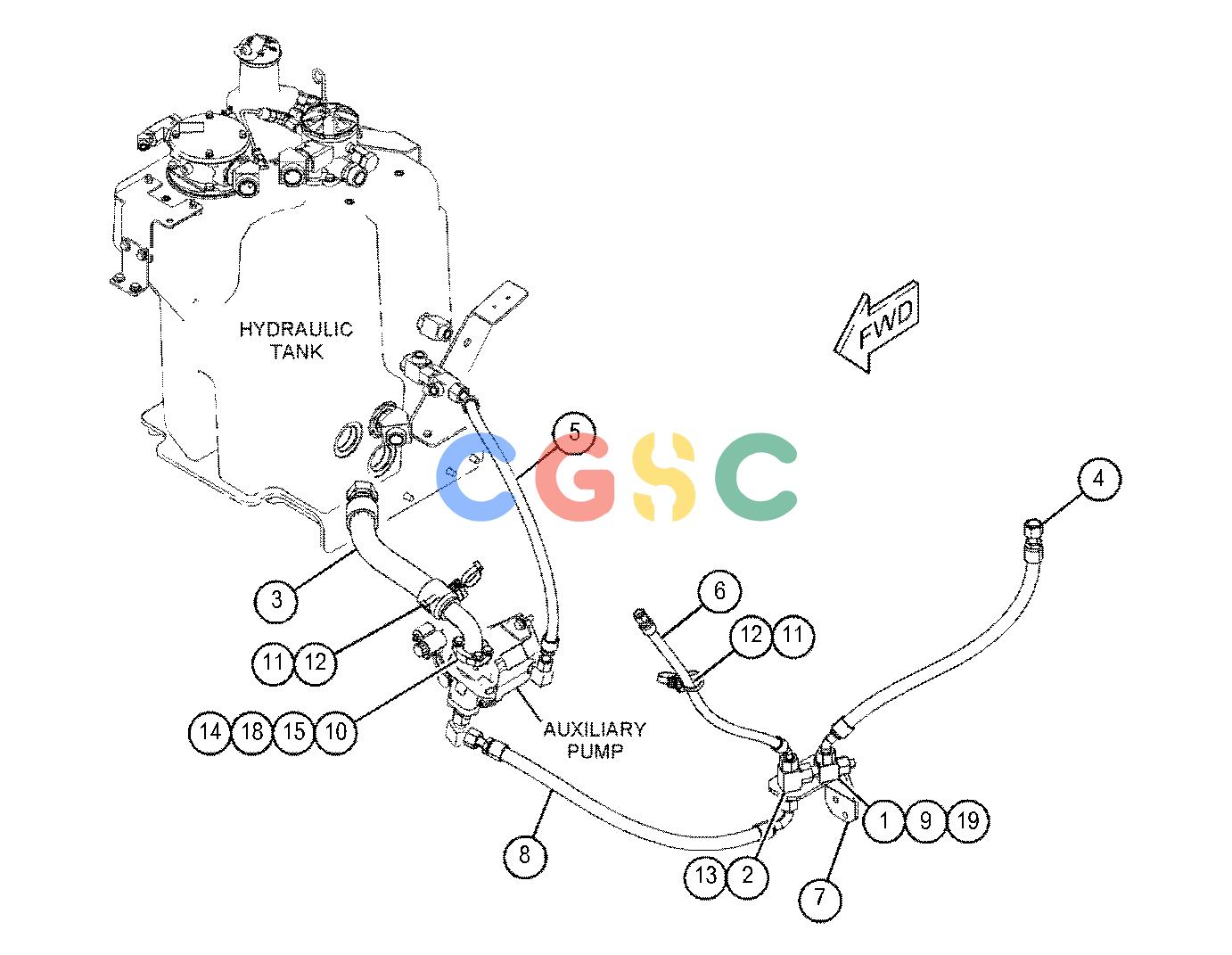

卡特零件查询（AP555F） 456-4294: LINES GP-PUMP
广数供应链运营团队, 17 02月, 2025，浏览：
890 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8449 | [1] | TEE AS-SWIVEL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 6V-9839 | [1] | TEE-SWIVEL | |
| 2. | 164-6862 | [1] | TEE AS | |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 3. | 460-9597I | [1] | HOSE AS | |
| 4. | 460-9598I | [1] | HOSE AS | |
| 5. | 460-9599I | [1] | HOSE AS | |
| 6. | 460-9600I | [1] | HOSE AS | |
| 7. | 498-7471 | [1] | BRACKET | |
| 8. | 467-5667I | [1] | HOSE AS | |
| 9. | 148-8417 | [1] | REDUCER AS(ORFS) | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8941 | [1] | REDUCER | |
| 10. | 1P-4578 | [2] | FLANGE-HALF | |
| 11. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 12. | 204-2281 | [4] | STRAP-CABLE | |
| 13. | 2P-1293 | [1] | LOCKNUT(1-3/16-12-THD) | |
| 14. | 4J-0522 | [1] | SEAL-O-RING | |
| 15. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 18. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 19. | 9X-6580 | [1] | NUT(1-3/16-12-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
