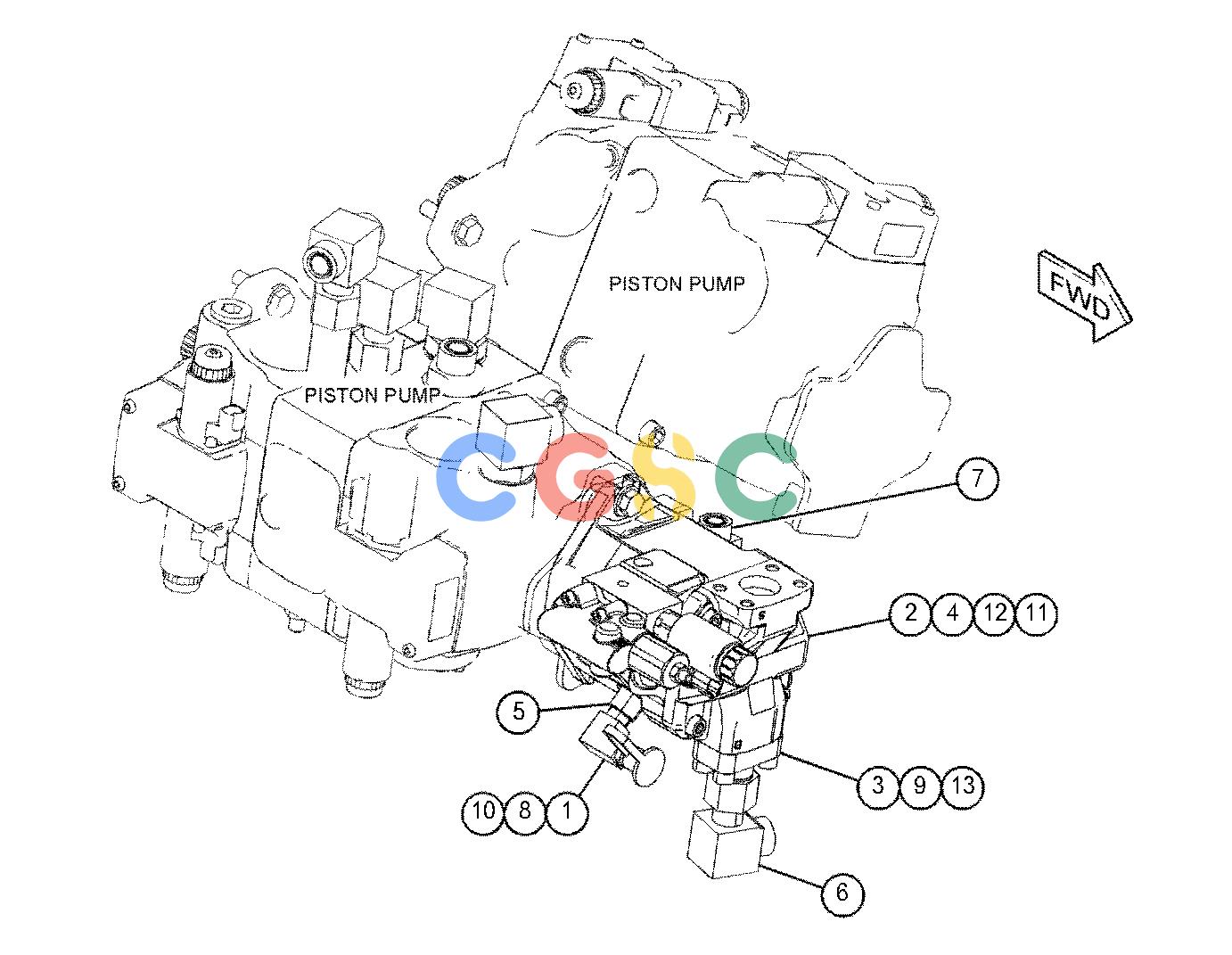

卡特零件查询（AP555F） 456-7114: PUMP & MTG GP-AUXILIARY
广数供应链运营团队, 17 02月, 2025，浏览：
722 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 2. | 439-3822Y | [1] | PUMP GP-PISTON(AUXILIARY) | |
| 3. | 459-0598 | [1] | FLANGE AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7Y-3729 | [1] | FLANGE-SPECIAL | |
| 4. | 107-3120 | [1] | SEAL-O-RING | |
| 5. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 6. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 7. | 150-4048 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8722 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 8. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 9. | 1P-3702 | [1] | SEAL-RECTANGULAR | |
| 10. | 6V-0852 | [1] | CAP-DUST | |
| 11. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 13. | 9X-6032M | [4] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
