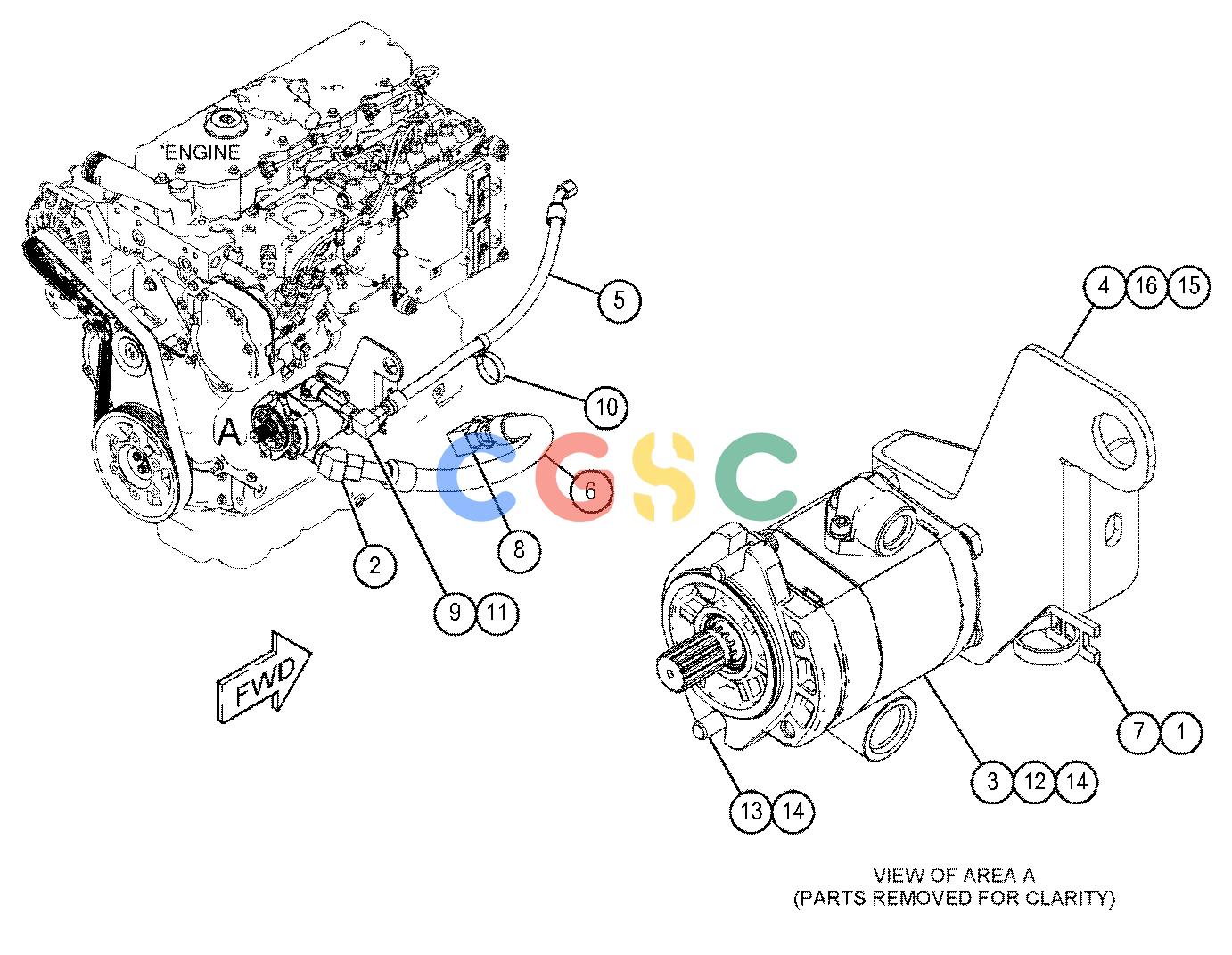

卡特零件查询（AP555F） 457-3798: PUMP & MTG GP-AUXILIARY
广数供应链运营团队, 17 02月, 2025，浏览：
570 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [1] | STRAP-CABLE | |
| 2. | 188-2008 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-7970 | [1] | ELBOW | |
| 3. | 433-7589Y | [1] | PUMP GP-GEAR | |
| 4. | 456-8965 | [1] | BRACKET | |
| 5. | 460-9629I | [1] | HOSE AS | |
| 6. | 460-9630I | [1] | HOSE AS | |
| 7. | 132-5789 | [1] | CLIP(LADDER) | |
| 8. | 148-8357 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9008 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 9. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 10. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 11. | 297-7927 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 123-1904 | [1] | CONNECTOR | |
| 12. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 13. | 434-0776M | [2] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| 14. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 16. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
