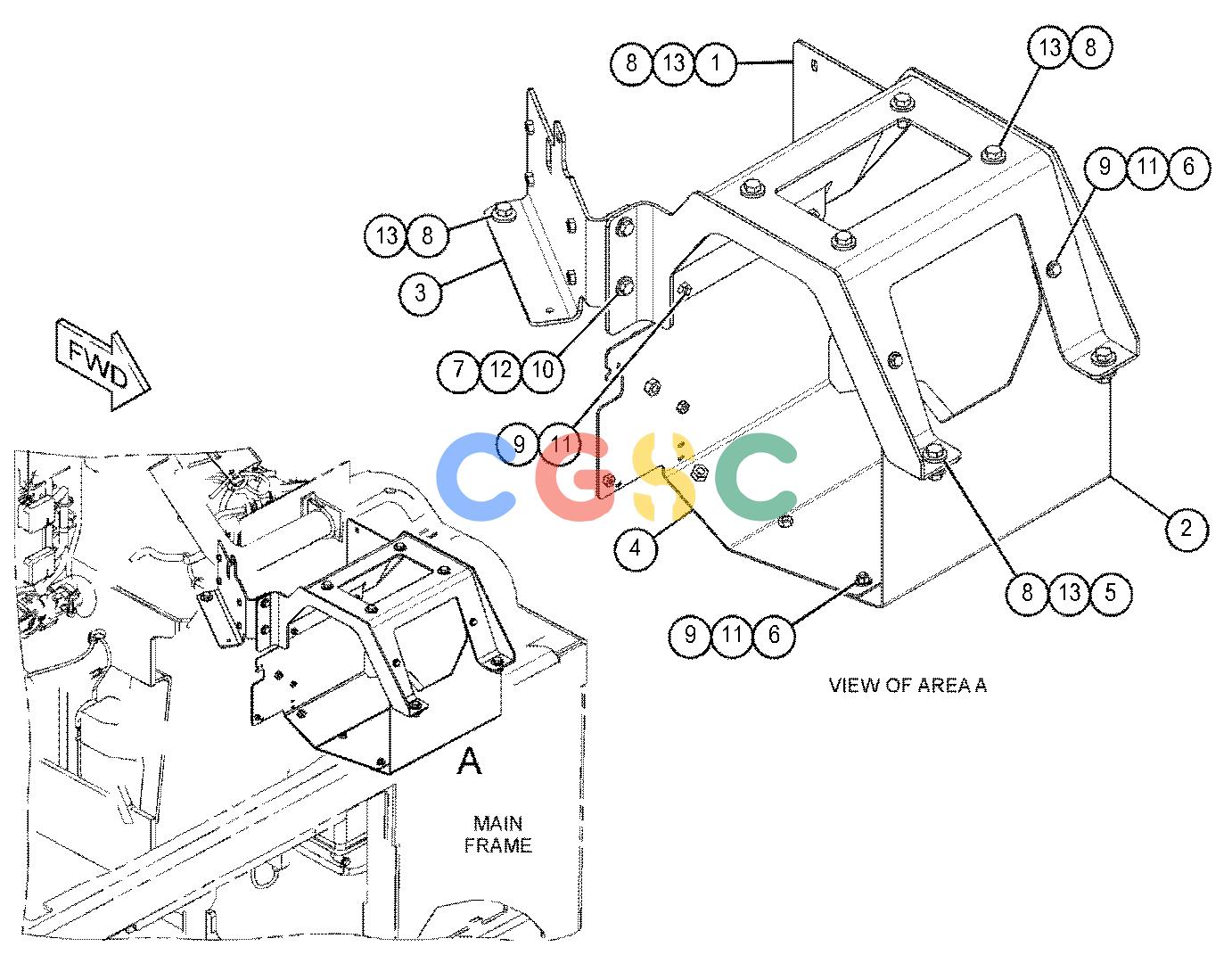

卡特零件查询（AP555F） 443-2086: FRAME GP-MOUNTING
广数供应链运营团队, 17 02月, 2025，浏览：
549 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 453-9408 | [1] | PLATE AS | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 2. | 453-9411 | [1] | PLATE | |
| 3. | 499-3571 | [1] | PLATE | |
| 4. | 482-0181 | [1] | PLATE AS | |
| 5. | 329-3356M | [2] | NUT(M12X1.75-THD) | |
| 6. | 344-5674M | [4] | NUT(M8X1.25-THD) | |
| 7. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 8. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 10. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 12. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 13. | 8T-4956M | [8] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
