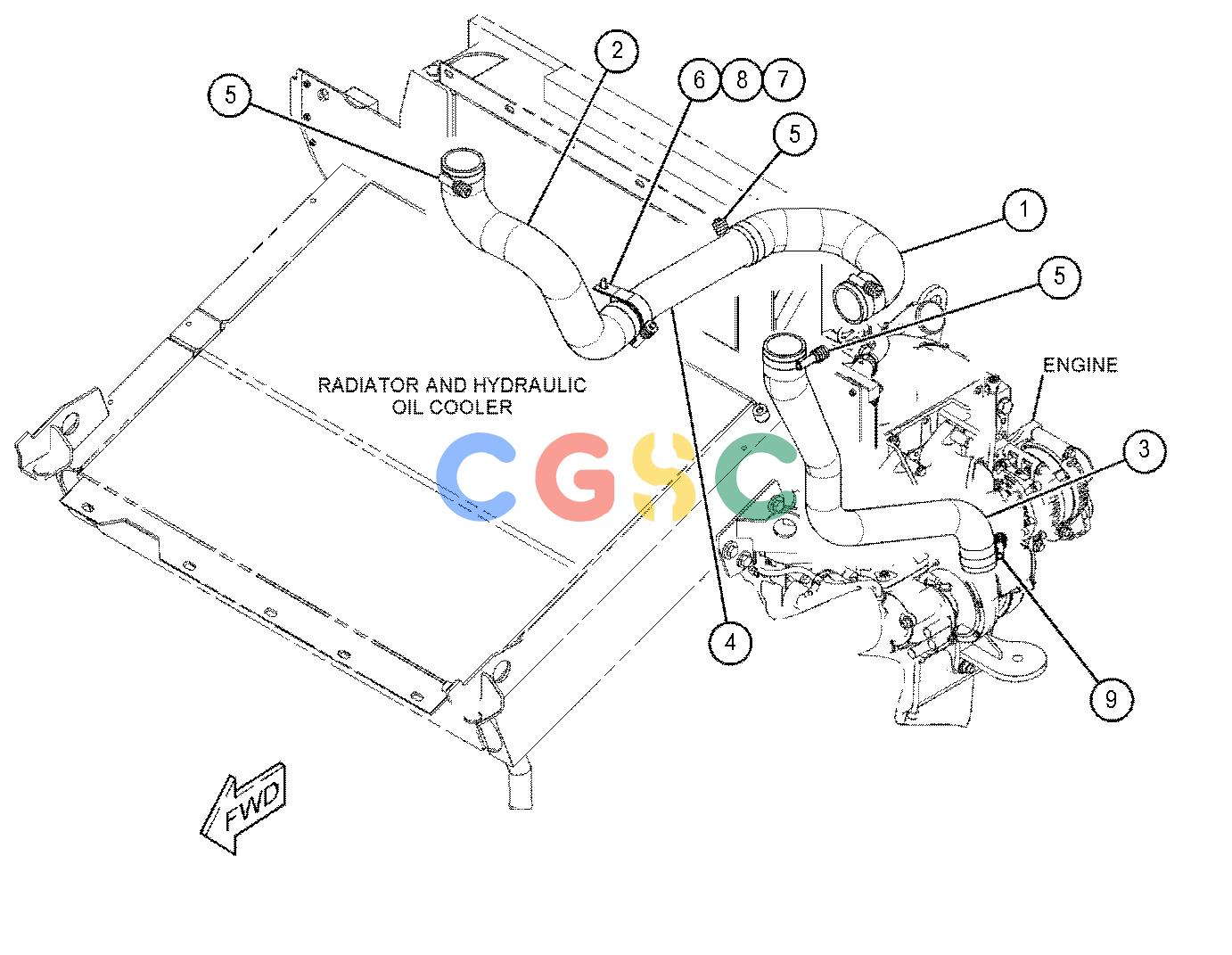

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 453-9388 | [1] | HOSE | |
| 2. | 453-9389 | [1] | HOSE | |
| 3. | 453-9390 | [1] | HOSE | |
| 4. | 453-9391 | [1] | TUBE | |
| 5. | 144-0367 | [5] | CLAMP-HOSE | |
| 6. | 3P-9847 | [1] | CLIP | |
| 7. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 9. | 8T-6703 | [1] | CLAMP-HOSE | |
| M | METRIC PART | |||
