卡特零件查询（AP555F） 443-2079: DRIVE GP-PUMP
广数供应链运营团队, 17 02月, 2025，浏览：
992 次

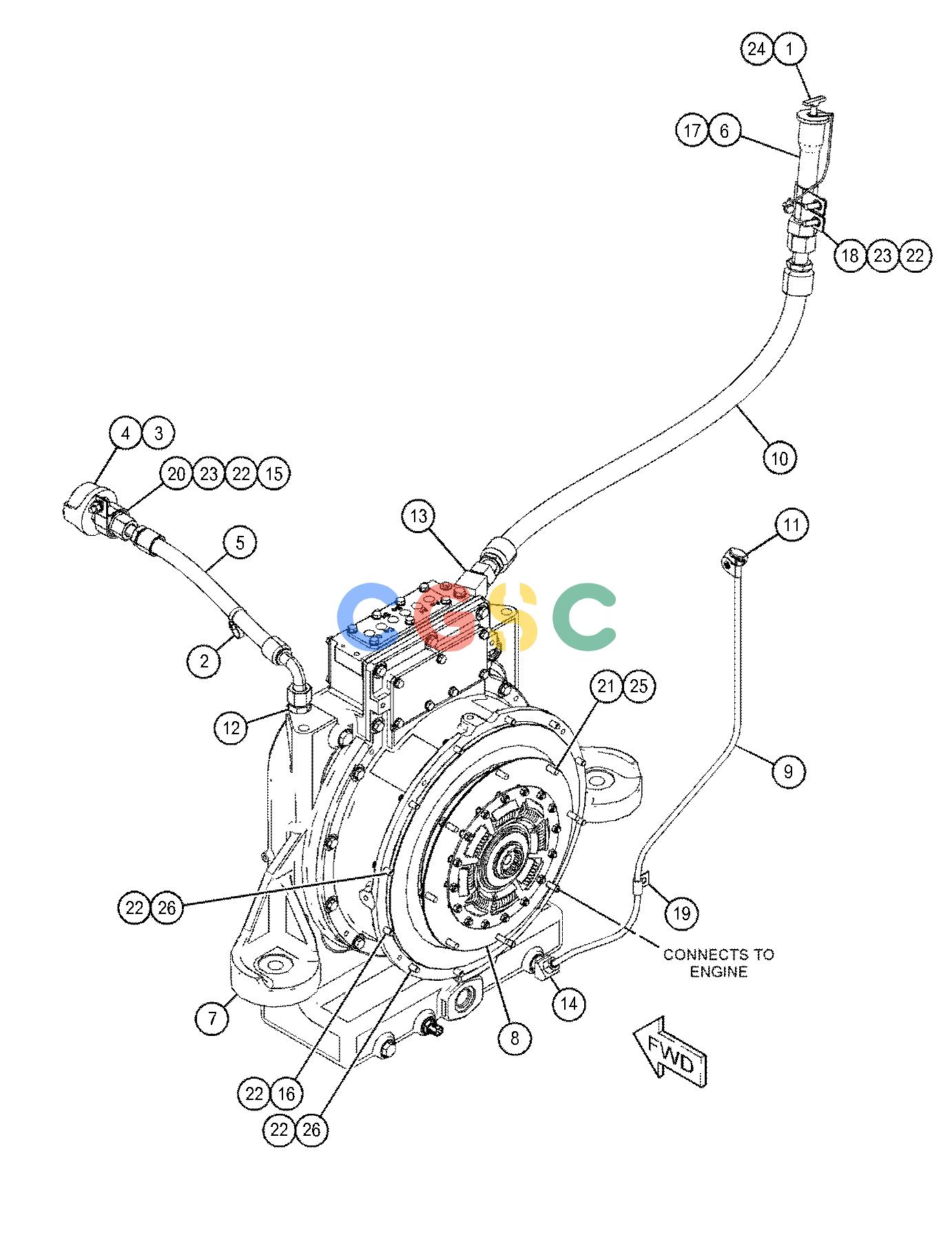

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6G-9333 | [1] | CAP-FILLER(PUMP DRIVE) | |
| 2. | 7K-1181 | [2] | STRAP-CABLE | |
| 3. | 185-2245 | [1] | ADAPTER AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 157-8510 | [1] | ADAPTER | |
| 4. | 258-2829 | [1] | BREATHER(PUMP DRIVE) | |
| 5. | 388-1499I | [1] | HOSE AS | |
| 6. | 431-9524 | [1] | TUBE AS | |
| 7. | 436-2164Y | [1] | GENERATOR GP-POWER | |
| 8. | 444-7024 | [1] | COUPLING AS | |
| 9. | 453-9449 | [1] | TUBE AS | |
| 10. | 453-9450I | [1] | HOSE AS | |
| 11. | 459-1670 | [1] | GAUGE AS-OIL LEVEL (DIPSTICK) | |
| 12. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 13. | 148-8362 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-6684 | [1] | ELBOW | |
| 14. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 15. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 16. | 434-0776M | [8] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| 17. | 5K-9090 | [1] | SEAL-O-RING | |
| 18. | 5N-2840 | [2] | CLIP | |
| 19. | 5P-9297 | [1] | CLIP(LOOP) | |
| 20. | 7D-1553 | [1] | CLIP | |
| 21. | 7X-3183 | [8] | BOLT(3/8-24X1-IN) | |
| 22. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 24. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 25. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 26. | 118-9573M | [4] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
