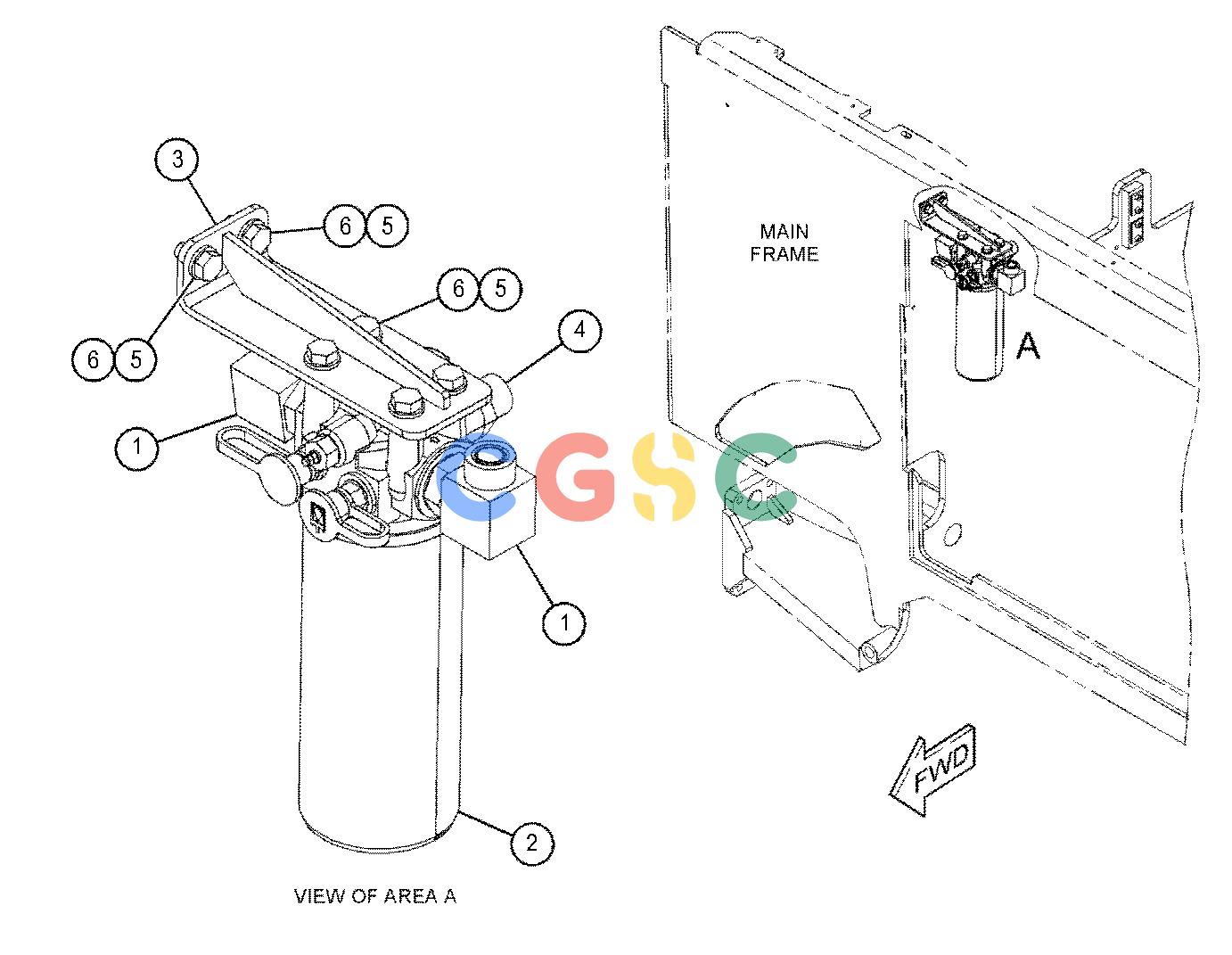

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 148-8347 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 3D-2824 | [1] | SEAL-O-RING | ||
| 6V-9007 | [1] | ELBOW | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 2. | 192-0717Y | [1] | FILTER GP-OIL(HYDRAULIC) | |
| 3. | 467-5673 | [1] | BRACKET AS | |
| 4. | 148-8341 | [1] | CONNECTOR AS | |
| 3D-2824 | [1] | SEAL-O-RING | ||
| 6V-8713 | [1] | CONNECTOR | ||
| 7J-9108 | [1] | SEAL-O-RING | ||
| 5. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
