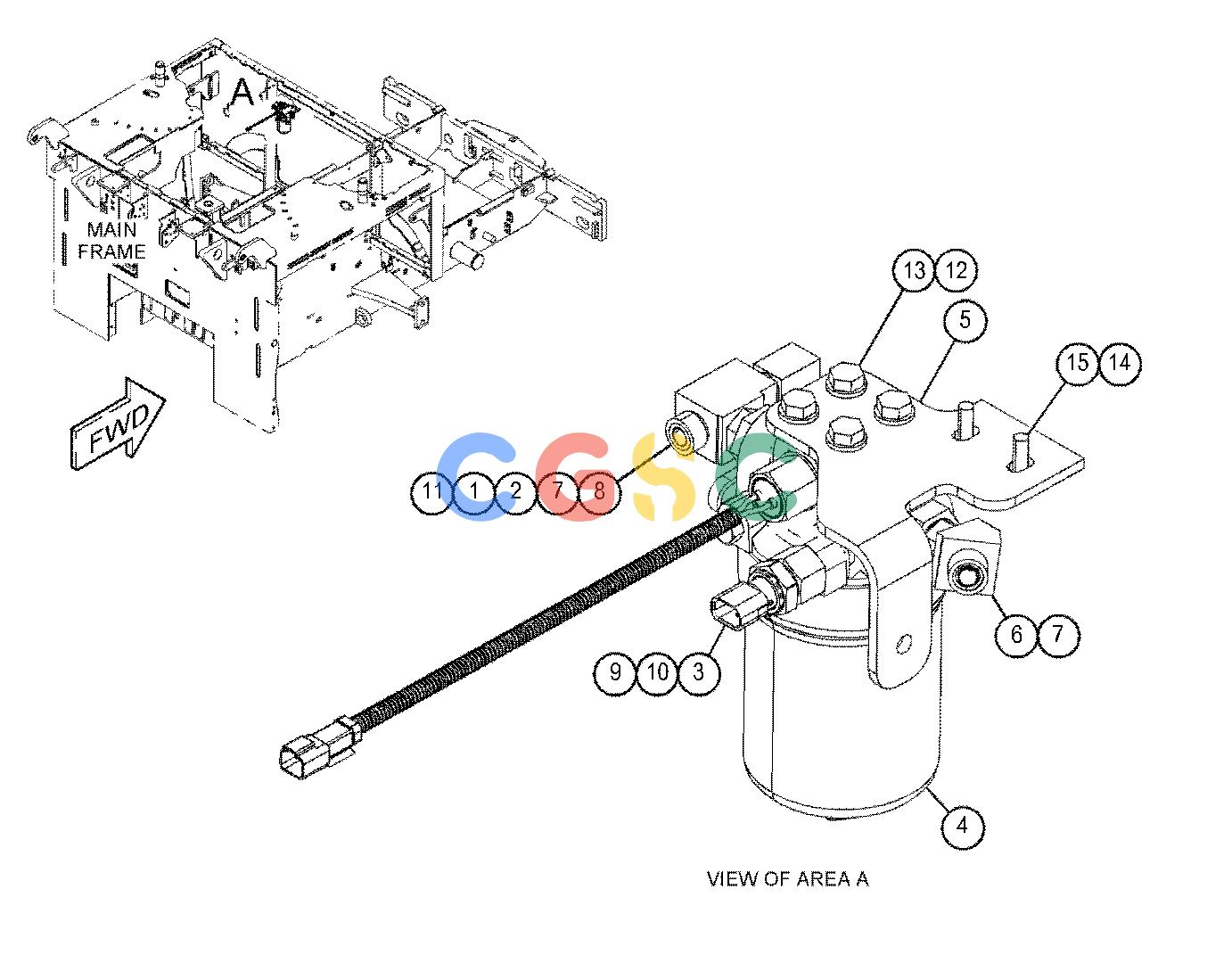

卡特零件查询（AP555F） 447-9836: FILTER & MTG GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING(DUAL FUNCTION) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 2. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 3. | 320-3061 | [1] | SENSOR GP-PRESSURE(HYDRAULIC OIL) | |
| 4. | 346-5576Y | [1] | FILTER GP-OIL(HYDRAULIC) | |
| 5. | 460-3158 | [1] | BRACKET | |
| 6. | 148-8354 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 7. | 155-7321 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 8. | 172-5761 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 126-8306 | [1] | TEE-O-RING | |
| 9. | 331-1136 | [1] | ADAPTER AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 331-1137 | [1] | ADAPTER | |
| 10. | 6V-6560 | [1] | SEAL-O-RING | |
| 11. | 8C-3447 | [1] | CAP-DUST | |
| 12. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
