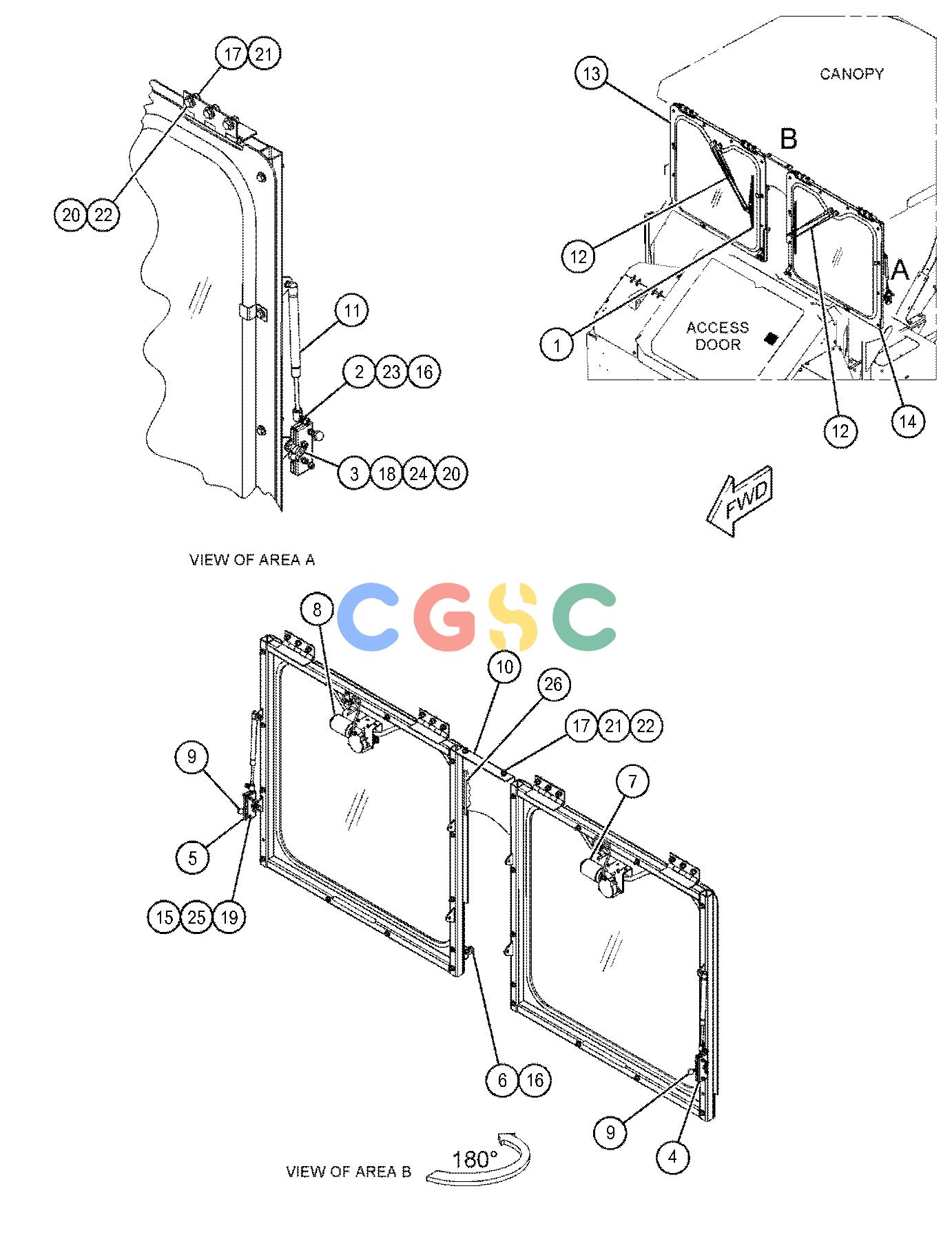

卡特零件查询（AP555F） 467-4314: WINDOW GP-FRONT
广数供应链运营团队, 17 02月, 2025，浏览：
368 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-6543 | [2] | BLADE AS-WIPER(503-MM) | |
| 2. | 8T-2444 | [4] | STUD-BALL | |
| 3. | 8Y-6377 | [2] | STRIKER | |
| 4. | 112-5344 | [1] | LATCH AS-DOOR | |
| 5. | 112-5345 | [1] | LATCH AS-DOOR | |
| 6. | 114-9284 | [2] | BUMPER | |
| 7. | 283-4738Y | [1] | MOTOR GP-WINDOW WIPER | |
| 8. | 283-4739Y | [1] | MOTOR GP-WINDOW WIPER | |
| 9. | 292-0618 | [2] | KNOB | |
| 10. | 361-7369 | [1] | PLATE | |
| 11. | 364-1373 | [2] | SPRING-GAS(ROD END) | |
| 12. | 370-7288 | [2] | ARM AS-WINDOW WIPER | |
| 13. | 434-0049Y | [1] | WINDOW GP | |
| 14. | 434-0052Y | [1] | WINDOW GP(FRONT, LH) | |
| 15. | 344-5673M | [8] | NUT(M6X1-THD) | |
| 16. | 344-5674M | [6] | NUT(M8X1.25-THD) | |
| 17. | 344-5675M | [14] | NUT(M10X1.5-THD) | |
| 18. | 5S-7379 | [2] | BOLT(3/8-16X0.875-IN) | |
| 19. | 7X-2533M | [8] | BOLT(M6X1X35-MM) | |
| 20. | 7X-7729B | [14] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4136M | [14] | BOLT(M10X1.5X25-MM) | |
| 23. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 25. | 9X-8256 | [16] | WASHER(6.6X12X2-MM THK) | |
| 26. | 128-2596D | | SEAL(0.6-M) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
