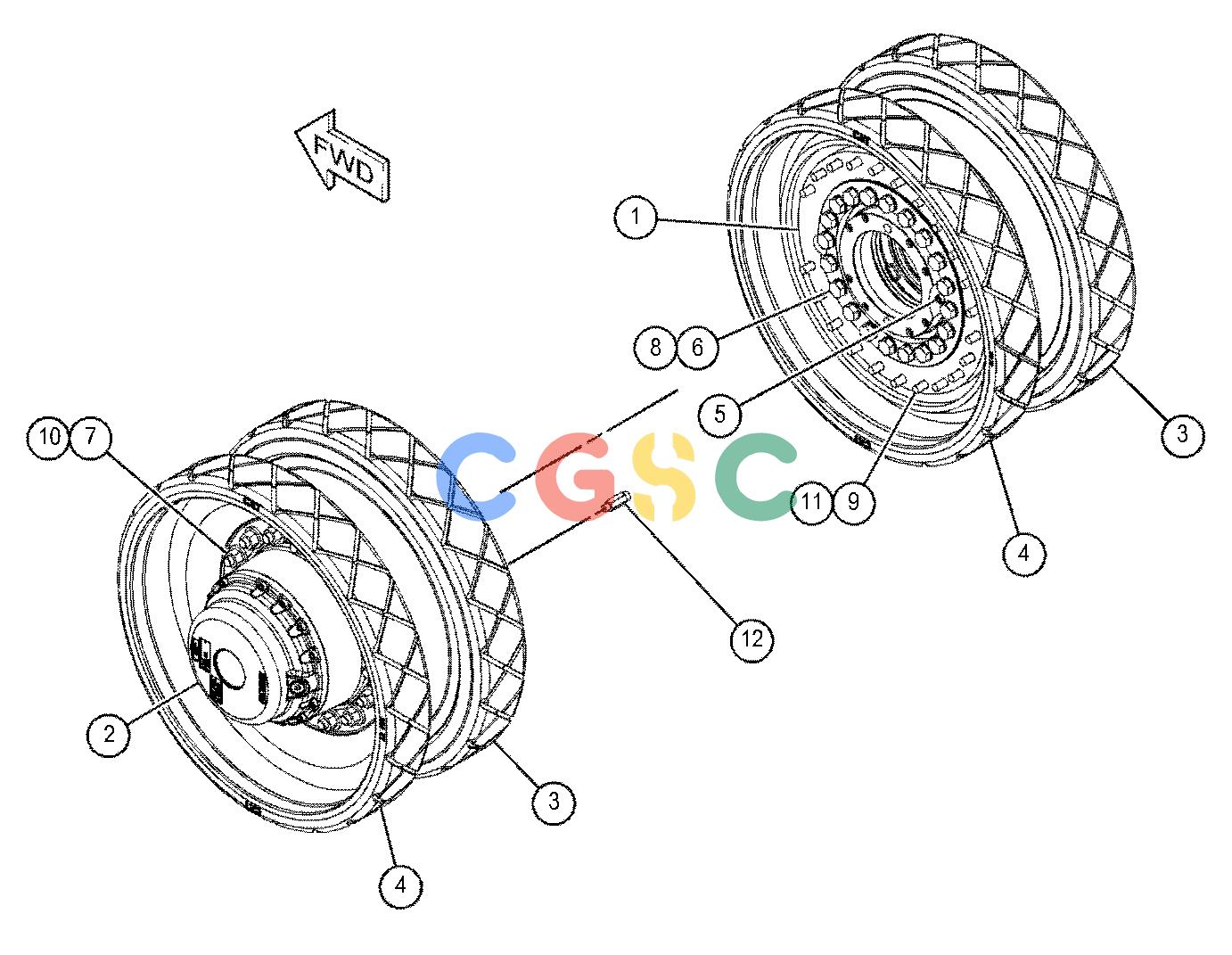

卡特零件查询（AP555F） 452-8200: DRIVE GP-FINAL
广数供应链运营团队, 17 02月, 2025，浏览：
725 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 452-8197 | [2] | PLATE-ADAPTER | |
| 2. | 452-8199Y | [2] | PLANETARY GP-FINAL DRIVE | |
| 3. | 453-9961 | [2] | WHEEL AS(OUTER) | |
| 4. | 453-9962 | [2] | WHEEL AS(INNER) | |
| 5. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 6. | 7X-2563M | [40] | BOLT(M20X2.5X60-MM) | |
| 7. | 355-3831M | [32] | NUT(M20X1.5-THD) | |
| 8. | 8T-4123 | [40] | WASHER(22X35X3.5-MM THK) | |
| 9. | 8T-4140M | [44] | BOLT(M16X2X60-MM) | |
| 10. | 8T-5439 | [32] | WASHER-HARD(21.5X45X6-MM THK) | |
| 11. | 9X-8257 | [44] | WASHER(17.5X30X3.5-MM THK) | |
| 12. | 164-9869 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2297 | [1] | CONNECTOR | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
