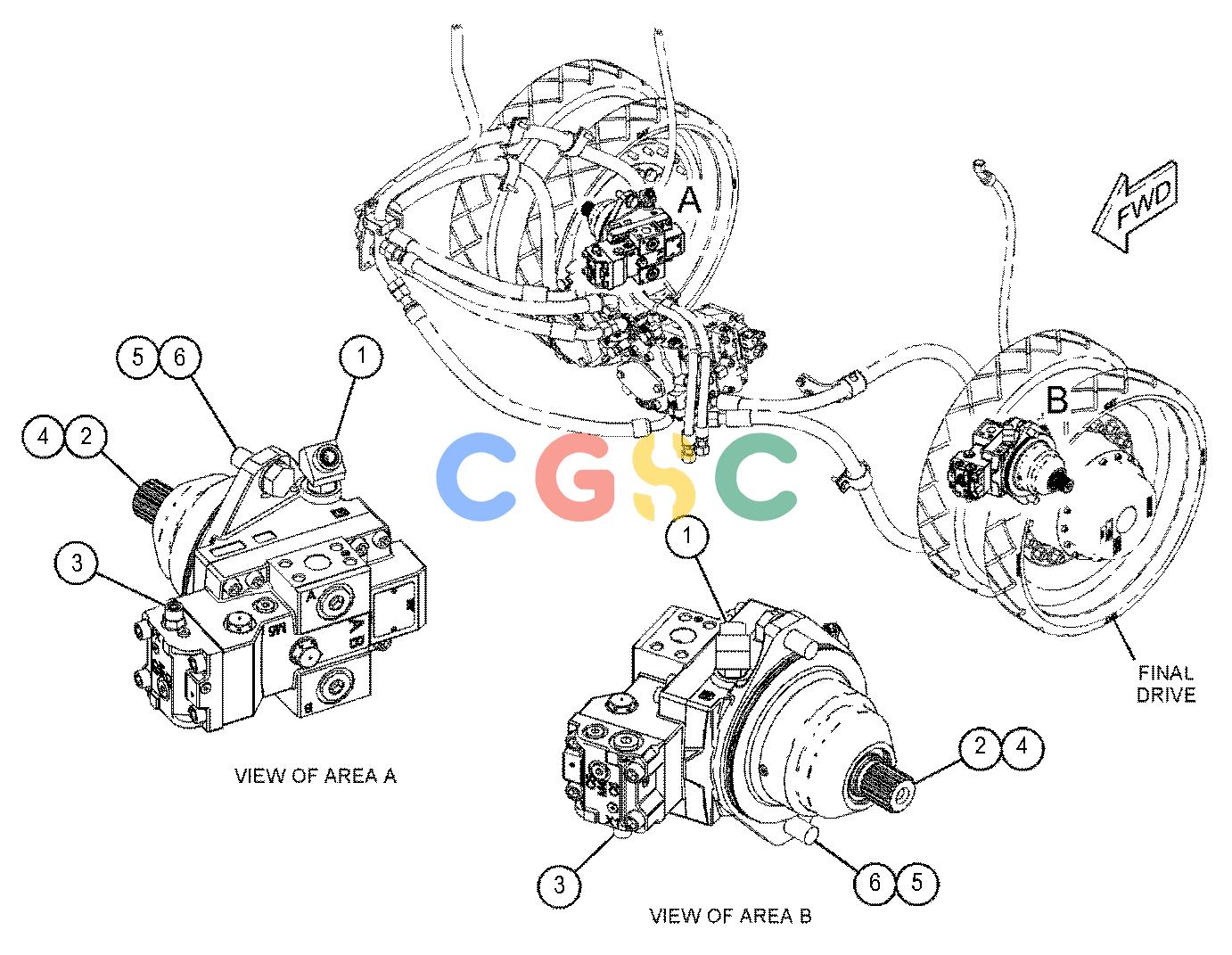

卡特零件查询（AP555F） 447-9875: LINES GP-PROPEL
广数供应链运营团队, 17 02月, 2025，浏览：
132 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7951 | [1] | PLATE | |
| 2. | 240-2553 | [2] | NUT-SPECIAL(M6X1-THD) | |
| 3. | 464-4688I | [1] | HOSE AS | |
| 4. | 464-4689I | [1] | HOSE AS | |
| 5. | 464-4690I | [1] | HOSE AS | |
| 6. | 464-4691I | [1] | HOSE AS | |
| 7. | 464-4692I | [1] | HOSE AS | |
| 8. | 464-4693I | [1] | HOSE AS | |
| 9. | 464-4695I | [1] | HOSE AS | |
| 10. | 464-4696I | [1] | HOSE AS | |
| 11. | 464-4697I | [1] | HOSE AS | |
| 12. | 464-4698I | [1] | HOSE AS | |
| 13. | 464-4699 | [1] | TUBE AS | |
| 14. | 464-4700I | [1] | HOSE AS | |
| 15. | 464-4701 | [1] | PLATE | |
| 16. | 464-4702 | [1] | PLATE AS | |
| | 6R-3841 | [8] | RAIL-CLAMP | |
| 17. | 467-5671I | [1] | HOSE AS | |
| 18. | 470-0909 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | |
| 19. | 155-6344 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8991 | [1] | ELBOW | |
| 20. | 177-1061 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 142-0038 | [1] | ELBOW | |
| 21. | 178-3620 | [2] | STRAP-DUAL CLAMP | |
| 22. | 1P-3703 | [4] | SEAL-RECTANGULAR | |
| 23. | 5K-9090 | [2] | SEAL-O-RING | |
| 24. | 5P-7468 | [6] | CLIP(SLOT) | |
| 25. | 5P-7469 | [6] | CLIP(TAB) | |
| 26. | 5P-8444 | [6] | GROMMET(37-MM ID) | |
| 27. | 6V-0400 | [8] | FLANGE-HALF | |
| 28. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 29. | 7R-7940 | [2] | CLAMP | |
| 30. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 31. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 32. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 34. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 35. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 36. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 37. | 8T-4194M | [16] | BOLT(M12X1.75X50-MM) | |
| 38. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 39. | 8T-4223 | [22] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 40. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
